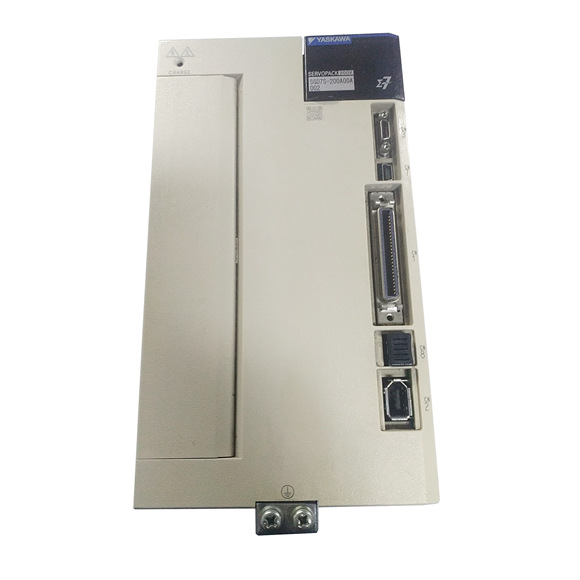

The Yaskawa Sigma-7 SERVOPACK SGD7S-200A10A002 is a state-of-the-art 3 kW AC servo drive engineered for demanding automation applications. Part of the renowned Sigma-7 series, this drive offers exceptional dynamic performance, advanced tuning capabilities, and robust reliability. The SGD7S-200A10A002 operates on a 200 VAC to 240 VAC input (50/60 Hz) and delivers a continuous output current of 19.6 Arms, with an instantaneous maximum of 56 Arms, making it ideal for high-torque, high-speed motion tasks. It features a built-in regenerative resistor (16 W power loss) and supports overvoltage Category III, ensuring safe operation in industrial power systems. The drive also includes advanced safety functions like Safe Torque Off (STO) and is fully compatible with Yaskawa Sigma-7 motors. With a total power loss of 151.8 W and a control circuit power loss of 22 W, this model is designed for energy efficiency. Whether for robotics, CNC machinery, or packaging lines, the SGD7S-200A10A002 guarantees precise and reliable performance.
| Specification |
SGD7S-200A10A002 (3 kW) |
Other 200V AC Models (Example: SGD7S-120A) |
Other 200V DC Models (Example: SGD7S-180A) |
| Maximum Applicable Motor Capacity [kW] |
3.0 |
1.5 |
2.0 |
| Continuous Output Current [Arms] |
19.6 |
11.6 |
18.5 |
| Instantaneous Maximum Output Current [Arms] |
56 |
28 |
42 |
| Control Power Supply |
200 VAC to 240 VAC, -15% to +10%, 50/60 Hz |
200 VAC to 240 VAC, -15% to +10%, 50/60 Hz |
270 VDC to 324 VDC, -15% to +10% |
| Power Supply Capacity [kVA] |
5.9 |
3.2 |
4.0 |
| Main Circuit Power Loss [W] |
113.8 |
65.8 |
111.9 |
| Control Circuit Power Loss [W] |
22 |
22 |
22 |
| Built-in Regenerative Resistor Power Loss [W] |
16 |
10 |
16 |
| Total Power Loss [W] |
151.8 |
97.8 |
149.9 |
| Overvoltage Category |
III |
III |
III |
| Minimum Allowable External Resistance [W] |
40 |
40 |
40 |
