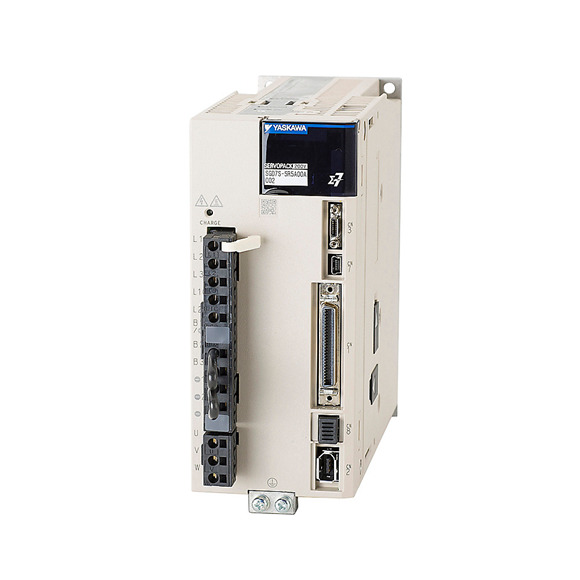

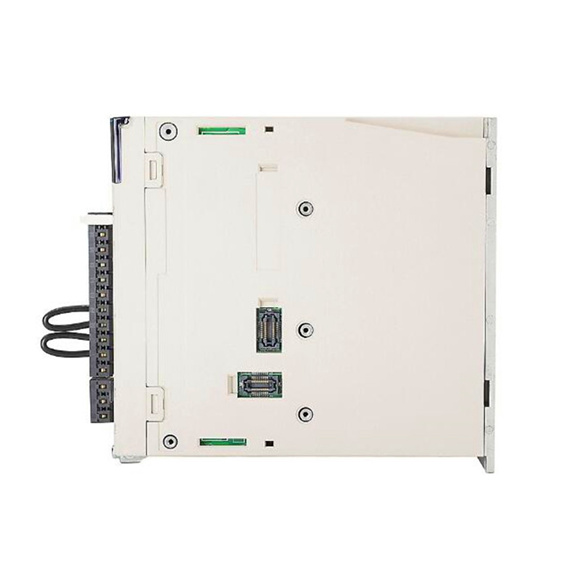

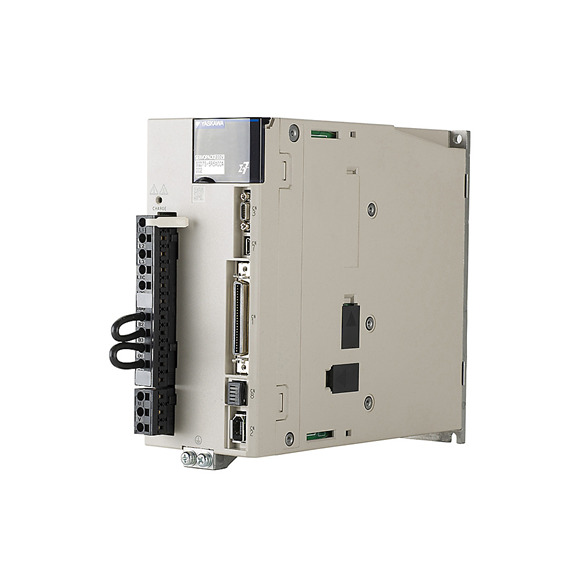

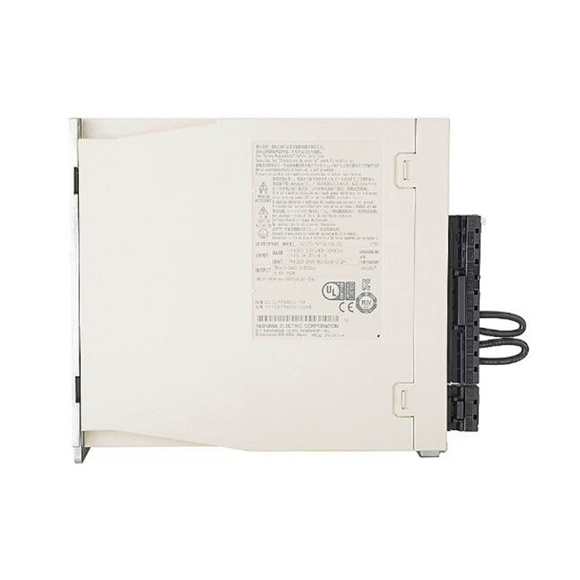

Yaskawa SGD7S-5R5A00A002 Servo Drive

Series#: Yaskawa

Product Details

Yaskawa Sigma-7 SERVOPACK SGD7S-5R5A00A002, 750W high-performance servo drive for precision motion control.
IGBT-based PWM control with sine wave current drive for smooth, efficient motor operation.
Supports 20-bit or 24-bit serial encoders (incremental/absolute) for high-resolution feedback.
Wide speed control range of 1:5000, ensuring stable torque at low speeds.
Rugged IP20 design, vibration resistance up to 4.9 m/s², and operating temperature from -5°C to 55°C.
Compliant with UL, CSA, EN, and CE standards for global industrial applications.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Yaskawa Sigma-7 SERVOPACK SGD7S-5R5A00A002 is a state-of-the-art 750W servo drive engineered for demanding automation tasks. This model delivers exceptional precision and reliability, featuring advanced IGBT-based PWM control and sine wave current drive. It supports a wide range of encoder types, including 20-bit and 24-bit serial encoders, ensuring accurate position and speed feedback. With a speed control range of 1:5000 and minimal speed fluctuation, the SGD7S-5R5A00A002 excels in applications requiring smooth low-speed operation and high dynamic response. Its robust construction meets IP20 protection, withstands vibration up to 4.9 m/s², and operates reliably in temperatures from -5°C to 55°C. This SERVOPACK is fully compliant with international standards such as UL, CSA, EN 61800-5-1, and EN 55011, making it ideal for global industrial environments.

Parameter	SGD7S-5R5A00A002 (750W Model)
Maximum Applicable Motor Capacity [kW]	0.75
Continuous Output Current [Arms]	5.5
Instantaneous Maximum Output Current [Arms]	16.9
Main Circuit Power Supply	270 VDC to 324 VDC, -15% to +10%
Main Circuit Input Current [Arms]	9.7
Control Power Supply	270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]	3.2
Main Circuit Power Loss [W]	76
Control Circuit Power Loss [W]	24
Total Power Loss [W]	100
Control Method	IGBT-based PWM control, sine wave current drive
Feedback with Rotary Servo Motor	Serial encoder: 20 bits or 24 bits (incremental/absolute); 22 bits (absolute encoder)
Feedback with Linear Servo Motor	Absolute linear encoder or incremental linear encoder (resolution depends on encoder/Serial Converter Unit)
Surrounding Air Temperature	-5°C to 55°C (derating up to 60°C possible)
Storage Temperature	-20°C to 85°C
Surrounding Air Humidity	95% RH max (no freezing or condensation)
Storage Humidity	95% RH max (no freezing or condensation)
Vibration Resistance	4.9 m/s²
Shock Resistance	19.6 m/s²
Degree of Protection	IP20
Pollution Degree	2 (no corrosive/flammable gases, water, oil, chemicals, dust, salts, or iron dust)
Altitude	1,000 m or less (derating up to 2,000 m possible)
Applicable Standards	UL 61800-5-1, CSA C22.2 No.274, EN50178, EN 61800-5-1, EN 55011 Group 1 Class A, EN 61000-6-2, EN 61000-6-4, EN 61800-3
Mounting	Base-mounted or rack-mounted
Speed Control Range	1:5000 (at rated torque, lower limit must not cause motor stop)
Coefficient of Speed Fluctuation	±0.01% of rated speed max (for load fluctuation 0% to 100%); 0% for voltage fluctuation ±10%; ±0.1% for temperature fluctuation 25°C ±25°C
Torque Control Precision (Repeatability)	±1%
Soft Start Time Setting	0 s to 10 s (separate for acceleration and deceleration)
