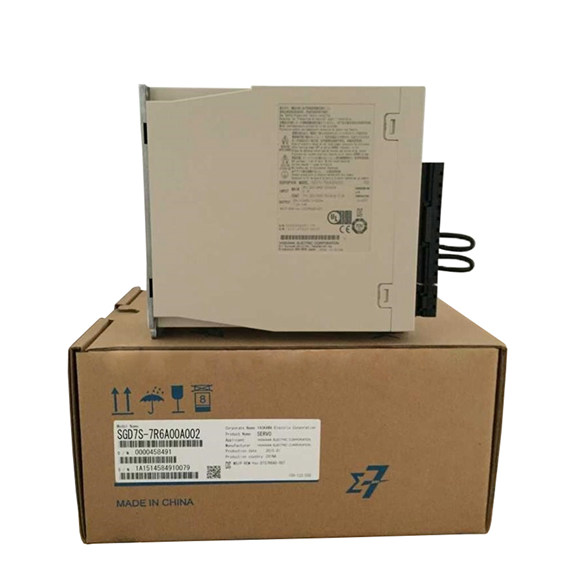

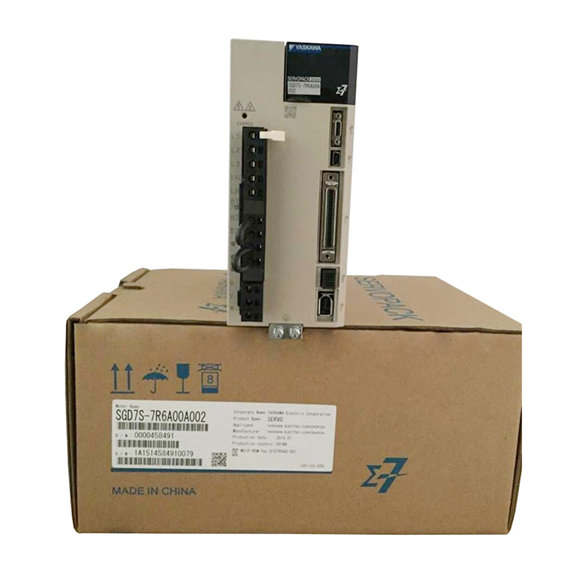

Yaskawa SGD7S-7R6A30A002 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SIGMA-7 SERVOPACKS 1KW SGD7S-7R6A30A002 – Precision servo drive for high-performance motion control applications.
Continuous output current of 7.6 Arms, ideal for 1 kW motor capacity.
Instantaneous peak current up to 17 Arms for demanding dynamic loads.
Wide 200-240 VAC input range with robust overvoltage Category III protection.
Built-in regenerative resistor support and low total power loss of 78.6 W.
Compact design with advanced Sigma-7 tuning algorithms for reduced settling time.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The YASKAWA SIGMA-7 SERVOPACKS 1KW SGD7S-7R6A30A002 is a cutting-edge servo drive engineered for precision motion control in industrial automation. Part of the acclaimed Sigma-7 series, this model delivers a continuous output current of 7.6 Arms and a peak instantaneous current of 17 Arms, making it suitable for 1 kW motor applications. It operates on a 200-240 VAC power supply with a power capacity of 2.3 kVA, ensuring reliable performance in a variety of environments. The drive features built-in regenerative resistor capabilities and a total power loss of 78.6 W, optimizing energy efficiency. With overvoltage Category III compliance and advanced control algorithms, the SGD7S-7R6A30A002 ensures smooth, high-speed motion with minimal vibration. Below are the detailed technical specifications for this and related models.

Model (100VAC Series)	R70F	R90F	2R1F	2R8F
Maximum Applicable Motor Capacity [kW]	0.05	0.1	0.2	0.4
Continuous Output Current [Arms]	0.66	0.91	2.1	2.8
Instantaneous Maximum Output Current [Arms]	2.1	3.2	6.5	9.3
Main Circuit Power Supply	100 VAC to 120 VAC, -15% to +10%, 50/60 Hz
Main Circuit Input Current [Arms]	1.5	2.5	5	10
Control Power Supply	100 VAC to 120 VAC, -15% to +10%, 50/60 Hz
Power Supply Capacity [kVA]	0.2	0.3	0.6	1.4
Main Circuit Power Loss [W]	5.3	7.8	14.2	26.2
Control Circuit Power Loss [W]	12	12	12	12
Total Power Loss [W]	17.3	19.8	26.2	38.2
Regenerative Resistor Minimum Allowable External Resistance [W]	40
Overvoltage Category	III

Model (200VAC Series - Standard Models)	R70A	R90A	1R6A	2R8A	3R8A	5R5A	7R6A	120A	180A	200A	330A
Maximum Applicable Motor Capacity [kW]	0.05	0.1	0.2	0.4	0.5	0.75	1	1.5	2	3	5
Continuous Output Current [Arms]	0.66	0.91	1.6	2.8	3.8	5.5	7.6	11.6	18.5	19.6	32.9
Instantaneous Maximum Output Current [Arms]	2.1	3.2	5.9	9.3	11	16.9	17	28	42	56	84
Power Supply	200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Input Current [Arms]	0.4	0.8	1.3	2.5	3	4.1	5.7	7.3	10	15	25
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Power Supply Capacity [kVA]	0.2	0.3	0.5	1	1.3	1.6	2.3	3.2	4	5.9	7.5
Main Circuit Power Loss [W]	5.1	7.3	13.5	24	20.1	43.8	53.6	65.8	111.9	113.8	263.7
Control Circuit Power Loss [W]	17	17	17	17	17	17	17	22	22	22	27
Built-in Regenerative Resistor Power Loss [W]	–	–	–	–	8	8	8	10	16	16	36
Total Power Loss [W]	22.1	24.3	30.5	41	45.1	68.8	78.6	97.8	149.9	151.8	326.7

Note: Specifications are based on Yaskawa Sigma-7 standard reference data. For specific model variants, always verify with the official documentation.
