Mitsubishi GT2104-RTBD Touch Screen HMI

Series#: Mitsubishi

Product Details

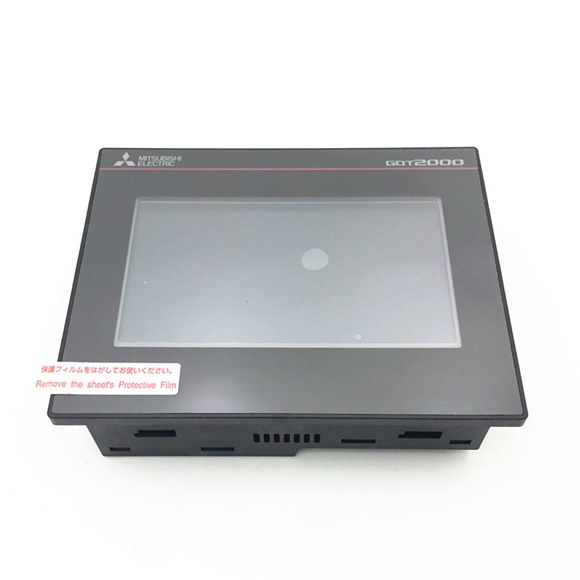

Model: 4.3″ Mitsubishi Touch screen HMIs GT2104-RTBD – a compact, high-performance HMI for industrial automation.
Features a 4.3-inch TFT color LCD with 480 x 272 resolution for crisp, clear visual monitoring.
Operates on 24VDC power supply with low power consumption (max 4.4W) and robust noise resistance.
Engineered for reliability with 500VAC withstand voltage and 10MΩ insulation resistance.
Ideal for machine control, process visualization, and data entry in demanding environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 4.3″ Mitsubishi Touch screen HMIs GT2104-RTBD is a next-generation operator interface designed for seamless integration into modern industrial control systems. This compact HMI delivers vibrant color visualization through its TFT LCD display, ensuring operators have real-time access to critical process data. With a wide input voltage range and stringent electrical immunity, the GT2104-RTBD excels in harsh factory floor conditions, providing reliable performance for years to come. Its straightforward 24VDC power requirement and low power draw make it an energy-efficient choice for distributed control panels.

Parameter	Specification
Model Number	GT2104-RTBD
Screen Size	4.3″
Resolution	480 x 272 dots
Display Type	TFT Color LCD
Frame Color	Black
Input Power Supply Voltage	24VDC (+10%, -15%)
Power Consumption (Max Load)	4.4W or less
Power Consumption (Stand Alone, Backlight Off)	2.9W
Inrush Current	18A or less (2ms, 25°C, at maximum load)
Permissible Instantaneous Failure Time	Within 5ms
Noise Resistance	Noise voltage 1000Vp-p, noise width 1μs by noise simulator with noise frequency 30 to 100Hz
Withstand Voltage	500VAC for 1 minute between power supply terminal and ground
Insulation Resistance	500VDC across power supply terminals and earth, 10MΩ or more by an insulation resistance tester

Electrical Protection: Designed with overcurrent and surge immunity, ensuring stable operation even under fluctuating line conditions.
Environmental Tolerance: Supports a wide ambient temperature range and high noise rejection (1000Vp-p), making it suitable for heavy industrial settings.

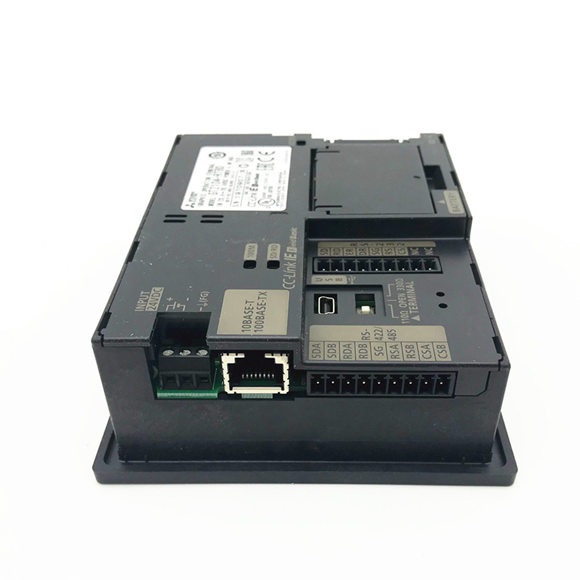

Mounting Flexibility: Panel-mount design with a black frame, allowing easy integration into existing control cabinets.
Connectivity: Standard 24VDC power input with low inrush current, reducing stress on power supply circuits during startup.
Maintenance-Free: Solid-state design with no moving parts, minimizing downtime and extending service life.
