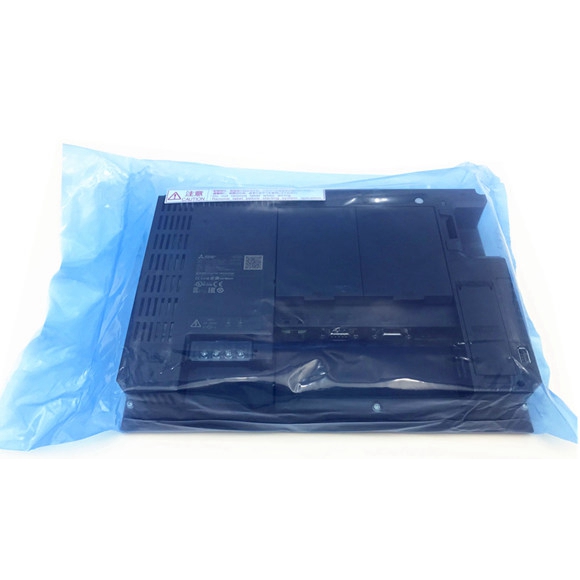

Mitsubishi GT2308-VTBA Touch Screen HMI

Series#: Mitsubishi

Product Details

High-performance 8.4″ Mitsubishi touch screen HMI models: GT2308-VTBA and GT2308-VTBD.
VGA resolution (640 x 480) with a bright TFT color LCD for clear process visualization.
Dual power supply options: AC (100-240VAC) for GT2308-VTBA and DC (24VDC) for GT2308-VTBD.
Rugged IP67F front panel protection and IP2X rear enclosure for harsh industrial environments.
LED backlight with 50,000+ hour lifespan and 16-level intensity adjustment.
Compact dimensions (241 x 194 x 56 mm) with a panel cutout of only 227 x 176 mm.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi GT2308-VTBA and GT2308-VTBD are 8.4-inch touch screen HMIs designed for reliable operator interface in demanding automation systems. Featuring a VGA TFT color display, these units deliver crisp visuals and responsive touch control. The GT2308-VTBA operates on 100-240VAC, while the GT2308-VTBD uses 24VDC, offering flexibility for various power architectures. With a robust IP67F front and IP2X rear construction, they withstand dust, moisture, and vibration. Backed by 9MB of user memory and GT Works3 software compatibility, these HMIs ensure seamless integration and long-term performance.

Parameter	Specification
Model Number	GT2308-VTBA / GT2308-VTBD
Screen Size	8.4″
Resolution (Dots)	640 x 480 (VGA)
Display Type	TFT Color LCD
Frame Color	Black
Power Supply (GT2308-VTBA)	100-240VAC (+10%, -15%), 50/60Hz ±5%
Power Supply (GT2308-VTBD)	24VDC (+25%, -20%)
Maximum Load (GT2308-VTBA)	11W or less
Maximum Load (GT2308-VTBD)	11W or less
Stand Alone (GT2308-VTBA)	9W
Stand Alone (GT2308-VTBD)	8W
Stand Alone with Backlight Off (GT2308-VTBA)	6W
Stand Alone with Backlight Off (GT2308-VTBD)	6W
Inrush Current (GT2308-VTBA)	40A or less (4ms, 25°C, max load)
Inrush Current (GT2308-VTBD)	40A or less (2ms, 25°C, max load)
Permissible Instantaneous Failure Time (GT2308-VTBA)	Within 20ms (100VAC or more)
Permissible Instantaneous Failure Time (GT2308-VTBD)	Within 10ms
Noise Resistance (GT2308-VTBA)	Noise voltage 1500Vp-p, width 1μs, 25-60Hz
Noise Resistance (GT2308-VTBD)	Noise voltage 500Vp-p, width 1μs, 25-60Hz
Withstand Voltage (GT2308-VTBA)	1500VAC for 1 minute between power terminal and ground
Withstand Voltage (GT2308-VTBD)	350VAC for 1 minute between power terminal and ground
Insulation Resistance	10MΩ or higher (500VDC between power terminal and ground)
Applicable Wire Size	0.75 to 2 mm²
Clamp Terminal	M3 screw: RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Tightening Torque (Terminal Screws)	0.5 to 0.8 N·m
Display Type (Detailed)	TFT Color LCD
Display Size (W x H) mm	170.9 x 128.2
Number of Characters	16-dot font: 40 chars x 30 lines (2-byte); 12-dot font: 53 chars x 40 lines (2-byte)
Display Colors	65536 colors
Intensity Adjustment	16-level adjustment
Backlight Type	LED (not replaceable)
Backlight Life	Approx. 50000 hours (50% intensity at 25°C)
Touch Panel Type	Analog resistive film
Key Size (Dots)	Minimum 2 x 2 dots (per key)
Simultaneous Press	Not available (1 point only)
Touch Panel Life	1 million times or more (0.98N or less)
Panel Color	Black
Memory (User Memory)	9MB ROM (storage) + 9MB RAM (operation)
Life (No. of Writings)	100,000 times
Internal Clock Accuracy	±90 sec/month (25°C)
Buzzer Output	Single tone (adjustable tone and length)
Power LED	2 colors (blue, orange)
Protective Construction	Front: IP67F; In control panel: IP2X
External Dimensions (W x H x D) mm	241 x 194 x 56
Panel Cutout (W x H) mm	227 x 176
Weight (Excluding Mounting Brackets)	1.5 kg
Applicable Software Package	GT Works3 Version 1.100E or later

Display Performance: 8.4″ TFT color LCD with 640x480 VGA resolution and 65536-color palette ensures crisp, high-contrast graphics.
Touch Interface: Analog resistive film touch panel supports precise single-point operation with a life of over 1 million actuations.
Power & Protection: Dual power variants (AC/DC) with IP67F front protection and IP2X rear; inrush current limited to 40A for safe startup.
Memory & Connectivity: 9MB user memory (ROM + RAM) for extensive project storage; compatible with GT Works3 software for easy configuration.
Environmental Resilience: Withstands noise up to 1500Vp-p (AC model) and 500Vp-p (DC model); insulation resistance exceeds 10MΩ.
Mechanical Fit: Compact 241x194x56 mm chassis with 227x176 mm panel cutout and 1.5 kg weight for easy installation.
