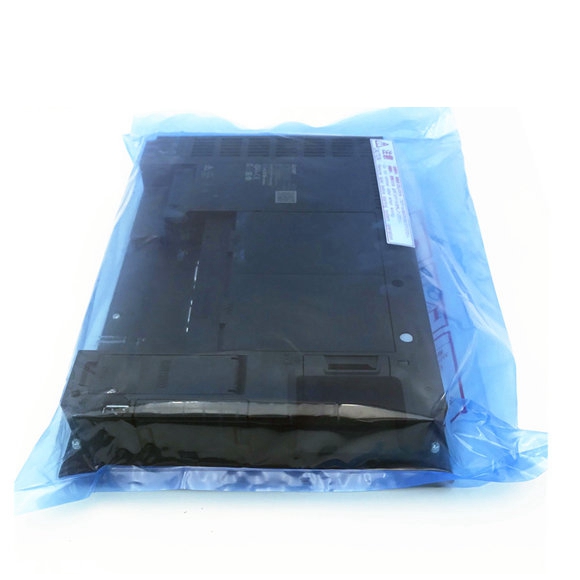

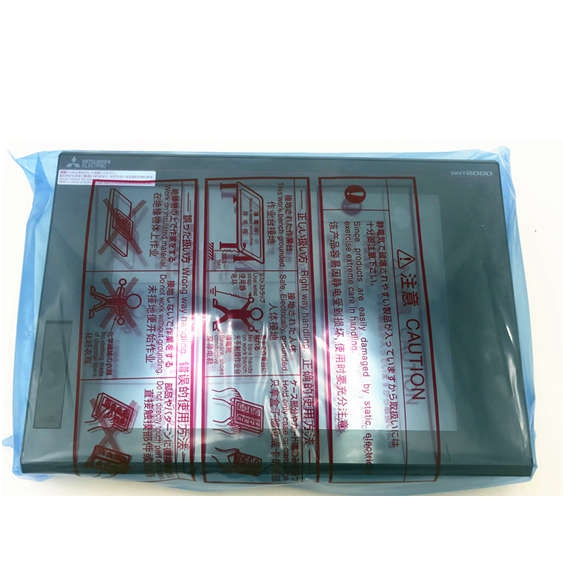

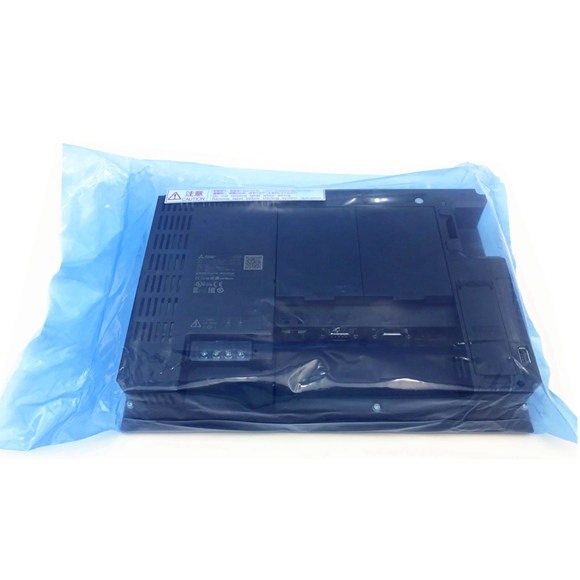

The 12″ Mitsubishi Touch screen HMIs GT2512F-STNA and GT2512F-STND are cutting-edge operator terminals from the GOT2000 series, engineered for demanding industrial environments. These units combine a high-visibility 12.1-inch TFT LCD with SVGA resolution and a durable analog resistive touch panel, ensuring intuitive control and long service life. With a comprehensive suite of built-in interfaces including Ethernet, multiple serial ports, USB host/device, and SD card support, these HMIs offer seamless integration with PLCs, drives, and other automation components. The integrated human sensor enhances energy efficiency and operator safety, while the IP67F front protection guarantees reliable performance in harsh conditions.
| Parameter |
Specification (GT2512F-STNA & GT2512F-STND) |
| Display Type |
TFT Color LCD |
| Screen Size |
12.1 inches |
| Resolution |
800 × 600 dots (SVGA) |
| Display Size (W × H) |
246 × 184.5 mm |
| Display Colors |
65536 colors |
| Intensity Adjustment |
32 levels |
| Backlight |
LED (non-replaceable), approx. 60,000 hours lifetime |
| Touch Panel |
Analog resistive film; minimum key size 2×2 dots; max 2 simultaneous presses; 1 million+ operations |
| Panel Color |
Black (STNA) / White (STND) |
| Human Sensor |
Detection distance: 1m; temperature difference ≥4°C |
| User Memory |
ROM: 32MB, RAM: 80MB |
| Internal Clock Accuracy |
±90 sec/month @ 25°C |
| Battery |
GT11-50BAT lithium; approx. 5-year life @ 25°C |
| RS-232 |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
2 channels (Type-A), High-Speed 480Mbps |
| USB (Device) |
1 channel (Mini-B), High-Speed 480Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option units |
| Sound Output |
3.5mm jack (single tone buzzer, adjustable) |
| Power LED |
2 colors: blue, orange |
| Protection Rating |
Front: IP67F; rear panel: IP2X |
| External Dimensions (W×H×D) |
311 × 237 × 54 mm (N type) |
| Panel Cutout (W×H) |
269 × 214 mm (N type) |
| Weight (without brackets) |
2.4 kg |
| Software Package |
GT Works3 V1.112S or later |
- Display Performance: 65536-color TFT with LED backlight ensures vibrant, long-lasting visuals; 32-level brightness adjustment for optimal viewing in any lighting.
- Touch Reliability: Analog resistive film rated for over 1 million touches with minimal actuation force (0.98N), supporting up to 2 simultaneous presses.
- Advanced Connectivity: Dual serial ports (RS-232/422/485), Ethernet, and dual USB host ports enable flexible device integration; SDHC slot expands data logging capacity.
- Human Sensor Integration: Built-in proximity sensor (1m range) allows automatic screen wake/sleep, reducing power consumption and extending backlight life.
- Memory & Storage: 32MB ROM + 80MB RAM user memory for complex screens and data; 100,000 write cycles ensure durability.
- Environmental Hardiness: IP67F front protection resists dust and water ingress; wide operating temperature range suitable for factory floors.
- Future-Proof Expansion: Extension and side interfaces for optional communication units, grip switches, and keylock switches.
