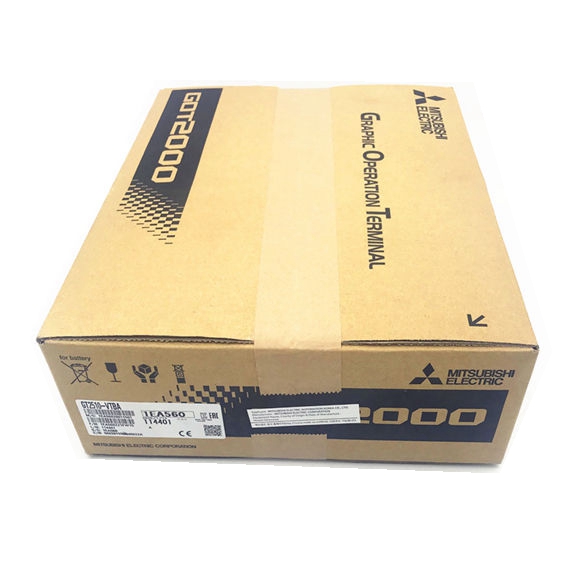

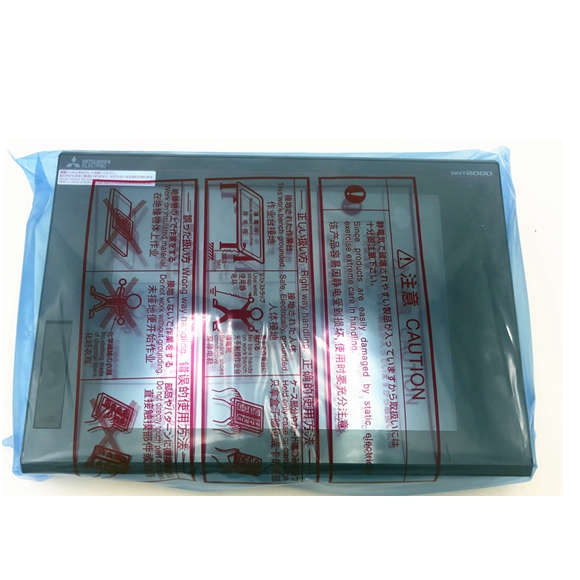

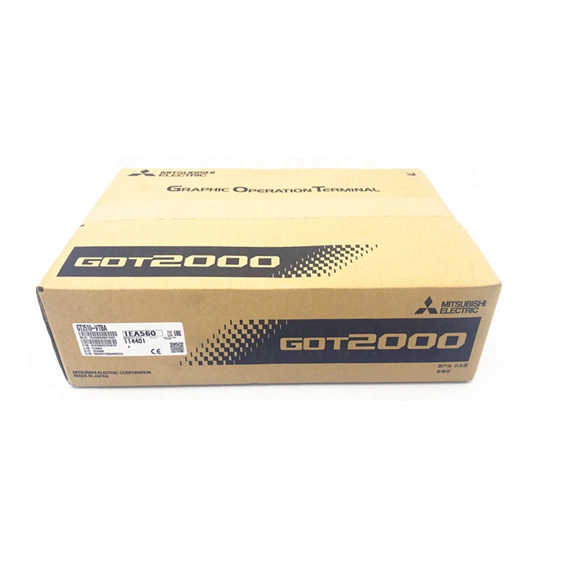

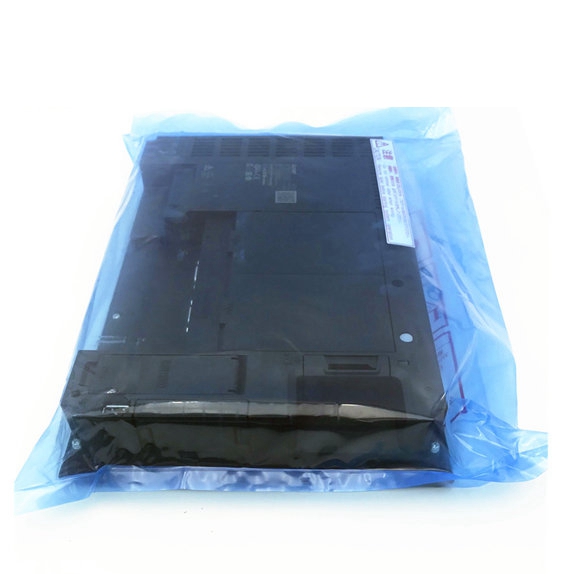

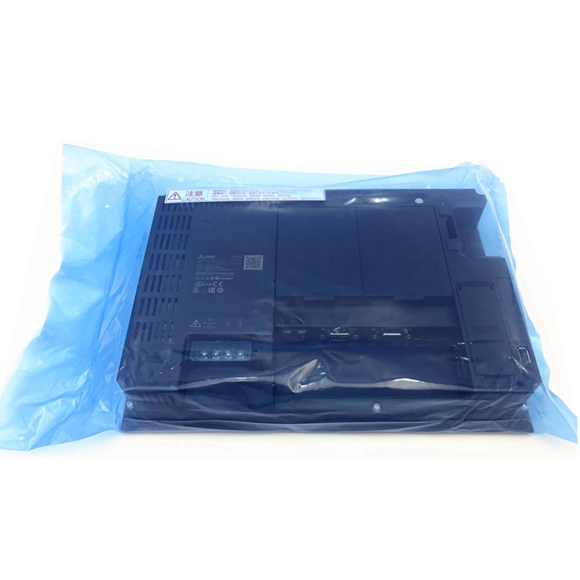

The GT2510-VTBA and GT2510-VTBD are high-performance 10.4-inch touchscreen HMIs from the Mitsubishi GOT2000 series, engineered for advanced machine control and visualization. These units feature a brilliant SVGA TFT color LCD with 65,536 colors and a durable analog resistive touch panel, providing precise and responsive operation. With a comprehensive set of built-in interfaces including Ethernet, serial, and USB, the GT2510-VTBA/VTBD ensures seamless connectivity to PLCs, drives, and other automation devices. The IP67F-rated front panel makes them suitable for harsh environments, while the long-life LED backlight and robust memory configuration guarantee reliable performance over extended periods.
| Parameter |
Specification |
| Model |
GT2510-VTBA / GT2510-VTBD |
| Display Type |
TFT Color LCD |
| Screen Size |
10.4″ |
| Resolution (Dots) |
800 x 600 (SVGA) |
| Display Size (W x H) mm |
211.2 x 158.4 |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level Adjustment |
| Backlight Type |
LED (Not Replaceable) |
| Backlight Life |
Approx. 60,000 hours or more (at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 Million times or more (0.98N or less) |
| User Memory Capacity |
ROM: 32MB, RAM: 80MB |
| Battery |
GT11-50BAT Lithium Battery (Life: Approx. 5 years at 25°C) |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Protective Construction |
Front: IP67F, In Control Panel: IP2X |
| External Dimensions (W x H x D) mm |
303 x 218 x 52 |
| Panel Cutout (W x H) mm |
289 x 200 |
| Weight (Excludes Mounting Brackets) |
2.1 kg |
| Application Software Package |
1.112S or 1.150G |
- Built-in Interfaces:
- RS-232: 1ch, speeds up to 115200 bps, D-sub 9-pin (male).
- RS-422/485: 1ch, speeds up to 115200 bps, D-sub 9-pin (female).
- Ethernet: 1ch, 10BASE-T/100BASE-TX, RJ-45 connector.
- USB (Host): 2 channels, Type-A connector, High-Speed 480 Mbps.
- USB (Device): 1 channel, Mini-B connector, High-Speed 480 Mbps.
- SD Card: 1ch, SDHC compliant (maximum 32 GB).
- Expansion & Auxiliary Interfaces:
- Extension Interface: For communication/option unit mounting.
- Auxiliary Extension I/F: For option unit mounting.
- Side Interface: For LAN communication unit mounting.
- Audio & Indicators:
- Buzzer Output: Single tone (tone and length adjustable).
- Power LED: 2 colors (blue, orange).
- Character Display:
- 16-dot standard font: 40 chars x 30 lines (2-byte).
- 12-dot standard font: 53 chars x 40 lines (2-byte).
- Panel Colors: GT2510-VTBA (Black), GT2510-VTBD (White/Silver).
