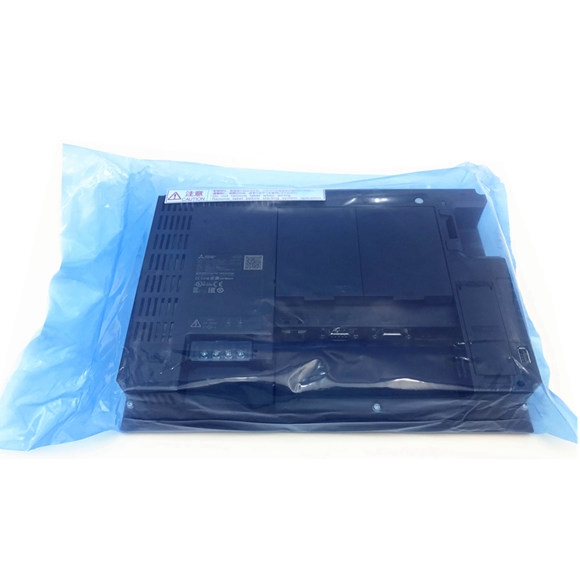

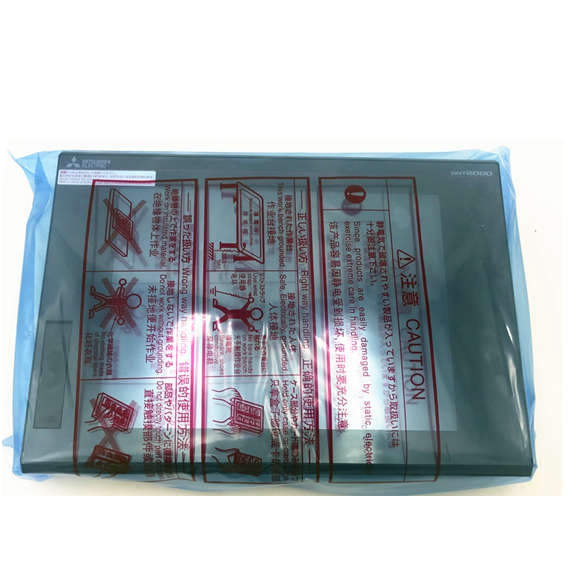

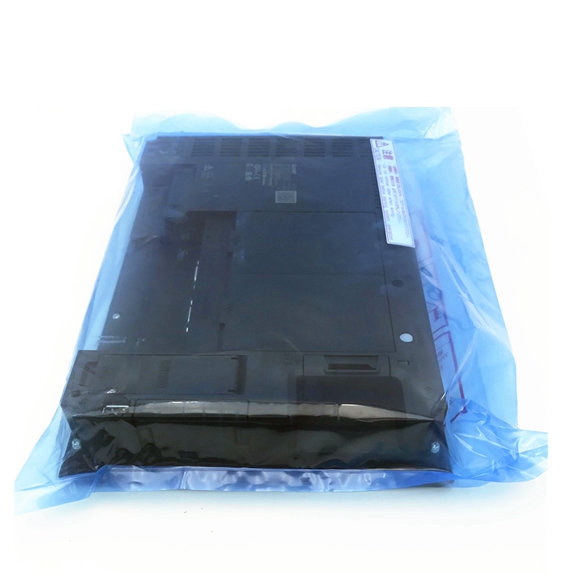

The Mitsubishi GT2510-VTWA and GT2510-VTWD are 10.4-inch touch screen HMIs from the renowned GOT2000 series, engineered for demanding industrial automation. These units deliver a superior user interface with a vivid TFT color LCD, ensuring operators have clear, real-time data at their fingertips. With a rich set of built-in communication interfaces including Ethernet, multiple serial ports, and USB, they integrate seamlessly into any control architecture. The robust construction, featuring an IP67F-rated front panel and a high-durability touch screen, guarantees reliable operation in the toughest shop-floor conditions.
| Parameter |
Specification (GT2510-VTWA / GT2510-VTWD) |
| Display Type |
TFT Color LCD |
| Screen Size |
10.4″ |
| Resolution (Dots) |
800 x 600 (SVGA) |
| Display Size (W x H) mm |
211.2 x 158.4 |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level |
| Backlight Type / Life |
LED (non-replaceable) / Approx. 60,000 hrs (to 50% intensity @ 25°C) |
| Touch Panel Type / Life |
Analog Resistive Film / 1M+ presses (0.98N max) |
| User Memory |
ROM: 32MB, RAM: 80MB |
| Internal Clock Accuracy |
±90 sec/month (@ 25°C) |
| Battery Type / Life |
GT11-50BAT Lithium / Approx. 5 years (@ 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
1ch (down), High-Speed 480Mbps, USB-A |
| USB (Device) |
1ch, High-Speed 480Mbps, USB Mini-B |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Protective Construction |
Front: IP67F (*6,*9 or *7,*9); In control panel: IP2X |
| External Dimensions (WxHxD) mm |
303 x 218 x 52 |
| Panel Cutout (WxH) mm |
289 x 200 |
| Weight (kg) |
2.1 |
- Panel Colors: GT2510-VTWA features a white/bezel (W) front frame; GT2510-VTWD features a black (B) front frame.
- Extension Interface: For communication/option unit mounting, supporting future expandability.
- Auxiliary Extension I/F: For additional option unit mounting, increasing system flexibility.
- Side Interface: Dedicated for LAN communication unit mounting, enabling advanced networking.
- Sound Output: Integrated buzzer with adjustable tone and length; no separate audio jack on this model.
- Power LED: Dual-color (blue/orange) indicator for clear power/status feedback.
- Application Software: Compatible with GT Works3 (version 1.112S or later) for full programming support.
- Human Sensor: Not included on standard GT2510-VTWA/VTWD models.
