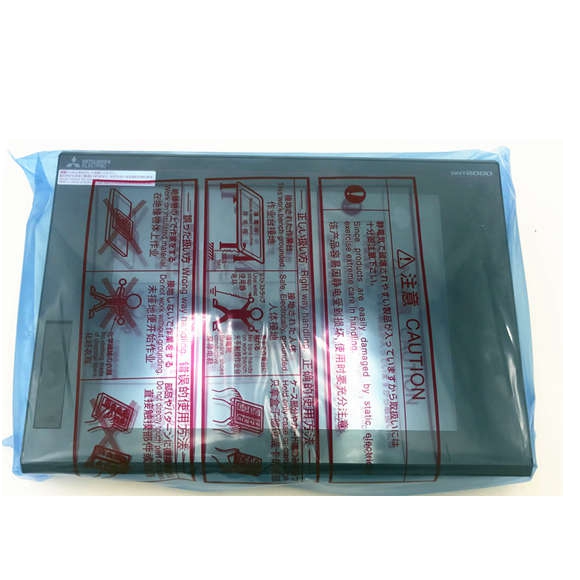

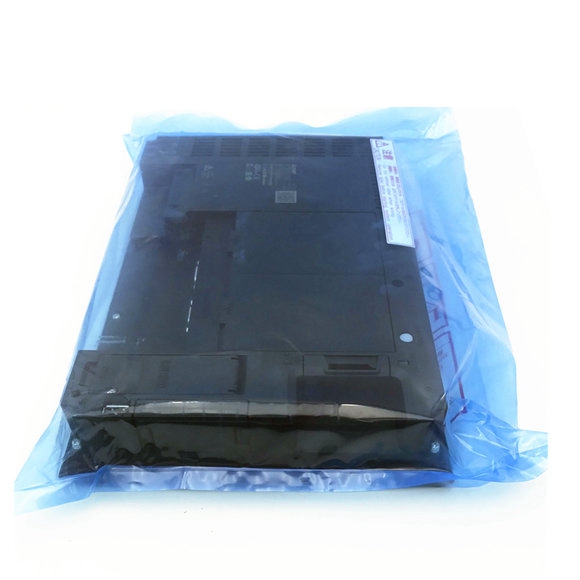

The Mitsubishi GOT2000 series continues to set the standard for industrial HMIs, and the 10.1″ GT2510-WXTBD and GT2510-WXTSD models are prime examples of this legacy. Designed for wide-screen applications, these units deliver a superior 1280 x 800 pixel display with 65,536 colors, ensuring crystal-clear operator interface even in complex process environments. With a robust IP67F front bezel, a high-speed 480Mbps USB interface, and a comprehensive suite of serial and Ethernet ports, the GT2510-WXTBD and GT2510-WXTSD are the ideal choice for modern automation systems requiring both performance and reliability. Each unit is supplied 100% new and original, ready for immediate deployment.
| Parameter |
Specification (GT2510-WXTBD / GT2510-WXTSD) |
| Display Type |
TFT Color LCD |
| Screen Size |
10.1″ |
| Resolution (Dots) |
1280 x 800 (WXGA) |
| Display Size (W x H) mm |
216.96 x 135.6 |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level adjustment |
| Backlight Type |
LED (not replaceable) |
| Backlight Life |
Approx. 60,000 hours or more (to 50% intensity @25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 Million times or more |
| Panel Color |
Black (WXTBD) / White/Silver (WXTSD) |
| User Memory Capacity |
ROM: 32MB, RAM: 128MB |
| Internal Clock Accuracy |
±90 sec/month (ambient temperature 25°C) |
| Battery Type |
GT11-50BAT lithium battery |
| Battery Life |
Approx. 5 years (ambient temperature 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200bps |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
2 channels (Type-A), High-Speed 480Mbps |
| USB (Device) |
1 channel (Mini-B), High-Speed 480Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option unit mounting |
| Sound Output |
1ch (3.5mm jack) |
| Buzzer Output |
Single tone (adjustable) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F, Rear: IP2X |
| External Dimensions (W x H x D) mm |
252 x 194 x 48 |
| Panel Cutout (W x H) mm |
243.5 x 185.5 |
| Weight (KG) |
Approx. 1.2 |
| Application Software |
GT Designer3 (Version 1.175G or later) |
- Display Excellence: The 1280 x 800 WXGA resolution on the 10.1-inch screen provides a 16:10 aspect ratio, perfect for displaying detailed graphics, trends, and alarms side-by-side without scrolling.
- Robust Connectivity: Features a full suite of industrial communication ports including a high-speed Ethernet interface for controller and network connectivity, plus dual USB host ports for data logging and peripheral connection.
- Memory & Performance: With 32MB of ROM and 128MB of RAM, the GT2510-WXTBD and GT2510-WXTSD can handle large-scale projects with numerous screens, macros, and multi-language support.
- Environmental Durability: The IP67F rated front panel ensures protection against dust and water ingress, making it suitable for wash-down applications and harsh factory floors.
- User-Friendly Design: The analog resistive touch panel supports up to 2-point simultaneous press and has a rated life of over 1 million operations, ensuring long-term reliability.
