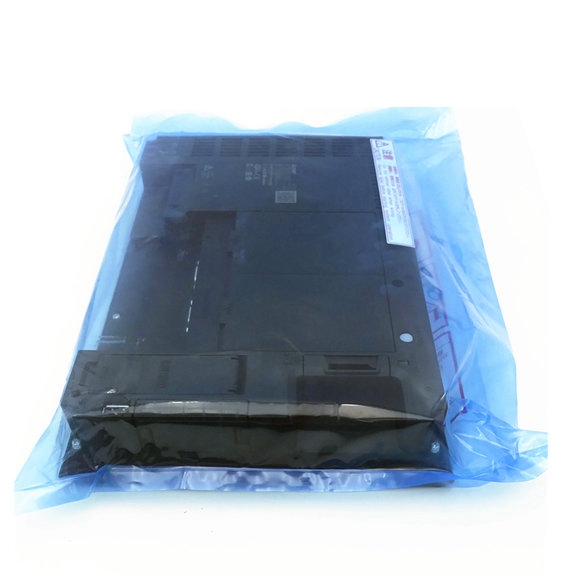

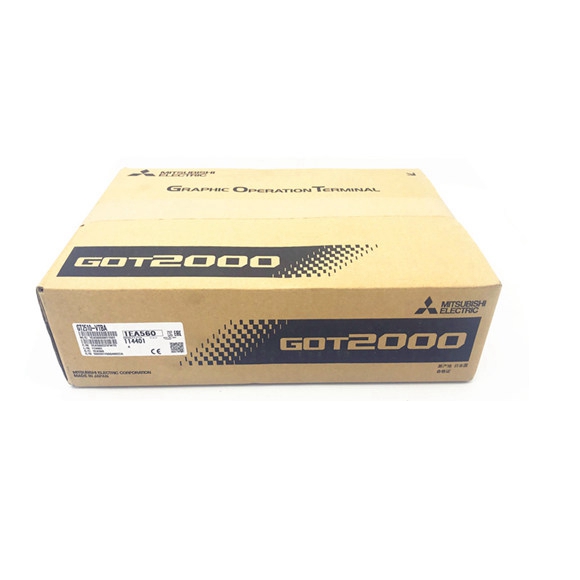

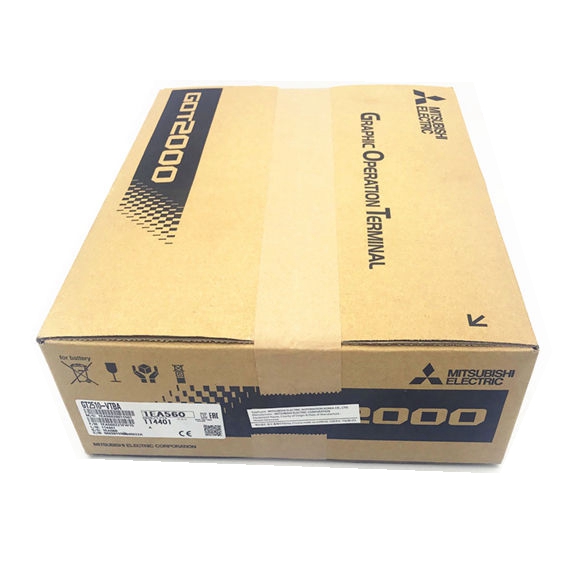

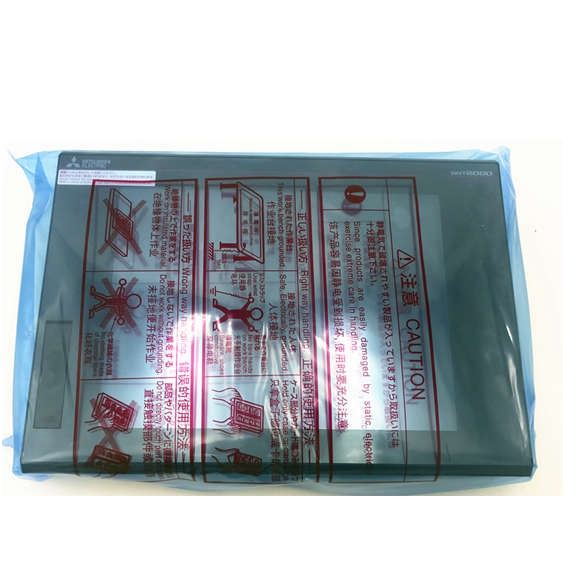

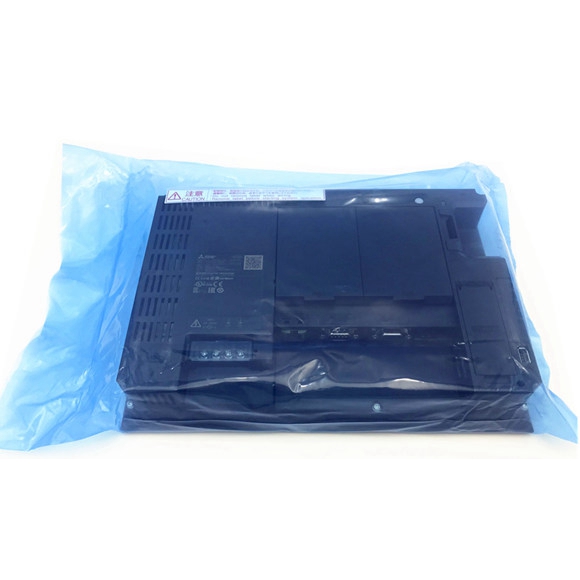

Mitsubishi GT2510F-VTND Touch Screen HMI

Series#: Mitsubishi

Product Details

Model: 10.4″ Mitsubishi Touch screen HMI GT2510F-VTND – High-performance GOT2000 series operator interface.
Display: 10.4-inch TFT color LCD with 800x600 SVGA resolution for crisp, clear visuals.
Robust Connectivity: Built-in RS-232, RS-422/485, Ethernet, dual USB (Host/Device), and SD card slot for flexible integration.
Durable & Reliable: IP67F front protection, LED backlight with 60,000+ hour life, and analog resistive touch panel rated for 1 million presses.
Memory & Performance: 32MB ROM / 80MB RAM user memory with internal clock and lithium battery backup.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The GT2510F-VTND is a 10.4-inch SVGA TFT color LCD HMI from Mitsubishi’s GOT2000 series, engineered for demanding industrial automation environments. This operator interface combines a high-resolution 800x600 dot display with a robust analog resistive touch panel, ensuring precise and reliable operator input even in harsh conditions. With comprehensive communication ports including RS-232, RS-422/485, Ethernet, and USB interfaces, the GT2510F-VTND seamlessly integrates with PLCs, drives, and other automation components. Its IP67F front protection, long-life LED backlight, and generous 32MB ROM / 80MB RAM memory make it a durable and powerful choice for advanced machine control and monitoring applications.

Key Technical Specifications
Model	GT2510F-VTND
Display Type	TFT Color LCD
Screen Size	10.4″
Resolution	800 x 600 (SVGA)
Display Size (W x H)	211.2 x 158.4 mm
Display Colors	65,536 Colors
Intensity Adjustment	32-Level
Backlight Type / Life	LED (non-replaceable) / Approx. 60,000 hours
Touch Panel Type / Life	Analog Resistive Film / 1 Million+ operations
Memory (User)	ROM: 32MB, RAM: 80MB
Battery Type / Life	GT11-50BAT Lithium / Approx. 5 years at 25°C
Internal Clock Accuracy	±90 sec/month at 25°C
Protection Rating	Front: IP67F, Control Panel: IP2X
External Dimensions (W x H x D)	303 x 218 x 52 mm
Panel Cutout (W x H)	289 x 200 mm
Weight (excl. brackets)	2.1 kg

Interface & Connectivity Deep Dive:

Serial Ports: 1x RS-232 (D-sub 9-pin male) and 1x RS-422/485 (D-sub 9-pin female) supporting baud rates up to 115200 bps.
Ethernet: 1x RJ-45 port for 10BASE-T/100BASE-TX network connectivity.
USB Host: 2x USB-A ports (High-Speed 480Mbps) for connecting peripherals like barcode readers or USB memory.
USB Device: 1x USB Mini-B port for high-speed data transfer with a PC (GOT engineering software).
SD Card Slot: 1x SDHC-compatible slot supporting cards up to 32GB for data logging and recipe transfer.
Extension Interfaces: Dedicated slots for communication units, option units (e.g., LAN, sound output), and auxiliary connections.
Power & Status Indicators: Multi-color power LED (blue/orange) and a programmable single-tone buzzer for operator feedback.
