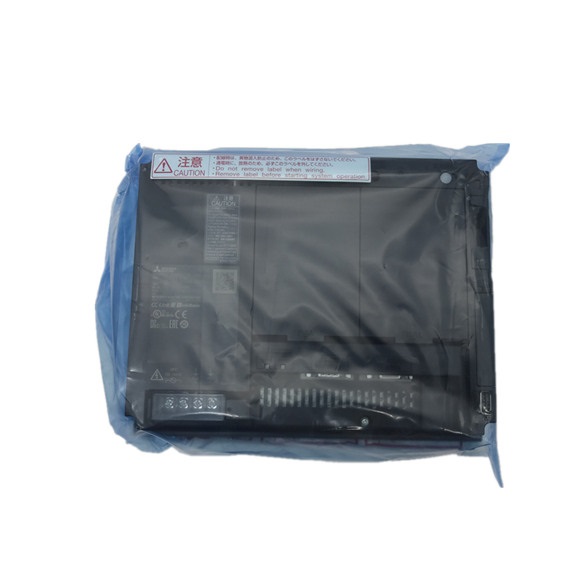

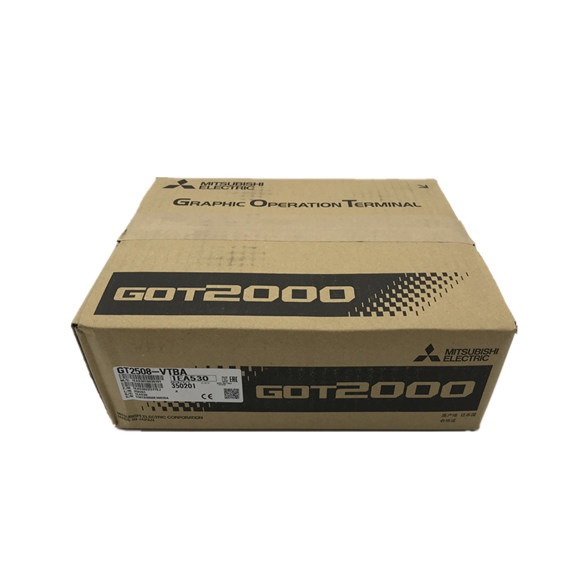

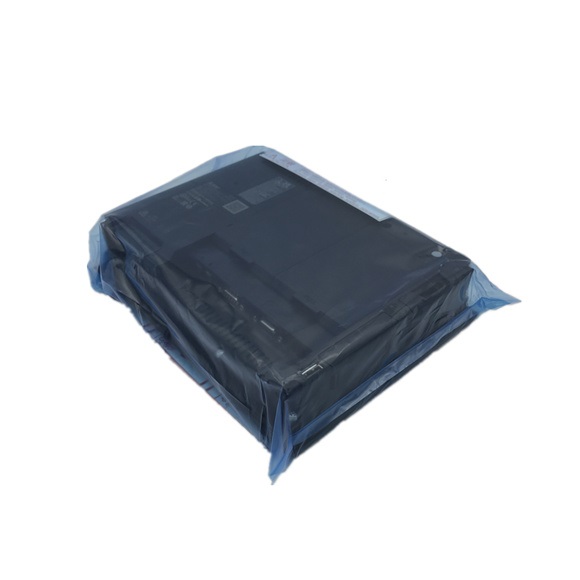

The 8.4″ Mitsubishi Touch screen HMI GT2508-VTBA is a high-performance operator terminal designed for seamless integration into modern automation systems. This 8.4-inch display delivers a vibrant 640x480 VGA resolution with 65,536 colors, ensuring exceptional readability even in harsh lighting. With a robust 32MB ROM and 80MB RAM, it supports complex screen layouts and data logging. The unit features a reliable analog resistive touch panel with a lifespan of over 1 million presses, and its LED backlight offers approximately 60,000 hours of operation. Built for connectivity, the GT2508-VTBA includes RS-232, RS-422/485, Ethernet (10BASE-T/100BASE-TX), dual USB host ports, and an SDHC card slot (up to 32GB). Its IP67F front protection makes it suitable for washdown or dusty environments, while the compact dimensions (241 x 194 x 51 mm) allow for easy panel mounting.
| Parameter |
Specification |
| Model |
GT2508-VTBA |
| Display Type |
TFT Color LCD |
| Screen Size |
8.4″ |
| Resolution |
640 x 480 (VGA) |
| Display Size (W x H) |
170.9 x 128.2 mm |
| Display Colors |
65,536 colors |
| Backlight Type |
LED (non-replaceable) |
| Backlight Life |
Approx. 60,000 hours (at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
≥1 million operations |
| User Memory |
ROM: 32MB, RAM: 80MB |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT lithium battery (life ~5 years at 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
2 ports (Type A), High-Speed 480 Mbps |
| USB (Device) |
1 port (Mini-B), High-Speed 480 Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option units |
| Protective Construction |
Front: IP67F, Rear: IP2X |
| External Dimensions (W x H x D) |
241 x 194 x 51 mm |
| Panel Cutout (W x H) |
227 x 176 mm |
| Weight (excl. brackets) |
1.5 kg |
| Application Software |
GT Works3 (Version 1.112S) |
- Display Performance: 32-level intensity adjustment ensures optimal readability in varying ambient light conditions; supports 16-dot standard font (50 chars x 30 lines) and 12-dot font (53 chars x 40 lines).
- Touch Panel Details: Minimum key size of 2x2 dots; supports up to 2 simultaneous touch points; rated for 1 million presses with ≤0.98N operating force.
- Memory & Storage: User memory endurance of 100,000 write cycles; internal lithium battery maintains clock and SRAM for up to 5 years at 25°C.
- Connectivity Options: Sound output via 3.5mm jack (on select models); single-tone buzzer with adjustable frequency and duration; power LED with blue/orange emission colors.
- Environmental Ratings: Designed for front IP67F protection (oil-resistant) when properly mounted; ambient operating temperature range 0–55°C (32–131°F).
- Mechanical Dimensions: Compact footprint (241 x 194 x 51 mm) with panel cutout of 227 x 176 mm; weight of 1.5 kg facilitates easy installation.
