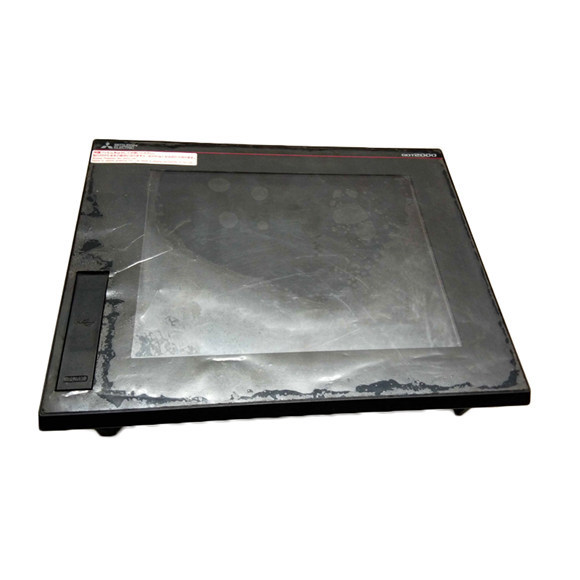

The 8.4″ Mitsubishi Touch screen HMI GT2508-VTBD is a compact yet powerful operator interface from the GOT2000 series, designed for seamless integration into modern automation systems. With its rugged IP67F front panel, high-brightness 8.4-inch TFT display, and versatile communication ports—including dual USB channels, Ethernet, and serial interfaces—this HMI delivers reliable performance in harsh industrial environments. Its 32MB ROM and 80MB RAM provide ample memory for complex screen designs and data logging, while the LED backlight offers over 60,000 hours of maintenance-free operation. Perfect for machine builders and system integrators requiring a space-saving, high-durability touch panel.
| Parameter |
Specification (GT2508-VTBD) |
| Display Type |
TFT Color LCD |
| Screen Size |
8.4″ |
| Resolution |
640 x 480 (VGA) |
| Display Size (W x H) mm |
170.9 x 128.2 |
| Number of Characters |
16-dot: 50 chars x 30 lines (2-byte); 12-dot: 53 chars x 40 lines (2-byte) |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level |
| Backlight Type |
LED (non-replaceable) |
| Backlight Life |
Approx. 60,000 hours (to 50% brightness at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 million+ presses (0.98N max force) |
| Panel Color |
Black |
| Memory (User) |
ROM: 32MB; RAM: 80MB |
| Memory Write Life |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT Lithium |
| Battery Life |
Approx. 5 years (at 25°C) |

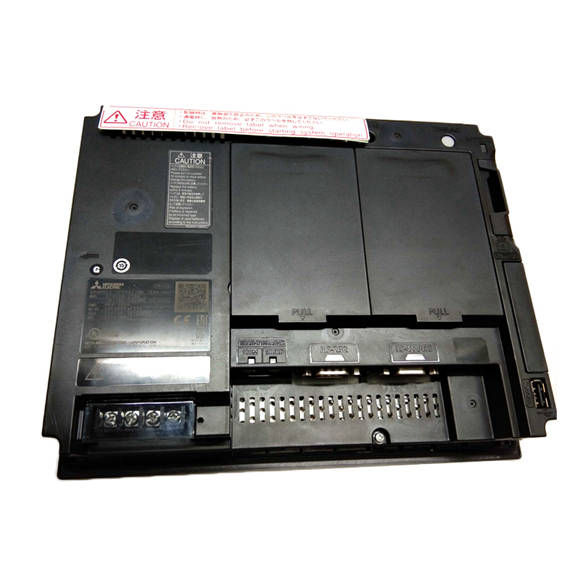

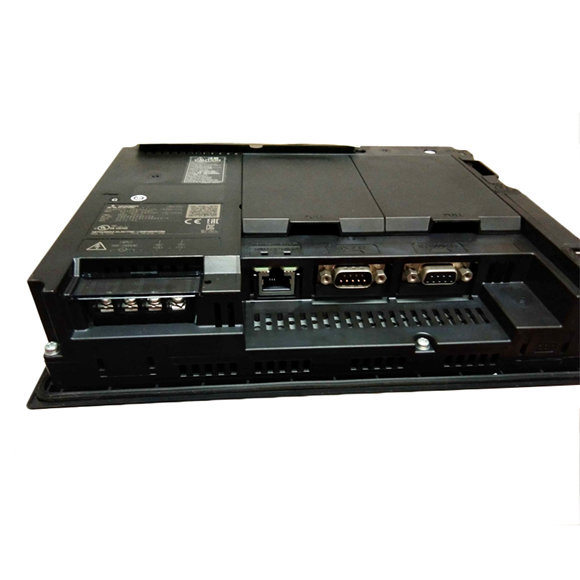

| RS-232 Interface |
1ch; 115200/57600/38400/19200/9600/4800 bps; D-sub 9-pin (male) |
| RS-422/485 Interface |
1ch; same speed range; D-sub 9-pin (female) |
| Ethernet |
1ch; 10BASE-T/100BASE-TX; RJ-45 |
| USB (Host) |
2 channels (Type-A); High-Speed 480Mbps |
| USB (Device) |
1 channel (Mini-B); High-Speed 480Mbps |
| SD Card Slot |
1ch; SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option units |
| Auxiliary Extension I/F |
For option units |
| Side Interface |
For LAN communication unit |
| Sound Output |
None (not equipped) |
| Buzzer Output |
Single tone (adjustable pitch/duration) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F; Rear panel: IP2X |
| External Dimensions (W x H x D) mm |
241 x 194 x 51 |
| Panel Cutout (W x H) mm |
227 x 176 |
| Weight (without brackets) kg |
1.5 |
| Application Software Package |
GT Works3 Version 1.112S or later |
- Human Sensor: Detection distance 1m; temperature differential ≥4°C between body and ambient air.
- Key Size: Minimum 2x2 dots per touch key.
- Simultaneous Press: Maximum 2 points supported.
- Touch Panel Life: 1 million+ actuations at ≤0.98N operating force.
- Backlight Life: 60,000 hours typical (to 50% brightness at 25°C ambient).
- Memory Capacity: 32MB ROM for project storage; 80MB RAM for runtime execution.
- Battery Backup: GT11-50BAT lithium battery for clock and SRAM retention (~5 years at 25°C).
- Interface Redundancy: Dual USB host ports for keyboard, mouse, or data transfer; standalone USB device port for PC connection.
- Environmental Rating: IP67F front panel resists dust and water ingress; IP2X rear panel protection.
- Mounting: Panel cutout 227mm x 176mm; weight only 1.5 kg (excluding brackets).
