Mitsubishi GT2508F-VTND Touch Screen HMI

Series#: Mitsubishi

Product Details

Model: 8.4″ Mitsubishi Touch screen HMIs GT2508F-VTND – a high-performance industrial HMI for demanding automation tasks.
Features a crisp 8.4-inch TFT color LCD with 640×480 VGA resolution for clear, detailed visualization.
Equipped with an analog resistive touch panel rated for over 1 million presses, ensuring reliable operation in harsh environments.
Built-in RS-232, RS-422/485, Ethernet, and dual USB interfaces for flexible connectivity with PLCs and controllers.
LED backlight with a lifespan of approximately 60,000 hours, reducing maintenance and downtime.
IP67F front protection (when mounted in panel) for resistance against dust and water ingress.

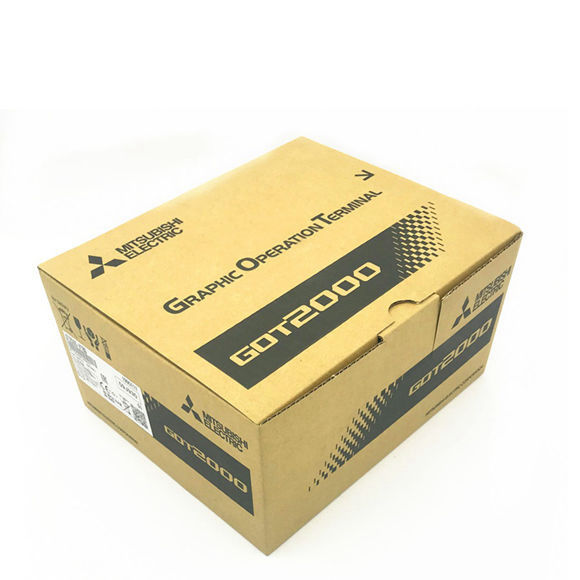

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The 8.4″ Mitsubishi Touch screen HMIs GT2508F-VTND is a robust operator interface designed for industrial automation environments where reliability and clarity are paramount. This GOT2000 series HMI combines a vivid 8.4-inch TFT LCD display with a durable analog resistive touch panel, making it ideal for machine control, process monitoring, and data entry applications. Its comprehensive connectivity suite—including RS-232, RS-422/485, Ethernet, USB host/device, and SD card slot—ensures seamless integration with a wide range of Mitsubishi and third-party controllers. With an IP67F front rating and a long-life LED backlight, the GT2508F-VTND delivers consistent performance in demanding conditions.

Parameter	Specification
Display Type	TFT Color LCD
Screen Size	8.4 inches
Resolution (Dots)	640 × 480 (VGA)
Display Size (W × H) mm	170.9 × 128.2
Display Colors	65,536 Colors
Intensity Adjustment	32-Level adjustment
Backlight Type	LED (not replaceable)
Backlight Life	Approx. 60,000 hours or more (to 50% brightness at 25°C)
Touch Panel Type	Analog Resistive Film
Touch Panel Life	1 million times or more (at 0.98N or less)
Panel Color	Black
Human Sensor Detection Distance	1 meter
Human Sensor Detection Temperature	Temperature difference ≥4°C between body and ambient
User Memory Capacity	ROM: 32MB, RAM: 80MB
Memory Life (Number of Writes)	100,000 times
Internal Clock Accuracy	±90 sec/month (at 25°C)
Battery Type	GT11-50BAT lithium battery
Battery Life	Approx. 5 years (at 25°C)
Built-in Interface RS-232	1ch, speeds: 115200/57600/38400/19200/9600/4800 bps, D-sub 9-pin (male)
Built-in Interface RS-422/485	1ch, speeds: 115200/57600/38400/19200/9600/4800 bps, D-sub 9-pin (female)
Ethernet	1ch, 10BASE-T/100BASE-TX, RJ-45
USB (Host)	2 channels (front/rear), max speed 480 Mbps (High-Speed), USB-A connector
USB (Device)	1 channel (rear), max speed 480 Mbps (High-Speed), USB Mini-B connector
SD Card Slot	1ch, SDHC compliant (max 32GB)
Extension Interface	For communication unit/option unit mounting
Auxiliary Extension I/F	For option unit mounting
Side Interface	For LAN communication unit mounting
Sound Output Interface	Not available on this model
Buzzer Output	Single tone (tone, tone length adjustable)
Power LED	2 colors (blue, orange)
Protective Construction	Front: IP67F (6,9 or 7,9), In control panel: IP2X
External Dimensions (W × H × D) mm	241 × 194 × 51
Panel Cutout (W × H)	227 × 176
Weight (excluding mounting brackets)	1.5 kg
Application Software Package	GT Works3 Version 1.112S or later

Display Performance: The 8.4-inch VGA TFT LCD delivers 65,536 colors with 32-level brightness adjustment, ensuring excellent readability in various lighting conditions.
Touch Panel Durability: Analog resistive film technology supports up to 2 simultaneous touches, with a minimum key size of 2×2 dots, and a mechanical life exceeding 1 million operations.
Connectivity Options: Includes one RS-232, one RS-422/485, one Ethernet (10/100 Mbps), two USB host ports (Type-A), one USB device port (Mini-B), and one SD card slot (up to 32GB).
Environmental Protection: Front panel rated IP67F for dust and water resistance (when properly mounted), with IP2X protection inside the control panel.
Power and Battery: Uses GT11-50BAT lithium battery with approximately 5-year life at 25°C; internal clock accuracy of ±90 seconds per month.
Memory and Storage: 32MB ROM and 80MB RAM for application storage and runtime data, with 100,000 write cycles endurance.
Mechanical Dimensions: Compact footprint of 241 × 194 × 51 mm with a panel cutout of 227 × 176 mm, weighing just 1.5 kg.
