Mitsubishi GT2505-VTBD Touch Screen HMI

Series#: Mitsubishi

Product Details

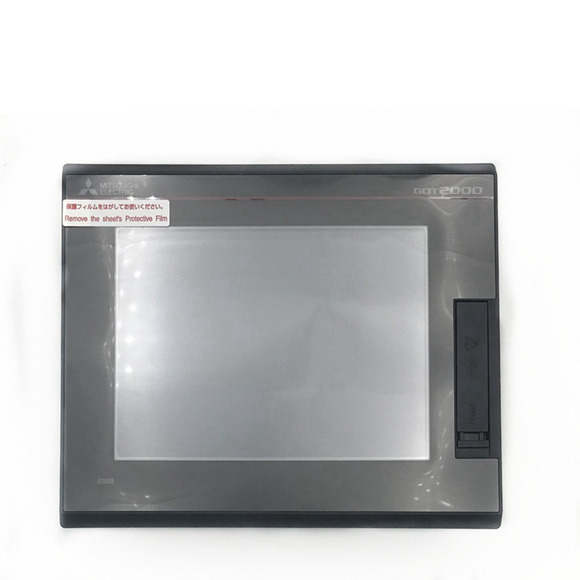

Model: GT2505-VTBD from the Mitsubishi GT25 Series, a compact 5.7-inch industrial touch screen HMI.
Delivers crisp 640x480 VGA resolution on a TFT color LCD with 65,536 colors for clear operator interfaces.
Features a robust analog resistive touch panel rated for over 1 million presses, ensuring long-term reliability.
Equipped with dual Ethernet and USB ports (Host/Device) for flexible connectivity to PLCs and peripherals.
Integrated SDHC card slot (up to 32GB) for data logging and project transfer without a PC.
Compact design with IP67F front protection for harsh industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The GT2505-VTBD is a high-performance 5.7-inch HMI from the renowned Mitsubishi GT25 Series, engineered to deliver superior visualization and control in demanding automation applications. This model combines a vivid 640x480 VGA TFT display with a durable analog resistive touchscreen, offering 65,536 colors for detailed machine graphics. With a powerful 32MB ROM and 80MB RAM user memory, it handles complex projects with ease. The unit supports multiple communication interfaces including RS-232, RS-422/485, Ethernet (10BASE-T/100BASE-TX), and dual USB ports, making it ideal for integration into existing Mitsubishi or third-party PLC networks. Its IP67F-rated front bezel ensures reliable operation in dusty or wet conditions, while the LED backlight provides over 60,000 hours of maintenance-free service.

Parameter	Specification (GT2505-VTBD)
Display Type	TFT Color LCD
Screen Size	5.7 inches
Resolution	640 x 480 (VGA)
Display Colors	65,536 colors
Backlight	LED (non-replaceable), ~60,000 hours life
Touch Panel	Analog Resistive Film, 1M+ presses
User Memory	ROM: 32MB, RAM: 80MB
Battery	GT11-50BAT Lithium, ~5 years life
Internal Clock Accuracy	±90 sec/month @ 25°C
Protection Rating	Front: IP67F, Rear: IP2X
External Dimensions (WxHxD)	164 x 139 x 53.5 mm
Panel Cutout (WxH)	153 x 121 mm
Weight	Approx. 0.6 kg (excl. brackets)

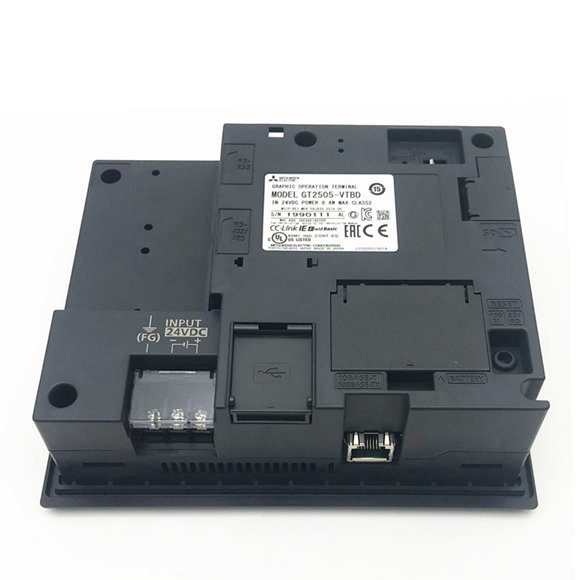

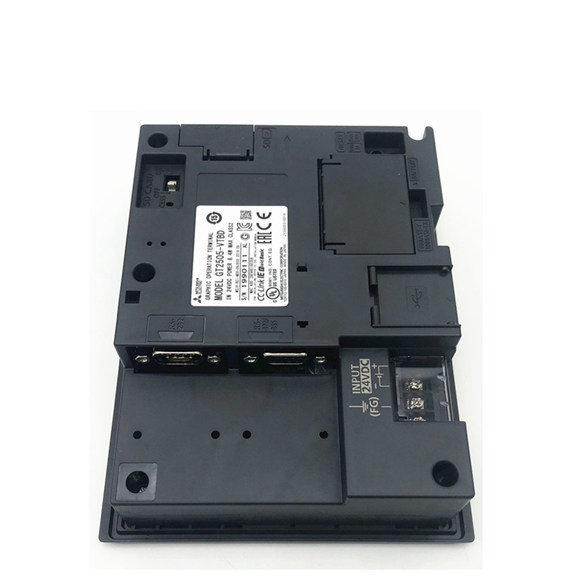

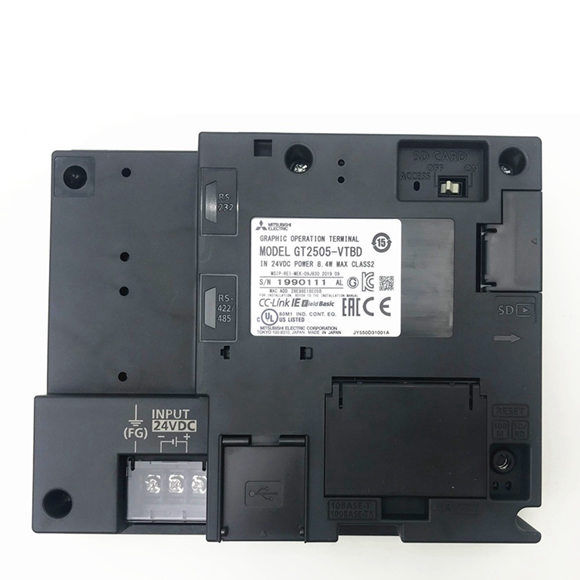

Communication Interfaces: 1x RS-232 (D-sub 9-pin male), 1x RS-422/485 (D-sub 9-pin female), 1x Ethernet RJ-45 (10/100BASE-TX), 1x USB Host (Type-A, High-Speed 480Mbps), 1x USB Device (Mini-B, High-Speed 480Mbps).
Expansion Capabilities: 1x SDHC card slot (up to 32GB), 1x extension interface for communication/option units, 1x auxiliary extension for optional modules, and a side interface for LAN communication unit.
Audio & Indicators: Built-in buzzer output (single tone, adjustable frequency/duration) and a dual-color power LED (blue/orange).
Software Support: Compatible with GT Designer3 package (e.g., version 1.180N/11.95D) for project creation and management.
Environmental Durability: Operating temperature 0-55°C, storage -20-60°C, with vibration and shock resistance per industrial standards.
