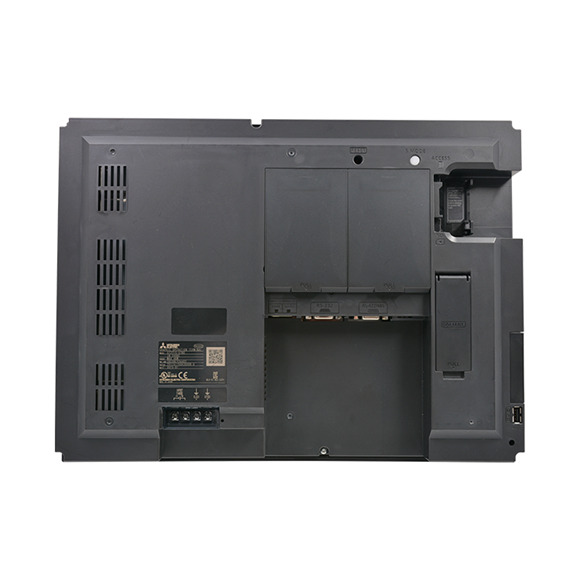

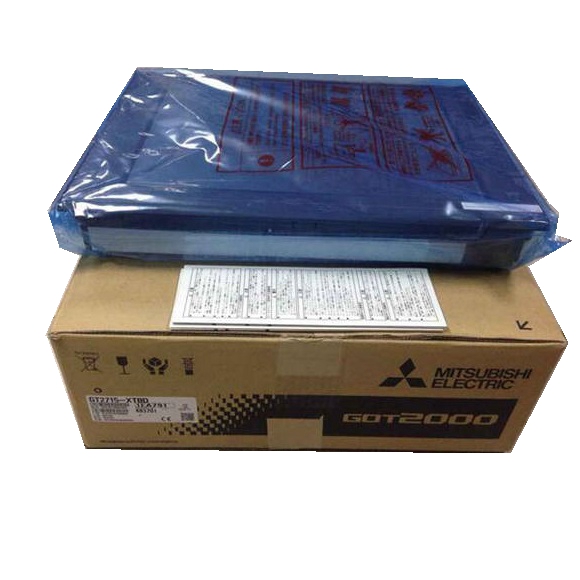

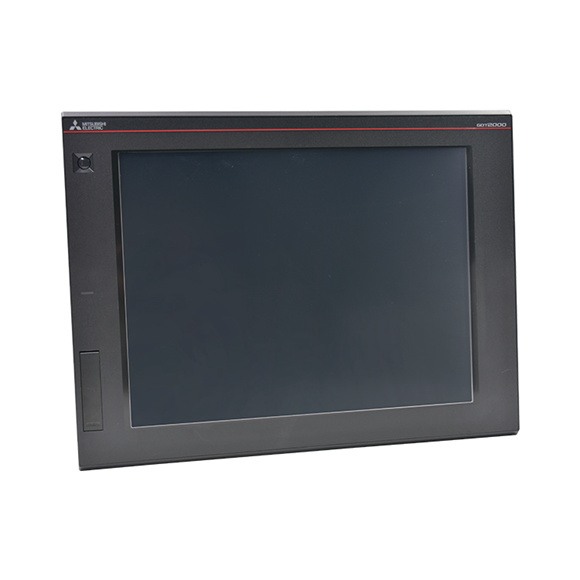

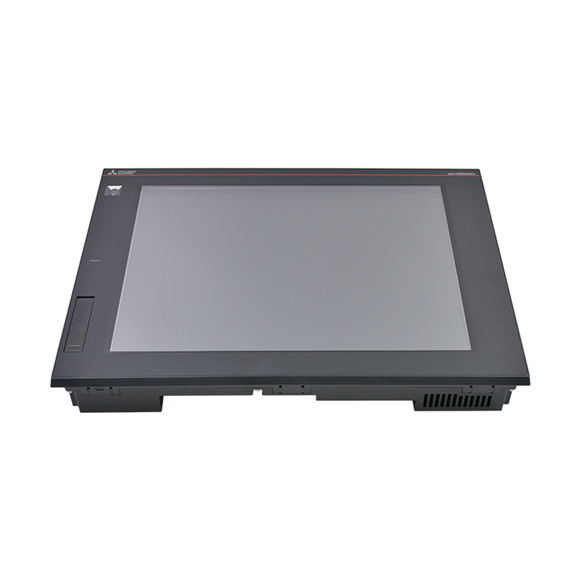

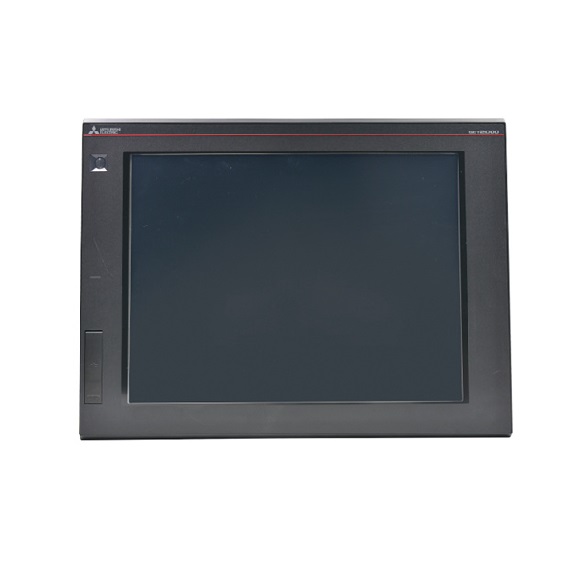

The 15″ Mitsubishi Touch screen HMIs GT2715-XTBA is a flagship model from the GOT2000 series, engineered for demanding industrial environments. This high-performance HMI combines a large 15-inch XGA display with advanced processing capabilities, ensuring seamless visualization and control. With its extensive interface options and rugged construction, the GT2715-XTBA is the ideal choice for complex automation systems requiring reliable, real-time operator interaction.
| Specification |
Detail |
| Product Model |
GT2715-XTBA |
| Display Type |
TFT Color LCD |
| Screen Size |
15" |
| Resolution (Dots) |
1024 x 768 XGA |
| Display Size (W x H) mm |
304.1 x 228.1 |
| Display Colors |
65536 Colors |
| Intensity Adjustment |
32-Level Adjustment |
| Backlight Type |
LED (Not Replaceable) |
| Backlight Life |
Approx. 60,000 Hours or More |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 Million Times or More |
| Memory (ROM) |
57MB |
| Memory (RAM) |
128MB |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT Lithium Battery |
| Battery Life |
Approx. 5 Years (at 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male) |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female) |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB Host Interface |
2ch, High-Speed 480Mbps, USB-A (front/rear) |
| USB Driver Interface |
1ch, High-Speed 480Mbps, USB Mini-B (front) |
| SD Card Slot |
1ch, SDHC Compliant (max 32GB) |
| Protective Construction |
Front: IP67F, In Control Panel: IP2X |
| External Dimensions (W x H x D) mm |
397 x 300 x 60 |
| Panel Cutout (W x H) mm |
383.5 x 282.5 |
| Weight (Excluding Brackets) kg |
4.5 |
| Panel Color |
Black |
| Human Sensor Detection Distance |
1m |
| Buzzer Output |
Single Tone (Adjustable) |
| Power LED |
2 Colors (Blue, Orange) |
| Application Software Package |
1.112S or Later |
- Human Sensor: Integrated sensor detects operator presence up to 1 meter, enabling energy-saving screen dimming when not in use.
- Extension Interfaces: Includes a main extension interface and an auxiliary extension I/F for mounting optional communication or function units.
- Side Interface: Dedicated side interface for attaching additional communication units, expanding connectivity without occupying the main slot.
- Touch Panel Precision: Supports minimum key size of 2 x 2 dots with a maximum of 2 simultaneous presses for accurate input.
- Memory Endurance: User memory supports up to 100,000 write cycles, ensuring long-term reliability for data logging and recipe storage.
- Life (No. of Writings): 100,000 times for robust data retention and operational stability.
