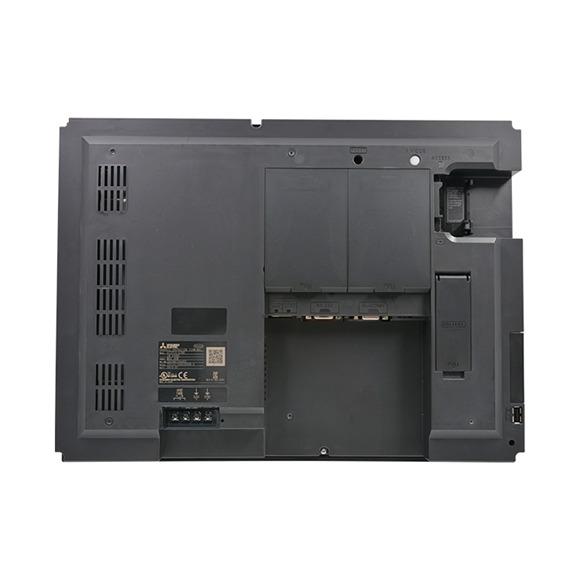

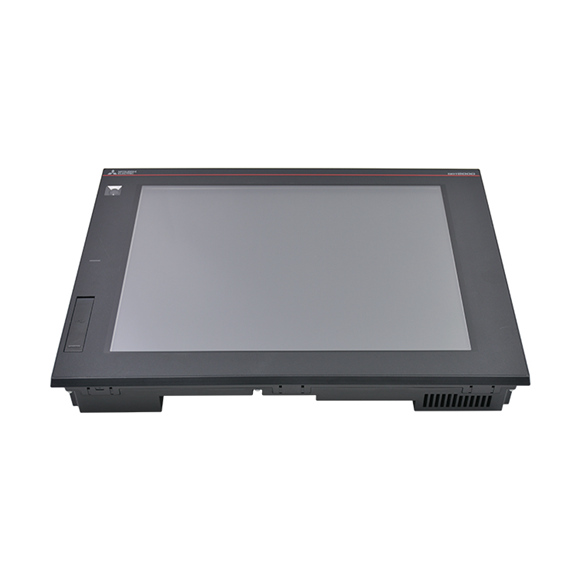

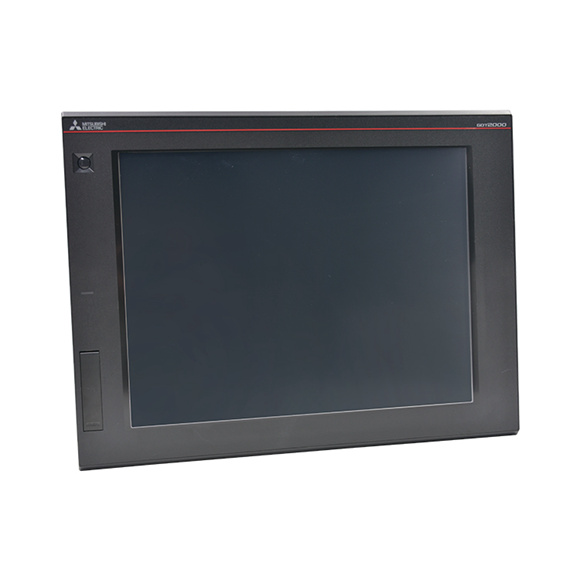

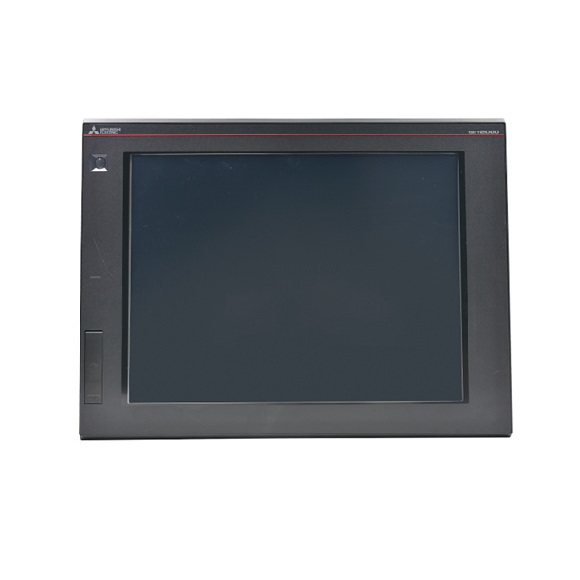

The 15″ Mitsubishi Touch screen HMIs GT2715-XTBD is a flagship GOT2000 series operator interface, engineered for demanding industrial environments. Combining a large 15-inch display with 65,536 colors and a 32-level brightness adjustment, it delivers superior visibility and user interaction. With a full suite of communication ports—including dual USB host channels and an SD card slot—this HMI ensures seamless integration with PLCs, drives, and other automation components. Its IP67F-rated front panel withstands dust and water ingress, while the integrated human sensor enhances energy efficiency by detecting operator presence.
| Parameter |
Specification (GT2715-XTBD) |
| Display Type |
TFT Color LCD |
| Screen Size |
15" |
| Resolution |
1024×768 (XGA) |
| Display Size (W×H) |
304.1 × 228.1 mm |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level |
| Backlight Type |
LED (non-replaceable) |
| Backlight Life |
Approx. 60,000 hours (to 50% brightness at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Key Size |
Minimum 2×2 dots |
| Simultaneous Touch Points |
Maximum 2 points |
| Touch Panel Life |
1 million+ operations (≤0.98N force) |
| Panel Color |
Black |
| Human Sensor Detection Distance |
1 m |
| Human Sensor Detection Temperature |
Difference ≥4°C between body & ambient |
| User Memory ROM |
57 MB |
| User Memory RAM |
128 MB |
| Memory Write Life |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT Lithium |
| Battery Life |
Approx. 5 years (at 25°C) |
| RS-232 Interface |
1ch (D-sub 9-pin male), up to 115200 bps |
| RS-422/485 Interface |
1ch (D-sub 9-pin female), up to 115200 bps |
| Ethernet Interface |
1ch (RJ-45), 10BASE-T/100BASE-TX |
| USB Host |
2ch (USB-A), High-Speed 480Mbps |
| USB Driver |
1ch (USB Mini-B), High-Speed 480Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option units |
| Auxiliary Extension I/F |
For option units |
| Side Interface |
For communication units |
| Buzzer Output |
Single tone (adjustable) |
| Power LED |
2-color (blue, orange) |
| Protective Construction |
Front: IP67F; Panel interior: IP2X |
| External Dimensions (W×H×D) |
397 × 300 × 60 mm |
| Panel Cutout (W×H) |
383.5 × 282.5 mm |
| Weight (excl. brackets) |
4.5 kg |
| Software Package Version |
1.112S or later |
- Connectivity & Expansion: Dual USB host ports enable direct connection to barcode scanners, printers, or USB drives. The SDHC slot supports up to 32GB for data logging and recipe storage. Extension interfaces allow addition of communication or option units for future scalability.
- Environmental Robustness: The front panel meets IP67F standards, offering protection against dust ingress and temporary water immersion. The unit is designed for reliable operation in harsh industrial settings, with a wide operating temperature range (not explicitly listed but typical for GOT2000 series).
- Power & Reliability: The LED backlight ensures long life (60,000 hours) and low power consumption. The lithium backup battery maintains real-time clock accuracy for up to 5 years, ensuring consistent timestamping and data integrity.
- Software Compatibility: Requires GT Designer3 (GOT2000) version 1.112S or later for full functionality, supporting advanced screen design, alarm management, and data logging features.
