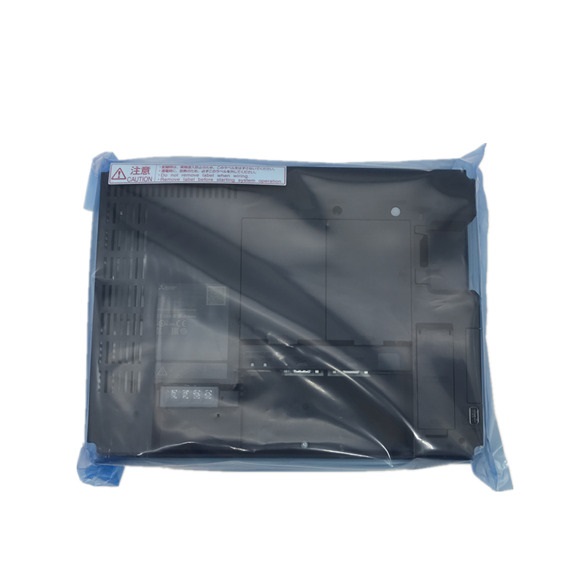

The Mitsubishi GT2712-STBA is a 12.1-inch industrial touch screen HMI from the advanced GOT2000 series, engineered for high-performance machine control and visualization. With its SVGA TFT color LCD delivering 800 x 600 dots resolution and 65,536 color display, this panel provides exceptional clarity for complex process monitoring. The unit integrates a durable analog resistive touch film, supporting up to two simultaneous presses, and is built with a rugged IP67F front bezel to withstand washdown and dusty environments. The LED backlight boasts a remarkable 60,000-hour lifespan at 25°C ambient, ensuring reliable long-term operation. Equipped with a comprehensive suite of communication interfaces, including RS-232, RS-422/485, Ethernet (10BASE-T/100BASE-TX), dual USB ports (Host and Device), and an SDHC-compatible card slot, the GT2712-STBA offers seamless integration into existing automation architectures. Its generous 57MB ROM and 128MB RAM user memory provide ample space for complex screen data and application logic.
| Parameter |
Specification (GT2712-STBA) |
| Display Type |
TFT Color LCD |
| Screen Size |
12.1 inches |
| Resolution |
800 x 600 dots (SVGA) |
| Display Size (W x H) |
246.0 x 184.5 mm |
| Display Colors |
65,536 colors |
| Intensity Adjustment |
32-level |
| Backlight Type |
LED (non-replaceable) |
| Backlight Life |
Approx. 60,000 hours (to 50% brightness at 25°C) |
| Touch Panel Type |
Analog resistive film |
| Touch Panel Life |
1 million+ actuations (≤0.98N force) |
| Panel Color |
Black |
| User Memory (ROM) |
57 MB |
| User Memory (RAM) |
128 MB |
| Memory Write Life |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT lithium battery |
| Battery Life |
Approx. 5 years (at 25°C) |
| RS-232 Interface |
1 ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1 ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1 ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB Host |
2 ch (front/rear), USB-A, High-Speed 480 Mbps |
| USB Device |
1 ch (front), USB Mini-B, High-Speed 480 Mbps |
| SD Card Slot |
1 ch, SDHC compliant (max 32 GB) |
| Extension Interface |
For communication/option unit mounting |
| Auxiliary Extension I/F |
For option unit mounting |
| Side Interface |
For communication unit mounting |
| Buzzer Output |
Single tone (adjustable tone/length) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F (*5,*8); In panel: IP2X |
| External Dimensions (W x H x D) |
316 x 246 x 52 mm |
| Panel Cutout (W x H) |
302 x 228 mm |
| Weight (excl. brackets) |
2.4 kg |
| Application Software |
GT Designer3 Version 1.100E or later |
- Human Sensor Integration: Optional detection distance of 1m with temperature differential ≥4°C between body and ambient air (for select models).
- Key Size & Multi-Touch: Minimum key size of 2x2 dots; supports up to 2 simultaneous touch points for intuitive gesture control.
- Memory Architecture: 57MB non-volatile storage ROM and 128MB high-speed operation RAM ensure smooth screen transitions and data logging.
- Internal Clock & Backup: Accurate to ±90 seconds per month at 25°C, backed by a replaceable GT11-50BAT lithium battery with ~5-year life.
- Communication Versatility: Full-duplex RS-232 and RS-422/485 (up to 115200 bps) plus 10/100 Mbps Ethernet for PLC, inverter, and network integration.
- USB Connectivity: Dual Host ports (front/rear) for peripherals like keyboards or barcode scanners; one Device port for programming and data transfer.
- Expandability: SDHC slot supports up to 32GB for recipe storage and data backup; extension and side interfaces accept optional communication or I/O units.
- Environmental Durability: IP67F front protection against dust and water jets (IP2X at rear panel cutout), suitable for harsh factory floors.
