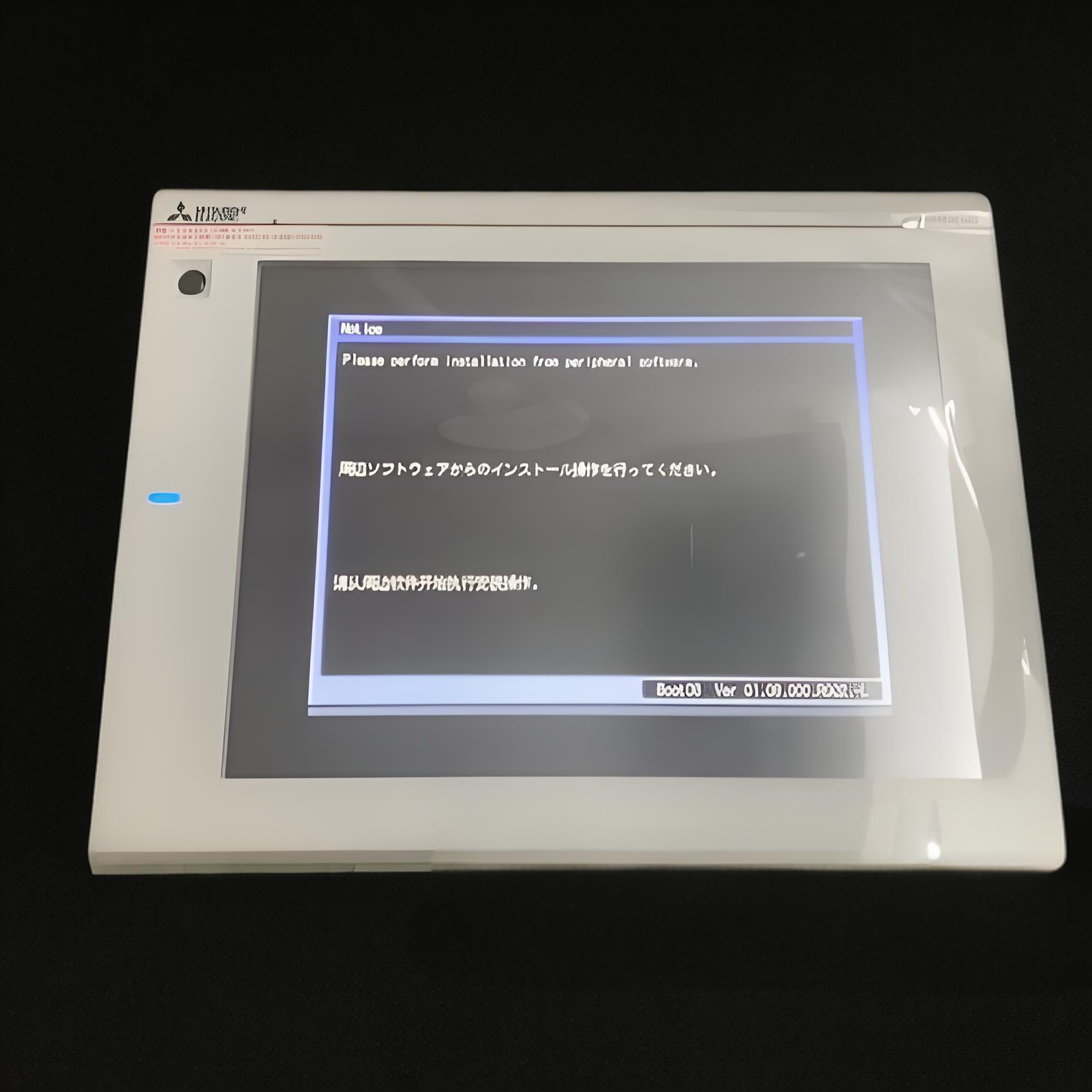

Mitsubishi GT2712-STWA Touch Screen HMI 12.1"

Series#: Mitsubishi

Product Details

Model: 12.1″ Mitsubishi GT2712-STWA Touch Screen HMI – High-performance industrial operator interface.
Display: 12.1-inch TFT color LCD with 800x600 SVGA resolution for crisp, clear visuals.
Durability: Analog resistive touch panel rated for over 1 million touches, IP67F front protection.
Connectivity: Built-in RS-232, RS-422/485, Ethernet, dual USB Host, and SDHC card slot.
Memory: 57MB storage ROM and 128MB operation RAM for robust application handling.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The 12.1″ Mitsubishi Touch screen HMIs GT2712-STWA is a cornerstone of the GOT2000 series, engineered for advanced machine visualization and control. This 12.1-inch SVGA model delivers exceptional clarity and responsiveness, making it ideal for demanding industrial environments where reliability and precision are non-negotiable. With a robust set of built-in interfaces and high memory capacity, the GT2712-STWA ensures seamless integration into existing automation architectures.

Parameter	Specification
Display Type	TFT Color LCD
Screen Size	12.1 inches
Resolution	800 x 600 (SVGA)
Display Size (WxH)	246.0 x 184.5 mm
Display Colors	65,536 colors
Backlight	LED (non-replaceable), ~60,000 hours life
Touch Panel	Analog resistive film, 2-point simultaneous press
Touch Life	≥1 million operations (0.98N max)
Panel Color	White
Protection	Front: IP67F (5,8), Rear: IP2X
External Dimensions (WxHxD)	316 x 246 x 52 mm
Panel Cutout (WxH)	302 x 228 mm
Weight (excl. brackets)	2.4 kg
Memory (ROM)	57 MB
Memory (RAM)	128 MB
Write Life	100,000 times
Internal Clock Accuracy	±90 sec/month @ 25°C
Battery	GT11-50BAT lithium, ~5 years life @ 25°C
Human Sensor Detection	1m distance, ΔT ≥4°C
Application Software	GT Works3 Version 1.100E or later

Interface Connectivity: RS-232 (1ch, D-sub 9-pin male, up to 115200 bps), RS-422/485 (1ch, D-sub 9-pin female, up to 115200 bps), Ethernet (1ch, 10BASE-T/100BASE-TX, RJ-45).
USB & Storage: USB Host (2 channels: 1 front, 1 rear, High-Speed 480Mbps, USB-A), USB Device (1 channel front, High-Speed 480Mbps, USB Mini-B), SD Card (1ch, SDHC compliant, up to 32GB).
Expansion & Audio: Extension Interface for communication/option units, Auxiliary Extension I/F for option units, Side Interface for communication unit, Buzzer (single tone, adjustable).
Indicators & Compliance: Power LED (2 colors: blue/orange), Protective Construction IP67F front / IP2X rear, Intensity Adjustment 32-level.
