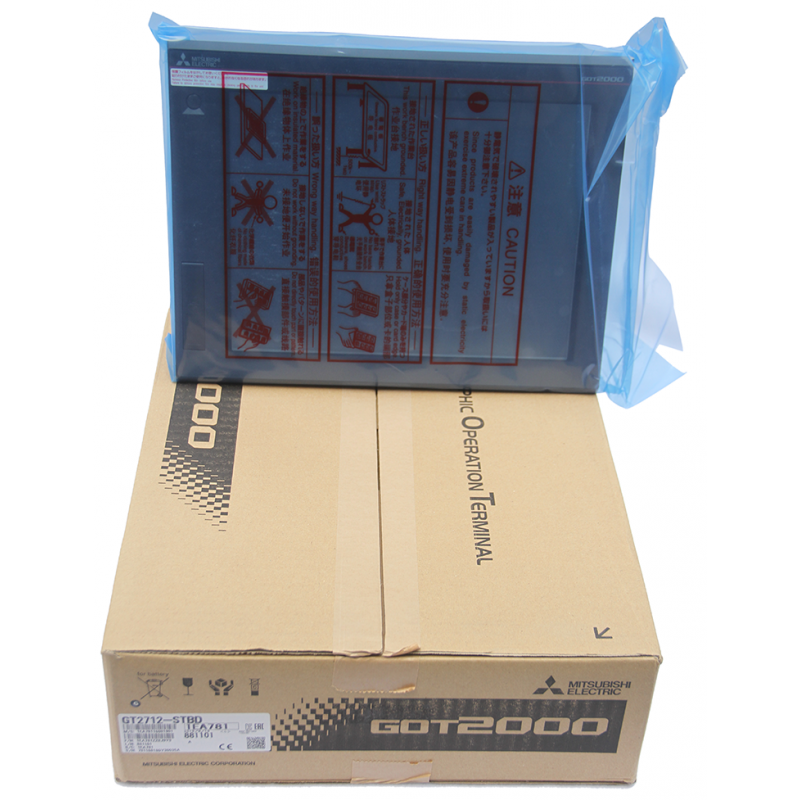

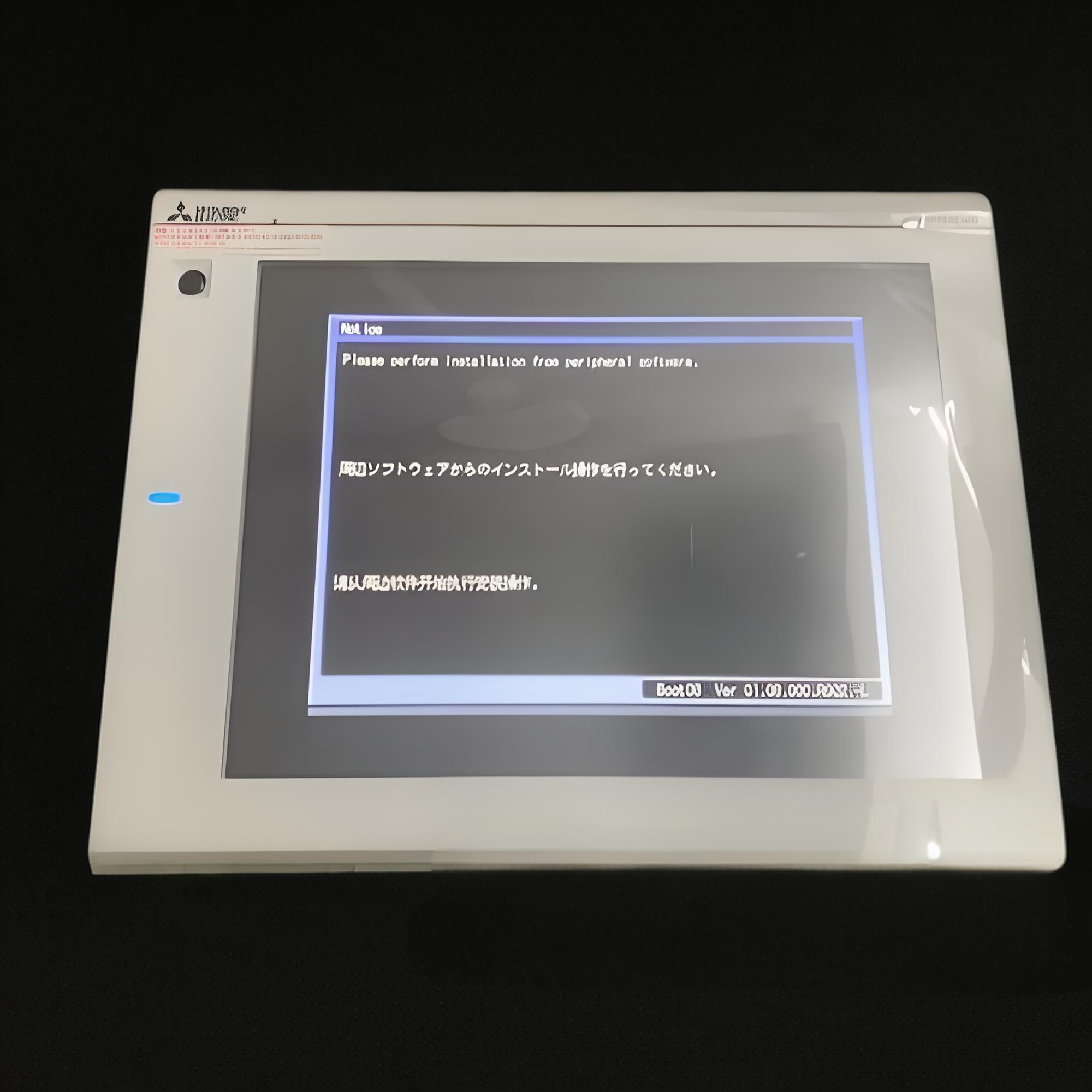

The 12.1″ Mitsubishi Touch screen HMIs GT2712-STWD is a state-of-the-art industrial HMI designed for demanding automation environments. Featuring a 12.1-inch TFT color LCD with SVGA resolution (800 x 600 dots), this unit delivers crisp graphics and responsive touch control. With 65,536 colors, 32-level brightness adjustment, and a long-life LED backlight (approx. 60,000 hours), it ensures reliable operation in harsh conditions. The GT2712-STWD includes versatile connectivity: RS-232, RS-422/485, Ethernet, dual USB (Host and Device), and an SD card slot (up to 32 GB). Its analog resistive touch panel supports up to 2 simultaneous presses and has a life of 1 million operations. The front panel meets IP67F protection (when installed in a panel), and the unit weighs only 2.4 kg (excluding mounting brackets). It is powered by GT Designer3 software (version 1.100E or later) and features 57 MB storage ROM and 128 MB operation RAM.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
12.1" |
| Resolution (Dots) |
800 x 600 SVGA |
| Display Size (W x H) mm |
246.0 x 184.5 |
| Display Colors |
65,536 colors |
| Intensity Adjustment |
32-level |
| Backlight Type |
LED (not replaceable) |
| Backlight Life |
Approx. 60,000 hours (to 50% brightness at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 million times or more (0.98N or less) |
| Simultaneous Press |
Maximum 2 points |
| Panel Color |
White |
| Human Sensor Detection Distance |
1 m |
| Detection Temperature |
Temperature difference between human body and ambient air: 4°C or higher |
| Memory (ROM) |
57 MB (storage) |
| Memory (RAM) |
128 MB (operation) |
| Memory Life (No. of Writings) |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT lithium battery |
| Battery Life |
Approx. 5 years (at 25°C) |
| RS-232 Interface |
1 ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1 ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1 ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB Host |
1 ch (rear), USB-A, High-Speed 480 Mbps |
| USB Device |
1 ch (rear), USB Mini-B, High-Speed 480 Mbps |
| SD Card Slot |
1 ch, SDHC compliant (max 32 GB) |
| Extension Interface |
For communication unit/option unit mounting |
| Auxiliary Extension I/F |
For option unit mounting |
| Side Interface |
For communication unit mounting |
| Buzzer Output |
Single tone (adjustable tone and length) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F (*5,*8), In control panel: IP2X |
| External Dimensions (W x H x D) mm |
316 x 246 x 52 |
| Panel Cutout (W x H) mm |
302 x 228 |
| Weight (excl. mounting brackets) |
2.4 kg |
| Application Software |
GT Designer3 (1.100E or later) |
- Character Display: 16-dot standard font: 50 chars x 37 lines (2-byte); 12-dot standard font: 66 chars x 50 lines (2-byte).
- Touch Key Size: Minimum 2 x 2 dots (per key).
- Power Supply: Refer to product manual for voltage and current ratings.
- Environmental Ratings: Designed for industrial use with wide temperature and humidity tolerance.
