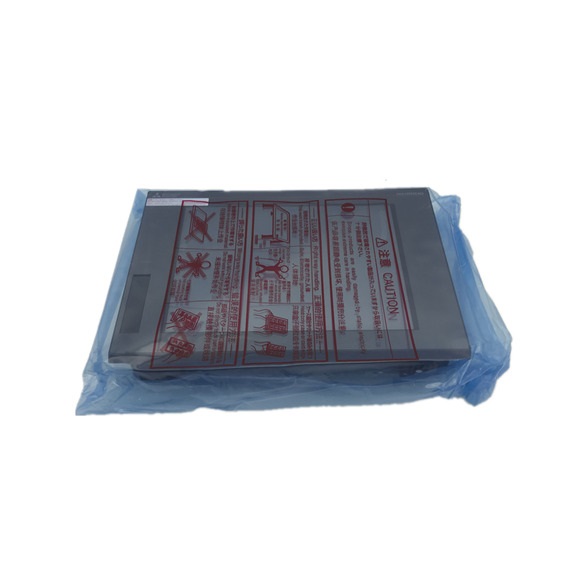

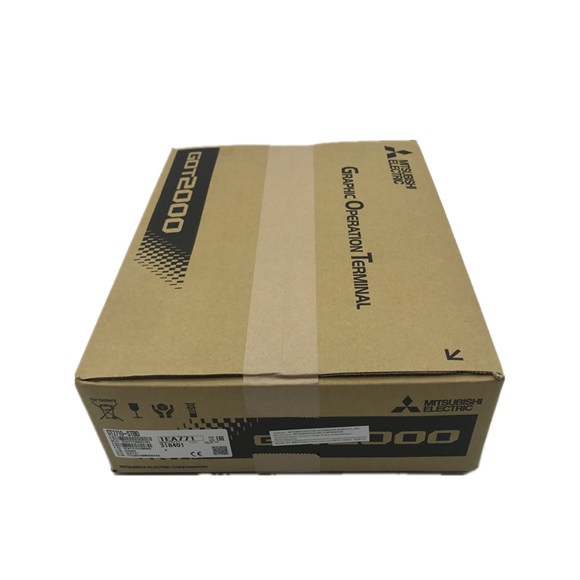

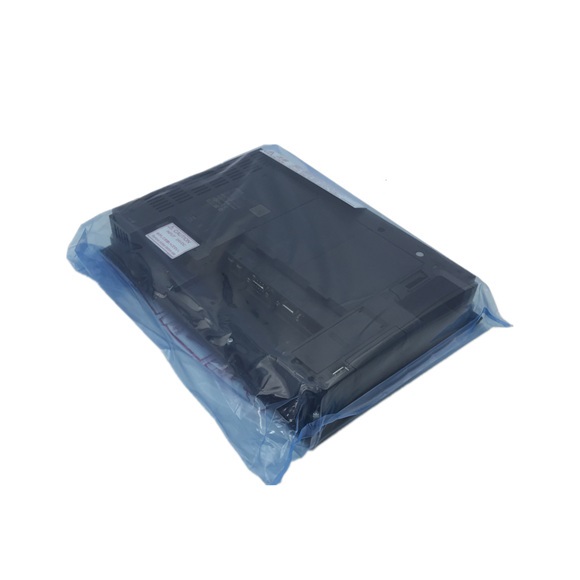

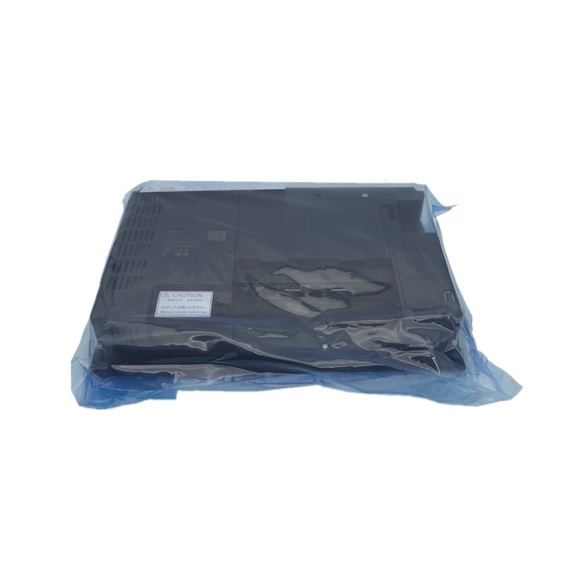

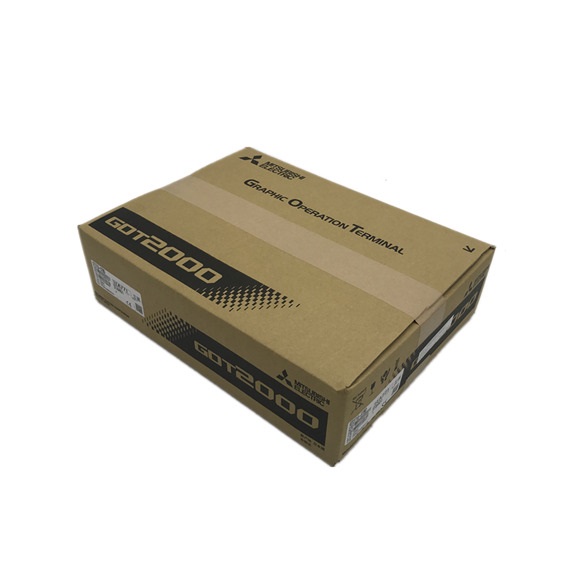

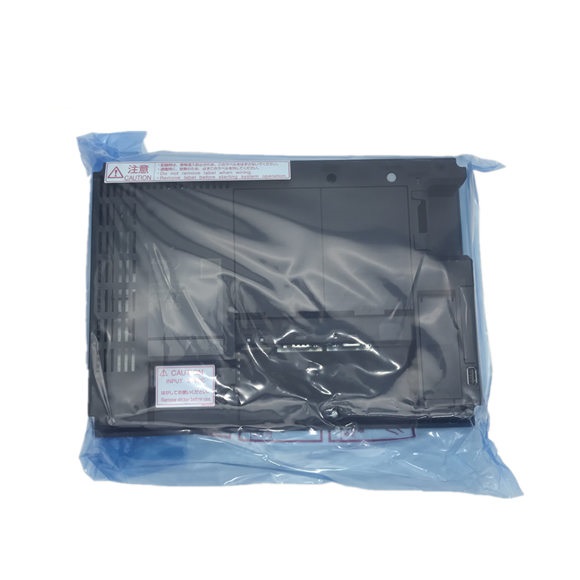

The 10.4″ Mitsubishi Touch screen HMI GT2710-VTWD is a robust and reliable operator interface designed for demanding industrial control systems. This model offers a perfect balance of display size and performance, making it ideal for machine builders and system integrators who require a proven, high-quality HMI. With its bright 10.4-inch TFT display and extensive communication capabilities, the GT2710-VTWD ensures seamless integration and efficient machine operation.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
10.4" |
| Resolution (Dots) |
640 x 480 (VGA) |
| Display Size (W x H) mm |
211.1 x 158.4 |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level Adjustment |
| Backlight Type |
LED (Not Replaceable) |
| Backlight Life |
Approx. 60,000 hours or more (at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 Million times or more (0.98N or less) |
| Panel Color |
Black |
| Memory (ROM) |
57 MB (Storage) |
| Memory (RAM) |
128 MB (Operation) |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery |
GT11-50BAT Lithium Battery (Life: ~5 years at 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
2ch (front/rear), High-Speed 480Mbps, USB-A |
| USB (Device) |
1ch (front), High-Speed 480Mbps, USB Mini-B |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Protective Construction |
Front: IP67F, In control panel: IP2X |
| External Dimensions (W x H x D) mm |
303 x 218 x 52 |
| Panel Cutout (W x H) mm |
289 x 200 |
| Weight (without mounting brackets) |
2.1 kg |
| Application Software Package |
GT Works3 Version 1.100E or later |
- Display Performance: The 10.4-inch TFT LCD delivers vibrant 65,536-color graphics with 32-level intensity adjustment, ensuring excellent readability even in challenging lighting conditions. The VGA resolution (640 x 480) provides crisp text and detailed graphics for complex machine interfaces.
- Robust Connectivity: Equipped with a comprehensive set of industrial interfaces including RS-232, RS-422/485, Ethernet, and dual USB ports. This allows for flexible communication with PLCs, drives, and other automation devices, simplifying system architecture.
- Durable Construction: The front panel is rated IP67F, offering superior protection against dust and water ingress, making the GT2710-VTWD suitable for washdown environments or harsh factory floors. The analog resistive touch panel is designed for over 1 million actuations, ensuring long-term reliability.
- Extended Backlight Life: The LED backlight boasts a lifespan of approximately 60,000 hours, significantly reducing the need for replacement and minimizing downtime. This contributes to a lower total cost of ownership over the product's lifecycle.
- Ample Memory & Expansion: With 57 MB of storage ROM and 128 MB of operation RAM, the HMI can handle large, complex projects. The SD card slot supports up to 32 GB for data logging and recipe storage, while the extension interface allows for additional communication or option units.
