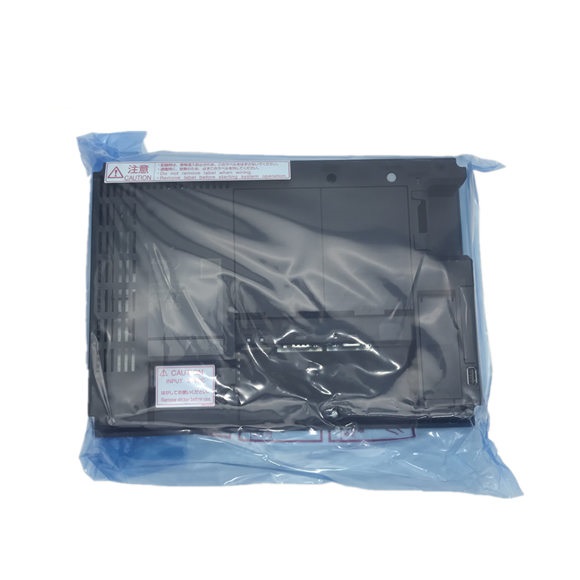

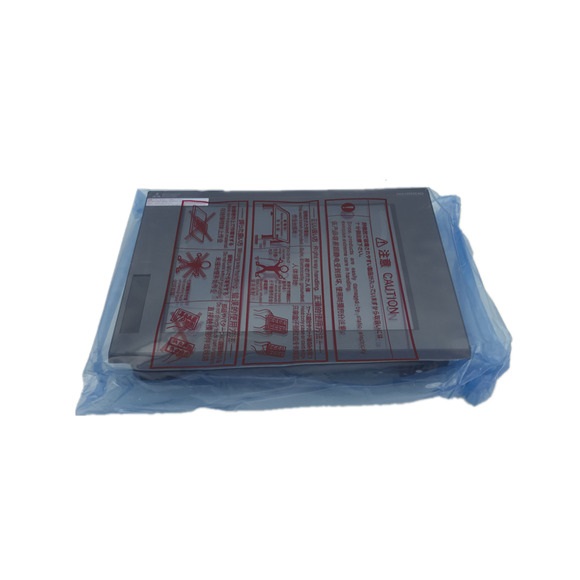

The 10.4″ Mitsubishi Touch screen HMIs GT2710-VTWA is a flagship model in the GOT2000 series, engineered for superior visualization and control in industrial environments. This unit combines a high-visibility 10.4-inch screen with a powerful processing core, making it ideal for applications requiring real-time monitoring, data logging, and multi-protocol communication. Its advanced human sensor technology and IP67F protection ensure reliable operation in harsh conditions, while the 32-level brightness adjustment and 65,536 color display deliver exceptional readability.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
10.4″ |
| Resolution (Dots) |
640 × 480 (VGA) |
| Display Size (W x H) mm |
211.1 × 158.4 |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level |
| Backlight Type |
LED (non-replaceable) |
| Backlight Life |
Approx. 60,000 hours or more (at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 Million times or more (0.98N or less) |
| Panel Color |
White |
| Human Sensor Detection Distance |
1m |
| Detection Temperature |
Temperature difference ≥ 4°C |
| Memory User Memory (ROM) |
57MB |
| Memory Operation (RAM) |
128MB |
| Memory Life (Writes) |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT Lithium Battery |
| Battery Life |
Approx. 5 years (at 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
2ch (front/rear), High-Speed 480Mbps, USB-A |
| USB (Driver) |
1ch (front), High-Speed 480Mbps, USB Mini-B |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option unit mounting |
| Auxiliary Extension I/F |
For option unit mounting |
| Side Interface |
For communication unit mounting |
| Buzzer Output |
Single tone (adjustable tone/length) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F, In panel: IP2X |
| External Dimensions (W×H×D) mm |
303 × 218 × 52 |
| Panel Cutout (W×H) mm |
289 × 200 |
| Weight (excl. brackets) kg |
2.1 |
| Application Software Package |
1.100E or later |
- High-Performance Processor: The GT2710-VTWA leverages a powerful CPU for rapid screen transitions and complex data handling, ensuring minimal latency in critical operations.
- Advanced Connectivity Suite: Includes dual USB host ports (front/rear) for easy data transfer via USB drives, plus a dedicated USB Mini-B for high-speed PC connection.
- Robust Environmental Rating: With an IP67F front panel, this HMI is protected against dust and water ingress, making it suitable for washdown and harsh industrial environments.
- Extended Memory Capacity: 57MB of flash ROM for project storage and 128MB of RAM for runtime operations enable sophisticated applications with extensive recipe and alarm data.
- Human Sensor Technology: Integrated sensor detects operator presence up to 1m away, allowing for intelligent screen wake-up or power-saving features.
- Multi-Protocol Support: Built-in RS-232, RS-422/485, and Ethernet interfaces allow direct connection to a wide range of PLCs, drives, and controllers without additional hardware.
