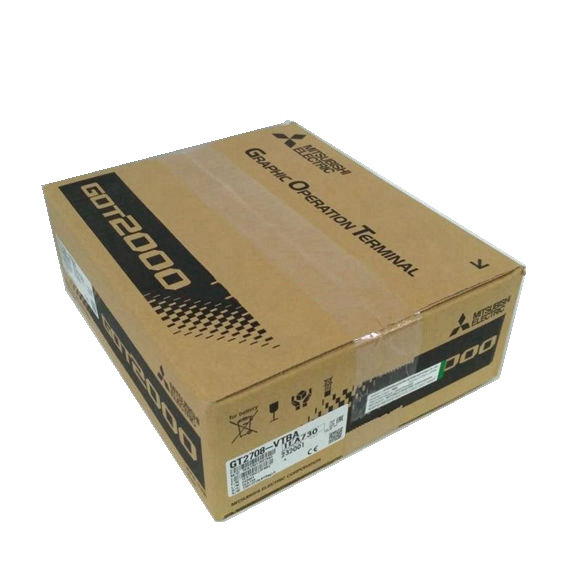

The 8.4″ Mitsubishi Touch screen HMI GT2708-VTBA is a compact yet powerful operator interface from the renowned GOT2000 series, engineered for demanding industrial automation. Featuring an 8.4-inch TFT color LCD with SVGA resolution (800 x 600 dots), this model provides exceptional visual clarity and responsive touch control. Its rugged IP67F front construction withstands dust and water ingress, while the integrated human sensor and long-life LED backlight ensure energy efficiency and reduced maintenance. With a rich set of built-in communication interfaces—including Ethernet, dual USB, and serial ports—the GT2708-VTBA seamlessly integrates into existing control networks, making it the perfect choice for machine builders and system integrators seeking reliability and performance.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
8.4″ |
| Resolution |
800 x 600 (SVGA) |
| Display Size (W x H) mm |
170.9 x 128.2 |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level |
| Backlight Type |
LED (Non-replaceable) |
| Backlight Life |
≥60,000 hours (to 50% brightness at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
≥1 million operations (0.98N force) |
| Panel Color |
Black |
| Human Sensor Detection Distance |
1m |
| Human Sensor Detection Temperature |
ΔT ≥ 4°C (human vs. ambient) |
| User Memory (ROM) |
57 MB |
| User Memory (RAM) |
128 MB |
| Memory Write Life |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT Lithium |
| Battery Life |
Approx. 5 years (at 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB (Host) |
2ch (front/rear), USB-A, High-Speed 480Mbps |
| USB (Driver) |
1ch (front), USB Mini-B, High-Speed 480Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option units |
| Auxiliary Extension I/F |
For option unit mounting |
| Side Interface |
For communication unit mounting |
| Buzzer Output |
Single tone (adjustable tone/length) |
| Power LED |
2 colors: Blue, Orange |
| Protective Construction |
Front: IP67F (*5,*8); Panel: IP2X |
| External Dimensions (W x H x D) mm |
241 x 194 x 52 |
| Panel Cutout (W x H) mm |
227 x 176 |
| Weight (excluding brackets) |
1.5 kg |
| Application Software Package |
1.130L or later |
- Human Sensor Technology: Automatically dims the display when no operator is near, reducing power consumption and extending LED backlight life.
- Memory Architecture: 57 MB ROM for project storage and 128 MB RAM for seamless real-time operation, ensuring smooth graphics and data handling.
- Industrial-Grade Durability: IP67F front protection withstands water jets and dust, while the panel meets IP2X for rear enclosure safety.
- Multi-Protocol Connectivity: Built-in Ethernet, RS-232, and RS-422/485 ports support direct connection to Mitsubishi PLCs, drives, and third-party devices.
- High-Speed USB: Dual USB host ports (480 Mbps) for fast data logging, firmware updates, and peripheral connection (keyboard, barcode scanner).
- SD Card Expansion: SDHC-compatible slot supports up to 32 GB for recipe storage, alarm history, and screen data backup.
- Precision Touch: Analog resistive film supports 2-point simultaneous press with a life of over 1 million actuations, ideal for frequent operator use.
