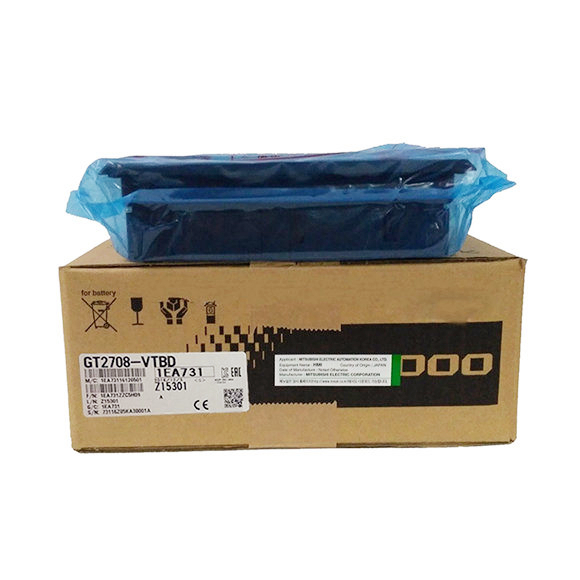

The GT2708-VTBD is a compact yet powerful 8.4-inch Mitsubishi GOT2000 series Human Machine Interface designed for demanding industrial automation applications. Featuring a vibrant SVGA TFT color LCD with 800 x 600 dot resolution and 65,536 colors, this unit delivers exceptional clarity and readability. Its robust analog resistive touch panel supports precise input with a minimum key size of 2 x 2 dots and a rated mechanical life of over 1 million operations. Equipped with a comprehensive set of built-in communication interfaces—including RS-232, RS-422/485, 10BASE-T/100BASE-TX Ethernet, dual USB Host ports, a USB Device port (Mini-B), and an SDHC-compliant card slot—the GT2708-VTBD ensures seamless connectivity to PLCs, drives, and other control devices. The front panel is rated IP67F for dust and water ingress protection, while the LED backlight boasts a 60,000-hour service life. With 57 MB of ROM storage and 128 MB of RAM, this HMI is ready for complex visualization and data logging tasks.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
8.4″ |
| Resolution (Dots) |
800 x 600 (SVGA) |
| Display Size (W x H) mm |
170.9 x 128.2 |
| Number of Characters (16-dot) |
50 chars x 37 lines (2-byte) |
| Number of Characters (12-dot) |
66 chars x 50 lines (2-byte) |
| Display Colors |
65,536 |
| Intensity Adjustment |
32-level |
| Backlight Type |
LED (not replaceable) |
| Backlight Life |
Approx. 60,000 hours (to 50% intensity at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Key Size |
Minimum 2 x 2 dots |
| Touch Panel Simultaneous Press |
Maximum 2 points |
| Touch Panel Life |
1 million times or more (0.98N or less) |
| Panel Color |
Black |
| Human Sensor Detection Distance |
1 m |
| Human Sensor Detection Temperature |
≥4°C difference between body and ambient |
| Memory – User Storage (ROM) |
57 MB |
| Memory – Operation (RAM) |
128 MB |
| Memory Life (Writes) |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month (25°C) |
| Battery Type |
GT11-50BAT lithium |
| Battery Life |
Approx. 5 years (25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), 4800–115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), 4800–115200 bps |
| Ethernet Interface |
1ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB Host |
2ch (front/rear), USB-A, High-Speed 480 Mbps |
| USB Device (Driver) |
1ch (front), USB Mini-B, High-Speed 480 Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32 GB) |
| Extension Interface |
For communication/option unit |
| Auxiliary Extension I/F |
For option unit mounting |
| Side Interface |
For communication unit mounting |
| Buzzer Output |
Single tone (adjustable tone, length) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F; In panel: IP2X |
| External Dimensions (W x H x D) mm |
241 x 194 x 52 |
| Panel Cutout (W x H) mm |
227 x 176 |
| Weight (excl. brackets) |
1.5 kg |
| Application Software Package |
1.130L or later |
- Communication Flexibility: The GT2708-VTBD supports multi-protocol connectivity via RS-232, RS-422/485, and Ethernet, enabling direct integration with Mitsubishi and third-party controllers.
- Data Logging & Backup: The SDHC card slot (up to 32 GB) and dual USB Host ports allow for recipe storage, alarm history logging, and firmware updates without a PC.
- Ruggedized Design: IP67F front protection and a lightweight 1.5 kg chassis make it suitable for washdown environments, food processing, and machine tool applications.
- User Memory Architecture: 57 MB of non-volatile ROM for project storage and 128 MB of RAM for runtime performance ensure smooth operation even with complex screens.
- Long-Life Components: The LED backlight (60,000 hours) and 1 million-cycle touch panel reduce maintenance downtime and total cost of ownership.
- Advanced HMI Features: Built-in human sensor for automatic screen wake/sleep, 32-level brightness adjustment, and a configurable buzzer enhance operator interaction.
