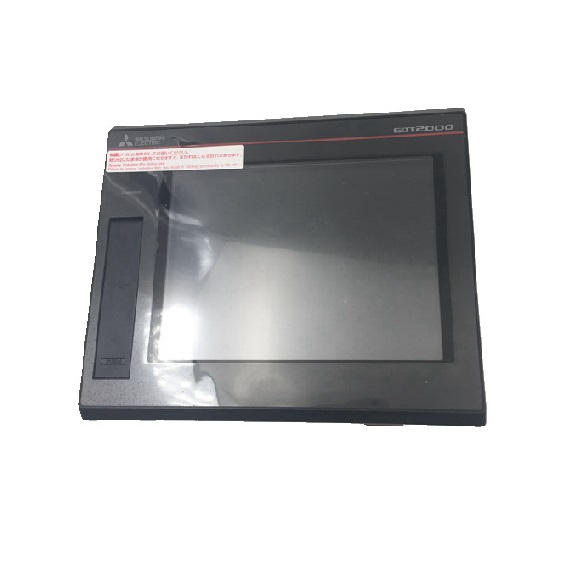

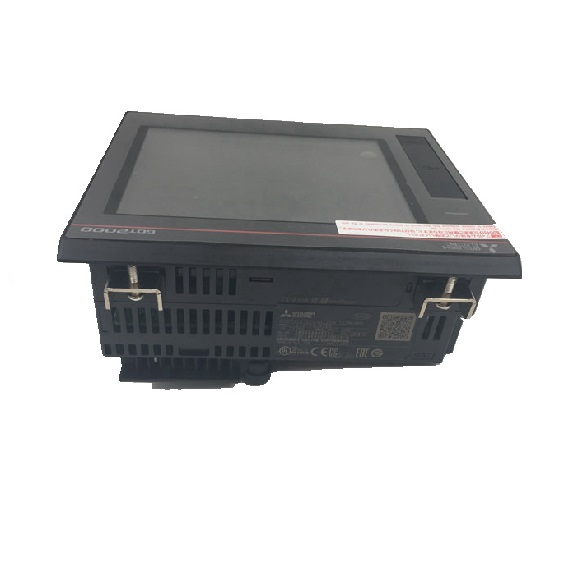

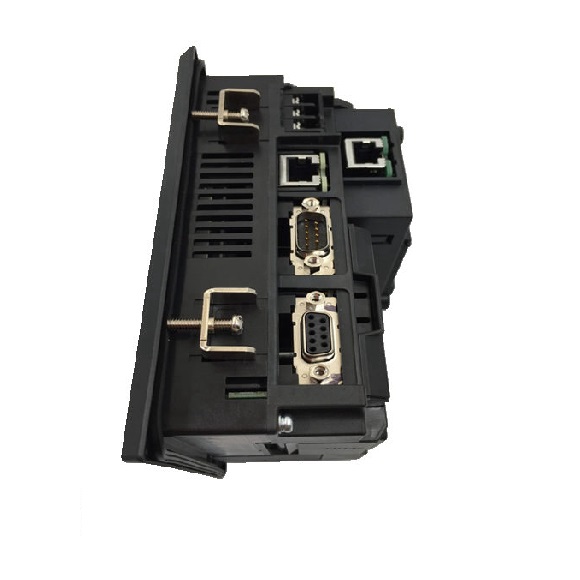

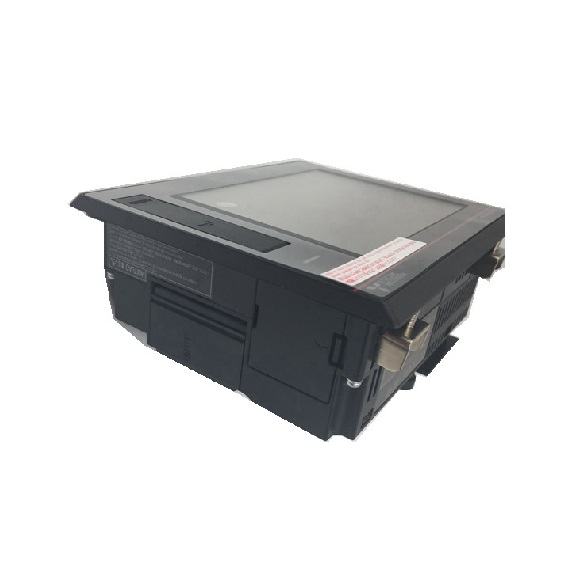

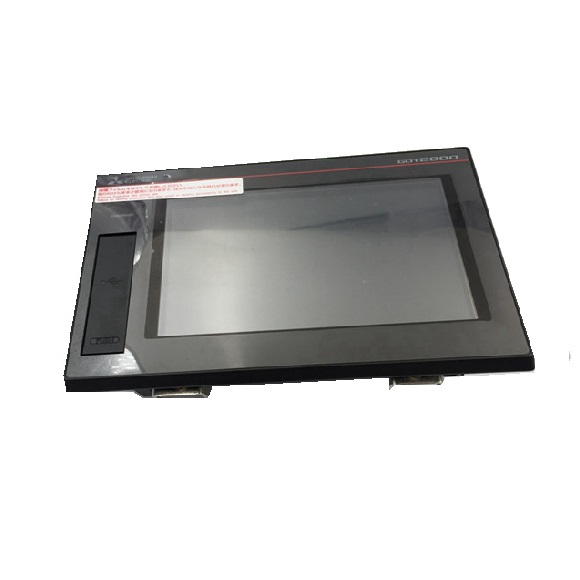

The GT2705-VTBD is a high-reliability 5.7-inch touch screen HMI from the Mitsubishi GOT 2000 Series GT27 family, engineered for demanding industrial automation tasks requiring a compact yet powerful operator interface. With a 640×480 VGA TFT color display delivering 65,536 colors and 32-level intensity adjustment, this unit ensures crisp visual feedback in any lighting condition. Its analog resistive touch panel supports precise input with a minimum key size of 2×2 dots and simultaneous two-point detection, backed by a service life exceeding 1 million presses. The front bezel meets IP67F standards (when properly mounted in a panel with IP2X rear), making it resistant to dust and water ingress. Connectivity is comprehensive: one RS-232 (D-sub 9-pin male), one RS-422/485 (D-sub 9-pin female), one 10BASE-T/100BASE-TX Ethernet (RJ-45), two USB host ports (one front, one rear) at 480 Mbps, one USB device port (front) at 480 Mbps, and one SDHC-compatible card slot supporting up to 32 GB. Additional expansion interfaces allow mounting communication or option units. The HMI integrates a human sensor with a 1-meter detection range and a temperature differential requirement of 4°C, plus a single-tone buzzer and a bi-color (blue/orange) power LED. Internal clock accuracy is ±90 seconds per month at 25°C, backed by a GT11-50BAT lithium battery with approximately 5-year life. The unit measures 241 mm (W) x 194 mm (H) x 52 mm (D), requires a panel cutout of 227 mm x 176 mm, and weighs just 1.0 kg (excluding mounting brackets). Application software package version 1.130L or later is required for configuration. This model is 100% original, new, and ready for immediate shipment.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
5.7″ |
| Resolution |
640 x 480 (VGA) |
| Display Size (W x H) |
115.2 mm x 86.4 mm |
| Display Colors |
65,536 colors |
| Intensity Adjustment |
32 levels |
| Backlight Type / Life |
LED (non-replaceable) / Approx. 60,000 hours to 50% brightness at 25°C |
| Touch Panel Type |
Analog resistive film |
| Touch Panel Life |
1 million+ presses (0.98N or less) |
| Panel Color |
Black |
| Human Sensor Detection Distance |
1 m |
| Human Sensor Detection Temperature |
4°C difference between body and ambient |
| User Memory (ROM) |
57 MB |
| User Memory (RAM) |
128 MB |
| Memory Life (Writes) |
100,000 times |
| Internal Clock Accuracy |
±90 sec/month at 25°C |
| Battery Type / Life |
GT11-50BAT lithium / Approx. 5 years at 25°C |
| RS-232 Interface |
1 ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1 ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1 ch, 10BASE-T/100BASE-TX, RJ-45 |
| USB Host |
2 ch (front & rear), USB-A, High-Speed 480 Mbps |
| USB Device |
1 ch (front), USB Mini-B, High-Speed 480 Mbps |
| SD Card Slot |
1 ch, SDHC compliant (max 32 GB) |
| Extension Interface |
For communication/option unit |
| Auxiliary Extension I/F |
For option unit |
| Side Interface |
For communication unit |
| Buzzer Output |
Single tone (adjustable tone/length) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F, Rear: IP2X (in panel) |
| External Dimensions (W x H x D) |
241 mm x 194 mm x 52 mm |
| Panel Cutout (W x H) |
227 mm x 176 mm |
| Weight (excl. brackets) |
1.0 kg |
| Application Software |
1.130L or later |
- Memory Architecture: 57 MB non-volatile ROM for project storage and 128 MB RAM for runtime operation, ensuring smooth handling of large HMI projects and data logging.
- Connectivity Suite: Full industrial interface set including dual USB host ports (front/rear), USB device, RS-232, RS-422/485, Ethernet, and SD card slot for flexible integration with PLCs, drives, and networks.
- Environmental Resilience: IP67F front protection (when panel-mounted) withstands water jets and dust ingress; rated for ambient temperatures from 0°C to 55°C and humidity up to 85% RH (non-condensing).
- Human Sensor Feature: Built-in motion detection (1 m range, 4°C temp differential) enables automatic screen wake/sleep for energy savings and extended backlight life.
- Touch Panel Performance: Analog resistive technology supports gloved-hand operation, minimum 2×2 dot key size, and dual-point simultaneous press for intuitive control.
- Backup Power: GT11-50BAT lithium battery maintains clock and SRAM data for approximately 5 years at 25°C, ensuring reliable operation without frequent maintenance.
