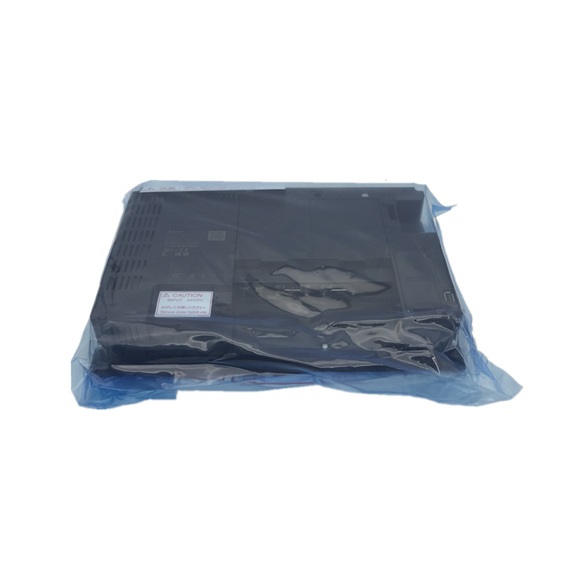

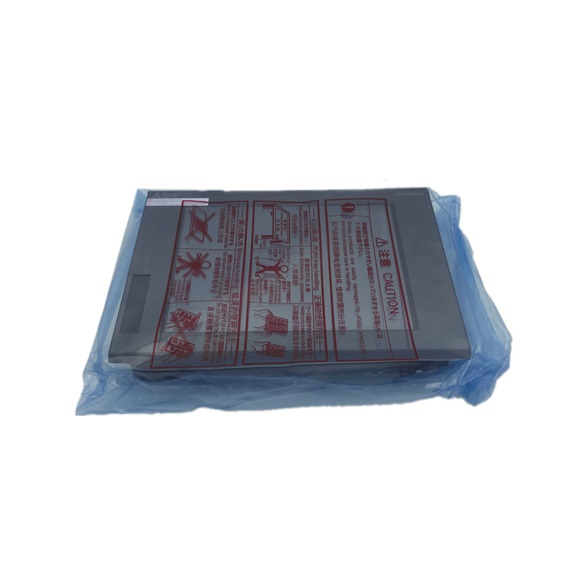

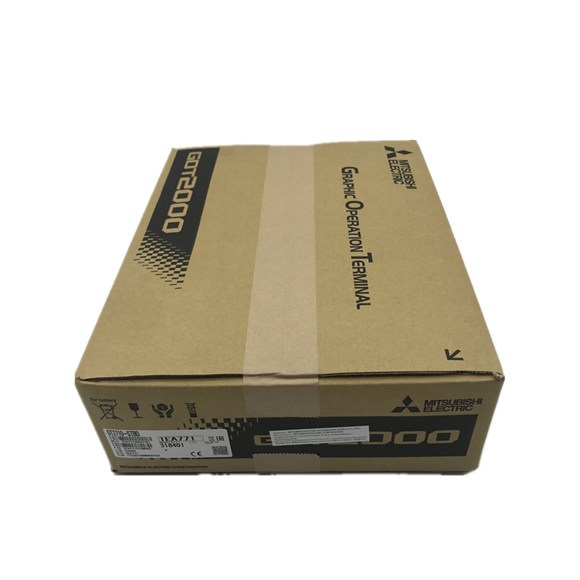

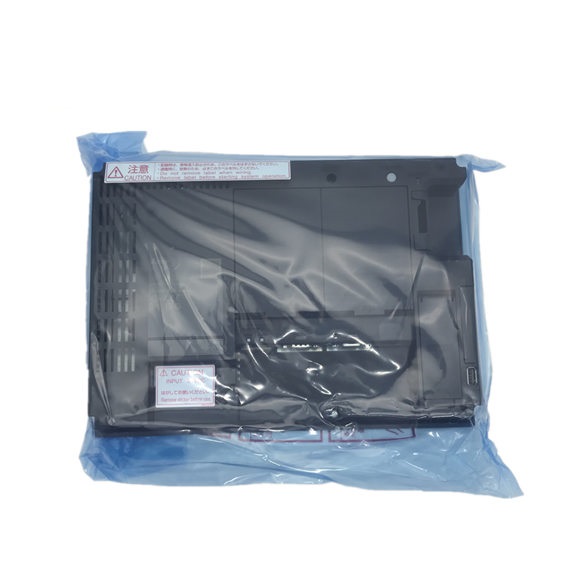

The GOT 2000 SERIES GT2710-STBA is a state-of-the-art 10.4-inch Mitsubishi touch screen HMI designed to meet the rigorous demands of modern industrial control systems. As part of the GOT2000 series, this model delivers exceptional graphical performance with a 65536-color TFT LCD display and a responsive analog resistive touch interface. With a robust set of built-in communication interfaces including RS-232, RS-422/485, Ethernet, and USB, the GT2710-STBA ensures seamless integration into a wide variety of automation architectures. Its IP67F-rated front panel makes it ideal for wash-down environments, while the long-life LED backlight (60,000 hours) and high-reliability touch panel guarantee years of trouble-free operation. Below are the detailed technical specifications.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Screen Size |
10.4″ |
| Resolution (Dots) |
640 × 480 (VGA) |
| Display Size (W x H) mm |
211.1 × 158.4 |
| Number of Characters |
16-dot: 40 x 30; 12-dot: 53 x 40 (2-byte) |
| Display Colors |
65,536 Colors |
| Intensity Adjustment |
32-Level Adjustment |
| Backlight Type |
LED (Not Replaceable) |
| Backlight Life |
Approx. 60,000 hours or more (to 50% intensity at 25°C) |
| Touch Panel Type |
Analog Resistive Film |
| Touch Panel Life |
1 Million times or more (0.98N or less) |
| Panel Color |
Black |
| Memory (ROM) |
57 MB (Storage) |
| Memory (RAM) |
128 MB (Operation) |
| Memory Life (Writes) |
100,000 Times |
| Internal Clock Accuracy |
±90 sec/month (at 25°C) |
| Battery Type |
GT11-50BAT Lithium Battery |
| Battery Life |
Approx. 5 years (at 25°C) |
| RS-232 Interface |
1ch, D-sub 9-pin (male), up to 115200 bps |
| RS-422/485 Interface |
1ch, D-sub 9-pin (female), up to 115200 bps |
| Ethernet Interface |
1ch, RJ-45, 10BASE-T/100BASE-TX |
| USB (Host) |
2ch (front/rear), USB-A, High-Speed 480Mbps |
| USB (Driver) |
1ch (front), USB Mini-B, High-Speed 480Mbps |
| SD Card Slot |
1ch, SDHC compliant (max 32GB) |
| Extension Interface |
For communication/option unit mounting |
| Auxiliary Extension I/F |
For option unit mounting |
| Side Interface |
For communication unit mounting |
| Buzzer Output |
Single tone (adjustable tone/length) |
| Power LED |
2 colors (blue, orange) |
| Protective Construction |
Front: IP67F (*5,*8); In control panel: IP2X |
| External Dimensions (W×H×D) mm |
303 × 218 × 52 |
| Panel Cutout (W×H) mm |
289 × 200 |
| Weight (kg) |
2.1 (Excludes Mounting Brackets) |
| Application Software Package |
1.100E or later |
- Human Sensor Detection: Integrated human sensor detects presence up to 1 meter with a temperature differential of ≥4°C between body and ambient air.
- Simultaneous Touch Points: Supports up to 2 simultaneous touch points for basic multi-touch gestures.
- Panel Cutout Precision: Designed for a standardized panel cutout of 289 mm x 200 mm, ensuring easy retrofit or new installation.
- Environmental Resilience: IP67F front protection allows operation in wet or dusty conditions, while IP2X rear safeguards internal components.
- High-Speed Data Transfer: USB Host and Device interfaces operate at 480 Mbps High-Speed for rapid data logging and firmware updates.
- Long-Life Backlight: The LED backlight is rated for over 60,000 hours, significantly reducing maintenance intervals in continuous operation.
