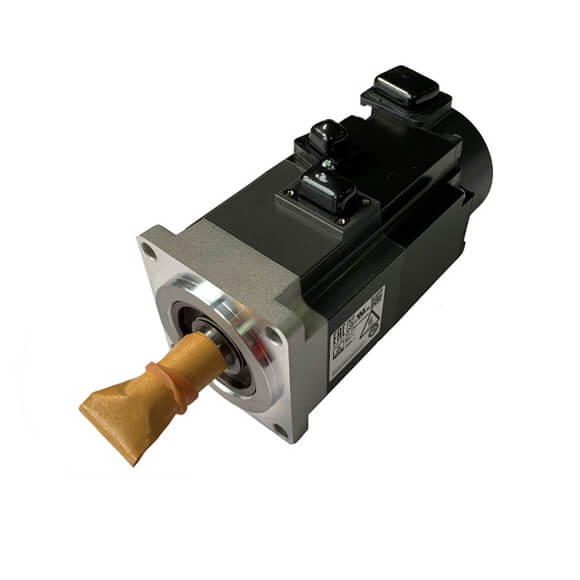

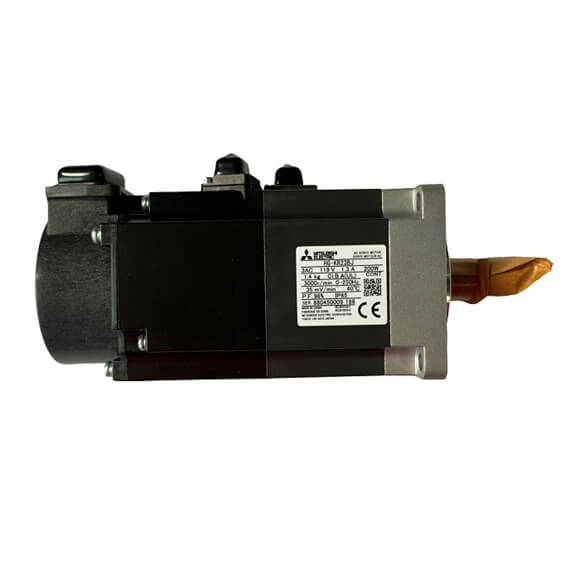

Mitsubishi MELSERVO-J4 Servomotor 200W HG-KR23BJ

Series#: Mitsubishi

Product Details

MITSUBISHI MELSERVO-J4 SERVOMOTOR 200W HG-KR23BJ – Low inertia, high-performance AC servo motor for precision motion control.
Rated output of 0.2 kW (200W) with rated torque of 0.64 Nm, ideal for compact automation applications.
Maximum speed of 6000 r/min and instantaneous permissible speed of 6900 r/min for rapid acceleration and deceleration.
Equipped with a 23-bit absolute encoder (B series) for high-resolution position feedback.
Compact design with a mass of only 0.91 kg, saving space in demanding machinery layouts.
Compatible with MR-J4 series servo amplifiers for seamless integration into existing MELSERVO systems.

Specification

The MITSUBISHI MELSERVO-J4 SERVOMOTOR 200W HG-KR23BJ is a low-inertia, small-capacity AC servo motor engineered for high-speed, high-precision applications in industrial automation. As part of the HG-KR series, this motor delivers a rated output of 0.2 kW and a rated torque of 0.64 N·m, with a maximum torque of 2.2 N·m to handle peak loads during acceleration. Its maximum speed of 6000 r/min and instantaneous permissible speed of 6900 r/min enable rapid positioning cycles, while the 23-bit absolute encoder ensures exceptional accuracy. The motor operates reliably in ambient temperatures from 0°C to 40°C and humidity levels between 10% and 80% RH (non-condensing), with storage capabilities from -15°C to 70°C. With a radial load capacity of 88 N and thrust load capacity of 59 N at the shaft extension (L=25 mm), it is built for robust mounting in compact machinery. The HG-KR23BJ is designed for continuous duty and is fully compatible with MR-J4 series amplifiers, making it a drop-in upgrade for demanding servo systems.

Specification	Unit	HG-KR23BJ Value
Model	—	HG-KR23BJ
Series	—	HG-KR (Low Inertia / Small Capacity)
Rated Output	kW	0.2
Rated Torque	N·m	0.64
Maximum Torque	N·m	2.2
Rated Speed	r/min	3000
Maximum Speed	r/min	6000
Instantaneous Permissible Speed	r/min	6900
Power Rate at Continuous Rated Torque	kW/s	18.3
Rated Current	A	1.3
Maximum Current	A	4.6
Encoder Type	—	23-bit Absolute (B series)
Ambient Temperature (Operation)	°C	0 to 40 (non-freezing)
Ambient Temperature (Storage)	°C	-15 to 70 (non-freezing)
Ambient Humidity (Operation)	%RH	10 to 80 (non-condensing)
Ambient Humidity (Storage)	%RH	10 to 90 (non-condensing)
Permissible Load for Shaft (L)	mm	25
Radial Load Capacity	N	88
Thrust Load Capacity	N	59
Mass	kg	0.91
Duty Type	—	Continuous Running Duty
