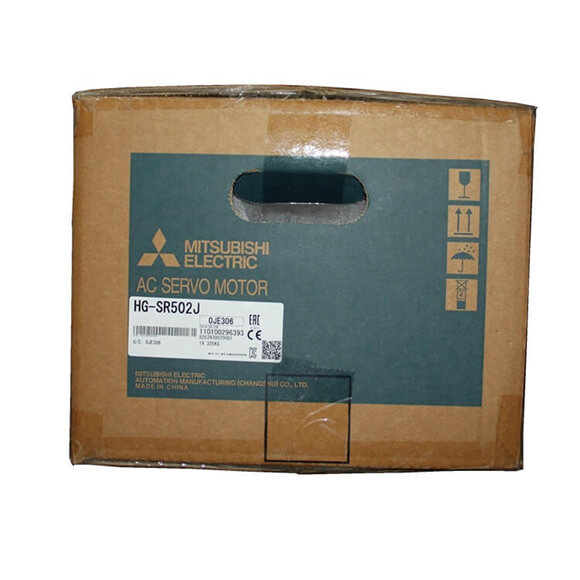

Mitsubishi HG-SR502J Servomotor 5kW

Series#: Mitsubishi

Product Details

MITSUBISHI MELSERVO-J4 SERVOMOTOR 5KW HG-SR502J – High-performance servo motor for precision industrial automation.
Rated output of 5.0 kW and rated torque of 23.9 Nm, ideal for medium-inertia, medium-capacity applications.
2000 r/min rated speed with a maximum speed of 3000 r/min, delivering exceptional dynamic response.
Integrated with Mitsubishi’s advanced MELSERVO-J4 series for seamless motion control and energy efficiency.
Robust design with permissible radial load of 2058 N and thrust load of 980 N, ensuring long-term reliability.
Compact mass of 20 kg, suitable for space-constrained installations in industrial machinery.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The MITSUBISHI MELSERVO-J4 SERVOMOTOR 5KW HG-SR502J is a premium-grade servo motor engineered for demanding automation tasks, offering superior torque density and precision in a compact package. Part of the renowned MELSERVO-J4 family, this 2000 r/min series motor is designed for 3-phase 200 V AC systems, making it a versatile choice for applications from CNC machining to robotic assembly. Its high power rate of 57.2 kW/s ensures rapid acceleration, while the maximum torque of 71.6 N·m provides robust performance under peak loads. With an operating temperature range of 0 °C to 40 °C and storage capability from -15 °C to 70 °C, the HG-SR502J is built for reliability in diverse industrial environments. Below is the exhaustive technical specification table for this model and its compatible series.

Parameter	Unit	HG-SR502J (2000 r/min Series)	Other 2000 r/min Models (e.g., HG-SR102, HG-SR152, HG-SR202, HG-SR352, HG-SR702)	1000 r/min Series Models (e.g., HG-SR51, HG-SR81, HG-SR121, HG-SR201, HG-SR421)
Continuous Running Duty (Rated Output)	kW	5.0	0.5, 1.0, 1.5, 2.0, 3.5, 7.0	0.5, 0.85, 1.2, 2.0, 4.2
Rated Torque	N·m	23.9	2.4, 4.8, 7.2, 9.5, 16.7, 33.4	4.8, 8.1, 11.5, 19.1, 40.1
Maximum Torque	N·m	71.6	7.2, 14.3, 21.5, 28.6, 50.1, 100	14.3, 24.4, 34.4, 57.3, 120
Rated Speed	r/min	2000	2000	1000
Maximum Speed	r/min	3000	3000	1500
Instantaneous Permissible Speed	r/min	3450	3450	1725
Power Rate at Continuous Rated Torque	kW/s	57.2	7.85, 19.7, 32.1, 19.5, 35.5, 74	19.7, 41.2, 28.1, 46.4, 107
Rated Current	A	22	2.9, 5.6, 9.4, 9.6, 14, 26	2.8, 5.2, 7.1, 9.4, 19
Maximum Current	A	70	9, 17, 29, 31, 45, 83	9, 17, 23, 30, 61
Ambient Temperature (Operation)	°C	0 to 40 (non-freezing)	0 to 40 (non-freezing)	0 to 40 (non-freezing)
Ambient Temperature (Storage)	°C	-15 to 70 (non-freezing)	-15 to 70 (non-freezing)	-15 to 70 (non-freezing)
Ambient Humidity (Operation)	%RH	10 to 80 (non-condensing)	10 to 80 (non-condensing)	10 to 80 (non-condensing)
Ambient Humidity (Storage)	%RH	10 to 90 (non-condensing)	10 to 90 (non-condensing)	10 to 90 (non-condensing)
Permissible Radial Load (Shaft)	N	2058	980 (for smaller models) / 2058 for larger models	980 / 2058
Permissible Thrust Load (Shaft)	N	980	490 (for smaller models) / 980 for larger models	490 / 980
Mass (Standard)	kg	20	4.8, 6.2, 7.3, 11, 16, 27	6.2, 7.3, 11, 16, 27

Note: All specifications are per Mitsubishi MELSERVO-J4 series standards. The HG-SR502J is a 2000 r/min model operating on 3-phase 200 V AC. For exact dimensions or wiring details, refer to the official manual.
