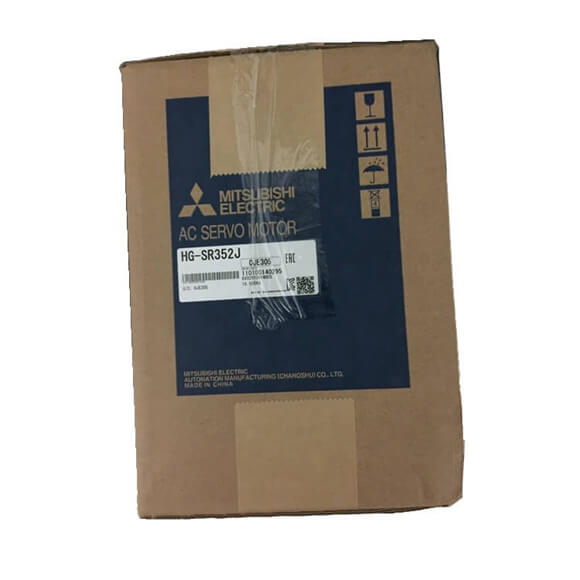

Designed for superior precision and reliability, the Mitsubishi MELSERVO-J4 Servomotor HG-SR352J is a cornerstone of modern industrial automation. This 3.5 kW servomotor operates at a rated speed of 2000 r/min and can reach a maximum speed of 3000 r/min, making it perfectly suited for medium inertia and medium capacity applications. With a rated torque of 16.7 N·m and a maximum torque of 50.1 N·m, it delivers exceptional dynamic response and consistent performance in demanding environments. The HG-SR352J features a robust construction that supports radial loads up to 2058 N and thrust loads up to 980 N, ensuring long-term durability. Its operating temperature range from 0 °C to 40 °C and humidity tolerance from 10% to 80% RH (non-condensing) guarantee stable operation across various conditions. This servomotor is a key component for high-speed machining, packaging, and assembly lines, offering seamless integration with MR-J4 series drives.
| Parameter |
Specification for HG-SR352J |
| Rated Output |
3.5 kW |
| Rated Torque |
16.7 N·m |
| Maximum Torque |
50.1 N·m |
| Rated Speed |
2000 r/min |
| Maximum Speed |
3000 r/min |
| Instantaneous Permissible Speed |
3450 r/min |
| Power Rate at Continuous Rated Torque (Standard) |
35.5 kW/s |
| Rated Current |
14 A |
| Maximum Current |
45 A |
| Ambient Temperature (Operation) |
0 °C to 40 °C (non-freezing) |
| Ambient Temperature (Storage) |
-15 °C to 70 °C (non-freezing) |
| Ambient Humidity (Operation) |
10 %RH to 80 %RH (non-condensing) |
| Ambient Humidity (Storage) |
10 %RH to 90 %RH (non-condensing) |
| Permissible Load for Shaft (L) |
79 mm |
| Radial Load |
2058 N |
| Thrust Load |
980 N |
| Mass (Standard) |
16 kg |
