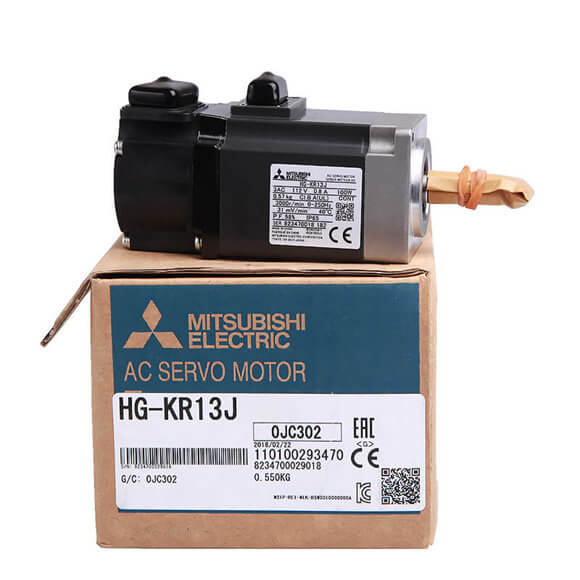

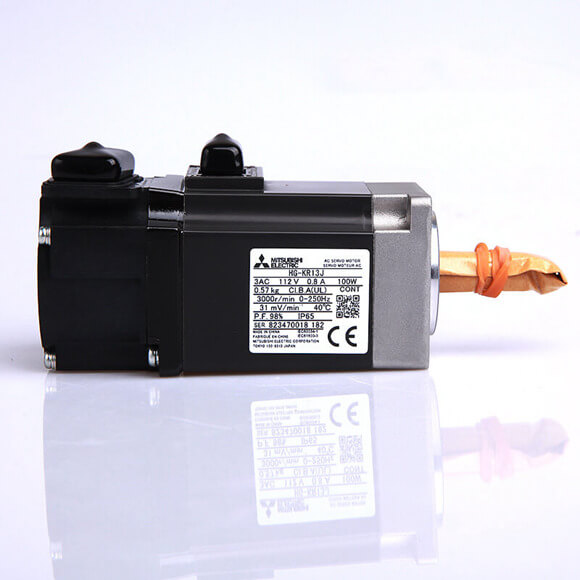

Mitsubishi MELSERVO-J4 Servomotor With Brake 100W HG-KR13BJ

Mitsubishi MELSERVO-J4 Servomotor With Brake 100W HG-KR13BJ

Series#: Mitsubishi

Product Details

MITSUBISHI MELSERVO-J4 HG-KR13BJ – High-performance 100W AC servo motor with integrated holding brake for precision motion control.
Low inertia / small capacity design (HG-KR series) – Ideal for rapid acceleration/deceleration and high-speed positioning applications.
Rated torque of 0.32 Nm, maximum torque of 1.1 Nm, and rated speed of 3000 r/min (max 6000 r/min).
Robust build with IP rating, 0.54 kg mass, and permissible radial load of 88 N for reliable long-term operation.
Compatible with MR-J4 servo amplifiers – Plug-and-play integration for Mitsubishi automation systems.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

Designed for demanding industrial automation, the MITSUBISHI MELSERVO-J4 HG-KR13BJ is a 100W low-inertia servo motor equipped with a factory-integrated holding brake. This model belongs to the HG-KR series, engineered for applications requiring precise speed and position control with rapid dynamic response. Its compact form factor (0.54 kg) and high torque-to-inertia ratio make it an excellent choice for pick-and-place machines, packaging equipment, and robotic axes. The motor operates reliably across 0 °C to 40 °C ambient temperature and 10% to 80% RH, with storage capability from -15 °C to 70 °C. All units are 100% original, factory-new, and available for immediate shipment.

Parameter	HG-KR13BJ Value	Unit
Rated Output	0.1	kW
Rated Torque	0.32	N·m
Maximum Torque	1.1	N·m
Rated Speed	3000	r/min
Maximum Speed	6000	r/min
Instantaneous Permissible Speed	6900	r/min
Power Rate (Continuous Rated Torque)	13	kW/s
Rated Current	0.8	A
Maximum Current	2.5	A
Ambient Temperature (Operation)	0 to 40	°C
Ambient Temperature (Storage)	-15 to 70	°C
Ambient Humidity (Operation)	10 to 80	%RH
Ambient Humidity (Storage)	10 to 90	%RH
Permissible Load (Shaft L)	25	mm
Permissible Radial Load	88	N
Permissible Thrust Load	59	N
Mass (Standard)	0.54	kg
Brake Type	Integrated Holding Brake	–
Series	HG-KR (Low Inertia, Small Capacity)	–
