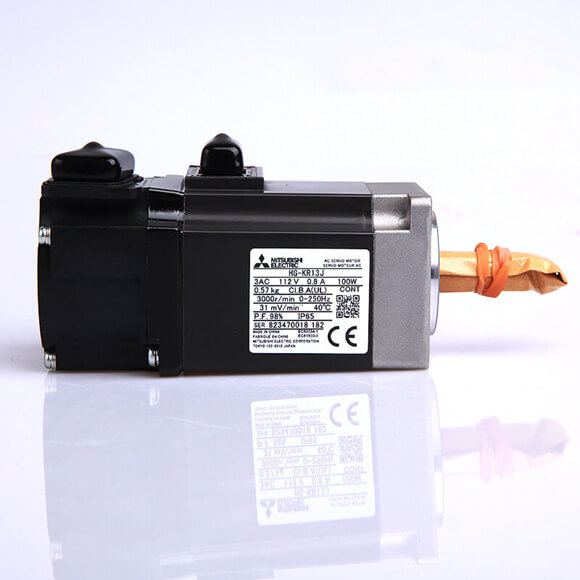

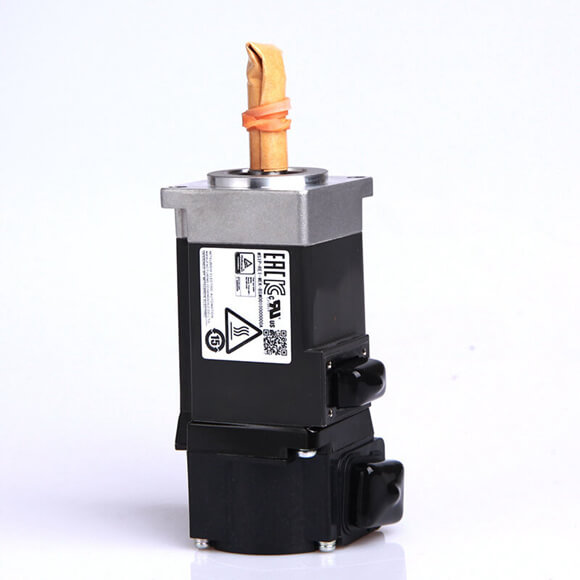

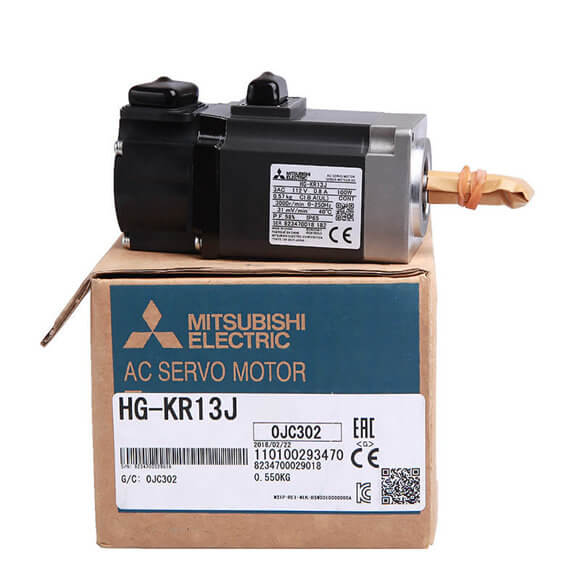

The Mitsubishi MELSERVO-J4 Servomotor 100W HG-KR13J is a state-of-the-art low-inertia, small-capacity AC servo motor designed for high-speed, high-precision automation tasks. Part of the renowned HG-KR series, this 100-watt motor delivers a rated torque of 0.32 N·m and a maximum torque of 1.1 N·m, making it an excellent choice for applications such as pick-and-place machines, labeling systems, and small robotic arms. With a rated speed of 3000 r/min and a maximum speed of 6000 r/min, the HG-KR13J ensures rapid acceleration and deceleration, while its lightweight construction (0.54 kg) minimizes mechanical stress. The motor is fully compatible with Mitsubishi's MR-J4 servo amplifiers, offering seamless integration and advanced tuning capabilities. All units are 100% original and new, sourced directly from authorized channels, and available for immediate shipment worldwide.
| Parameter |
HG-KR13J (100W) |
| Rated Output |
0.1 kW |
| Rated Torque |
0.32 N·m |
| Maximum Torque |
1.1 N·m |
| Rated Speed |
3000 r/min |
| Maximum Speed |
6000 r/min |
| Instantaneous Permissible Speed |
6900 r/min |
| Power Rate at Continuous Rated Torque (Standard) |
13.0 kW/s |
| Rated Current |
0.8 A |
| Maximum Current |
2.5 A |
| Ambient Temperature (Operation) |
0 °C to 40 °C (non-freezing) |
| Ambient Temperature (Storage) |
-15 °C to 70 °C (non-freezing) |
| Ambient Humidity (Operation) |
10 %RH to 80 %RH (non-condensing) |
| Ambient Humidity (Storage) |
10 %RH to 90 %RH (non-condensing) |
| Permissible Load for Shaft (L) |
25 mm |
| Radial Load |
88 N |
| Thrust Load |
59 N |
| Mass (Standard) |
0.54 kg |
