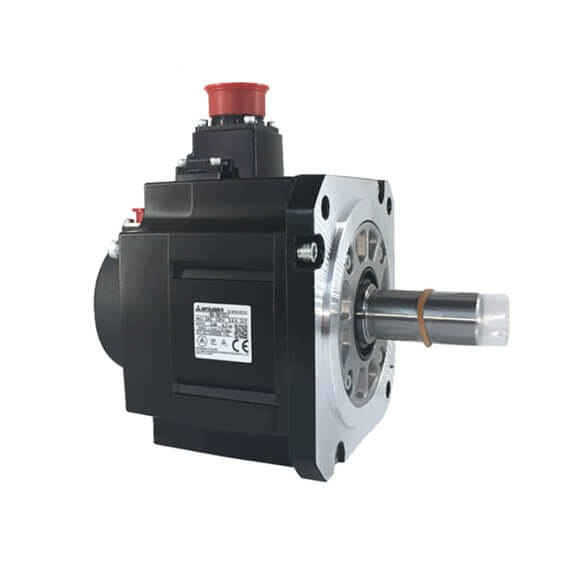

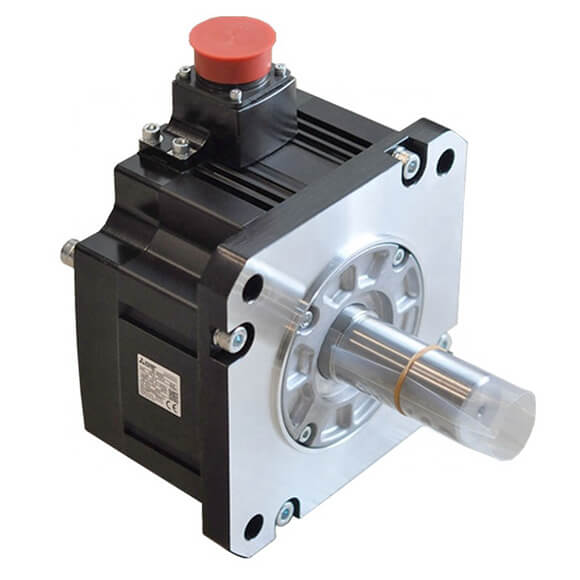

The MITSUBISHI MELSERVO-J4 SERVOMOTOR WITH BREAK 2KW HG-SR202BJ is a cutting-edge AC servo motor engineered for high-precision motion control in industrial automation systems. Part of the renowned MELSERVO-J4 series, this 2 kW motor delivers exceptional torque density and dynamic performance, making it ideal for applications such as CNC machinery, robotics, packaging lines, and material handling equipment. The integrated holding brake ensures safe operation during power loss or when holding heavy loads, while the high-resolution encoder provides precise feedback for closed-loop control. With a compact footprint and robust construction, the HG-SR202BJ offers reliable performance in demanding environments.
| Specification |
HG-SR202BJ (With Brake) |
| Rated Output |
2.0 kW |
| Rated Torque |
9.55 N·m |
| Maximum Torque |
28.6 N·m |
| Rated Speed |
2000 r/min |
| Maximum Speed |
3000 r/min |
| Instantaneous Permissible Speed |
3450 r/min |
| Power Rate at Continuous Rated Torque |
46.2 kW/s |
| Rated Current |
8.6 A |
| Maximum Current |
25.8 A |
| Encoder Resolution |
22-bit (4194304 p/rev) absolute encoder |
| Holding Brake |
Integrated electromagnetic brake (24 VDC) |
| Brake Holding Torque |
12.0 N·m |
| Inertia (Motor Shaft) |
0.00085 kg·m² |
| Permissible Load for Shaft – L |
40 mm |
| Permissible Radial Load |
392 N |
| Permissible Thrust Load |
147 N |
| Mass (Standard) |
6.5 kg |
| Ambient Temperature (Operation) |
0 °C to 40 °C (non-freezing) |
| Ambient Temperature (Storage) |
-15 °C to 70 °C (non-freezing) |
| Ambient Humidity (Operation) |
10% RH to 80% RH (non-condensing) |
| Ambient Humidity (Storage) |
10% RH to 90% RH (non-condensing) |
| Protection Class |
IP67 (motor body) |
| Mounting Method |
Flange or foot mount (optional) |
| Connection Type |
Standard connector (supplied) |
