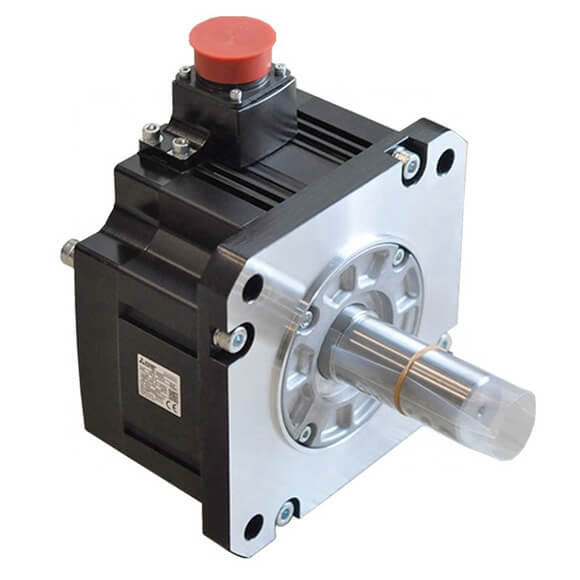

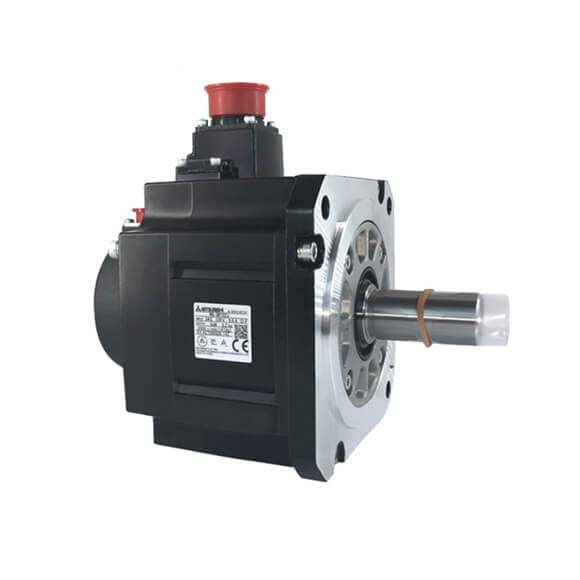

Mitsubishi HG-SR202J Servomotor 2kW

Series#: Mitsubishi

Product Details

Mitsubishi MELSERVO-J4 HG-SR202J – A 2kW AC servo motor engineered for high-precision industrial automation.
Delivers exceptional torque density with a rated torque of 9.55 Nm and a maximum torque of 28.6 Nm.
Offers a wide speed range: rated at 2000 r/min and maximum speed up to 3000 r/min, suitable for demanding motion control.
Equipped with a high-resolution 22-bit absolute encoder for superior positioning accuracy and smooth low-speed operation.
IP67 protection rating (shaft end) ensures reliable performance in harsh industrial environments.
Optimized for use with Mitsubishi MELSERVO-J4 series servo amplifiers for seamless integration and system efficiency.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi MELSERVO-J4 HG-SR202J is a high-performance 2kW AC servo motor designed to meet the rigorous demands of modern industrial automation. As part of the acclaimed MELSERVO-J4 family, this motor combines advanced magnetic circuit design with robust construction to deliver exceptional torque, speed, and reliability. The HG-SR202J is ideally suited for applications requiring precise motion control, such as CNC machinery, robotic arms, packaging equipment, and material handling systems. Its 22-bit absolute encoder ensures nanometer-level positioning accuracy, while the IP67-rated shaft end provides excellent resistance to dust and moisture. This motor is fully compatible with MELSERVO-J4 series amplifiers, enabling easy setup and optimized system performance. Below are the detailed technical specifications for the HG-SR202J and related standard models.

Parameter	Unit	HG-SR202J	Standard Models (0.05 kW – 0.75 kW)
Continuous Running Duty (Rated Output)	kW	2.0	0.05 / 0.1 / 0.2 / 0.4 / 0.75
Rated Torque	N·m	9.55	0.16 / 0.32 / 0.64 / 1.3 / 2.4
Maximum Torque	N·m	28.6	0.48 / 0.95 / 1.9 / 3.8 / 8.4
Rated Speed	r/min	2000	3000
Maximum Speed	r/min	3000	6000
Instantaneous Permissible Speed	r/min	3450	6900
Power Rate at Continuous Rated Torque	kW/s	114.2	15.6 / 33.8 / 46.9 / 114.2 / 45.2
Rated Current	A	8.6	1.0 / 0.9 / 1.5 / 2.6 / 4.8
Maximum Current	A	25.8	3.1 / 2.5 / 5.3 / 9.0 / 17.0
Ambient Temperature (Operation)	°C	0 to 40 (non-freezing)
Ambient Temperature (Storage)	°C	-15 to 70 (non-freezing)
Ambient Humidity (Operation)	%RH	10 to 80 (non-condensing)
Ambient Humidity (Storage)	%RH	10 to 90 (non-condensing)
Permissible Shaft Load (L)	mm	40	25 / 30
Radial Load	N	392	88 / 245
Thrust Load	N	147	59 / 98
Mass (Standard)	kg	2.8	0.34 / 0.54 / 0.91 / 1.4 / 2.8
