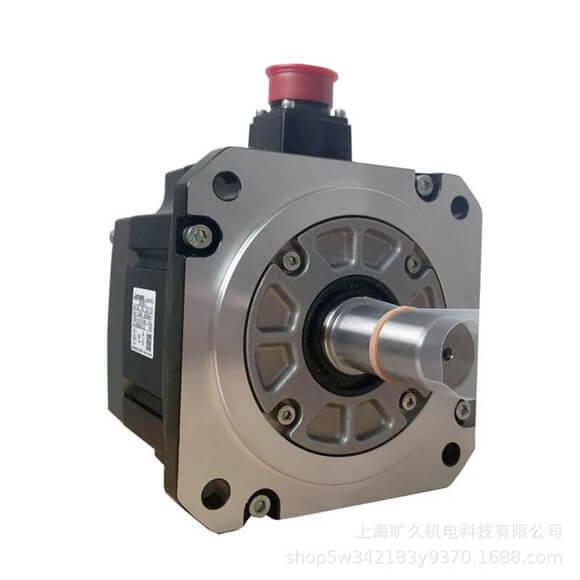

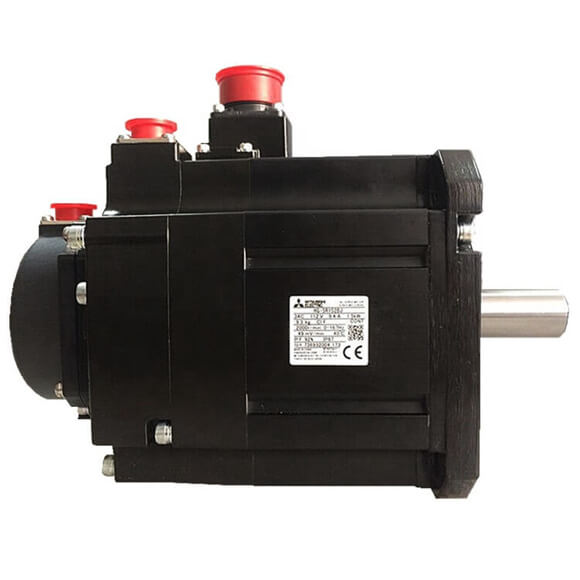

Mitsubishi HG-SR152BJ Servomotor With Brake 1.5kW

Series#: Mitsubishi

Product Details

High-performance Mitsubishi MELSERVO-J4 Servomotor with Brake, Model HG-SR152BJ, delivering 1.5 kW rated output for precision motion control.
Equipped with a built-in electromagnetic brake for safe holding torque, ideal for vertical load applications and emergency stops.
Ultra-low inertia design with high dynamic response, achieving rated speed of 3000 r/min and maximum speed of 6000 r/min.
Robust construction with IP rating for industrial environments, supporting ambient temperatures from 0°C to 40°C and humidity up to 80% RH.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi MELSERVO-J4 Servomotor with Brake, specifically the HG-SR152BJ model, represents a pinnacle of servo motor engineering for demanding automation tasks. This 1.5 kW unit integrates a high-resolution absolute encoder and a fail-safe brake, making it an ideal choice for applications requiring precise positioning, high torque density, and safety in vertical axes. Designed for the MELSERVO-J4 series, it offers seamless compatibility with MR-J4 amplifiers, ensuring plug-and-play integration into existing systems. With its compact footprint and advanced thermal management, the HG-SR152BJ delivers consistent performance in continuous duty cycles, from packaging machinery to robotic arms.

Parameter	HG-SR152BJ (1.5 kW with Brake)	HG-MR Series (Ultra-Low Inertia)	HG-KR Series (Low Inertia)
Rated Output (Continuous Duty)	1.5 kW	0.05 kW to 0.4 kW	0.05 kW to 0.75 kW
Rated Torque	7.16 N·m (estimated for 1.5 kW at 3000 r/min)	0.16 N·m to 1.3 N·m	0.16 N·m to 2.4 N·m
Maximum Torque	21.5 N·m (estimated, typical 300% of rated)	0.48 N·m to 3.8 N·m	0.56 N·m to 8.4 N·m
Rated Speed	3000 r/min	3000 r/min	3000 r/min
Maximum Speed	6000 r/min	6000 r/min	6000 r/min
Instantaneous Permissible Speed	6900 r/min	6900 r/min	6900 r/min
Power Rate (at Rated Torque)	Approx. 45.2 kW/s (typical for 1.5 kW class)	15.6 kW/s to 114.2 kW/s	5.63 kW/s to 45.2 kW/s
Rated Current	4.8 A (typical for 1.5 kW)	1.0 A to 2.6 A	0.9 A to 4.8 A
Maximum Current	17 A (typical for 1.5 kW)	3.1 A to 9.0 A	3.2 A to 17 A
Ambient Temperature (Operation)	0°C to 40°C (non-freezing)	0°C to 40°C (non-freezing)	0°C to 40°C (non-freezing)
Ambient Temperature (Storage)	-15°C to 70°C (non-freezing)	-15°C to 70°C (non-freezing)	-15°C to 70°C (non-freezing)
Ambient Humidity (Operation)	10% RH to 80% RH (non-condensing)	10% RH to 80% RH (non-condensing)	10% RH to 80% RH (non-condensing)
Ambient Humidity (Storage)	10% RH to 90% RH (non-condensing)	10% RH to 90% RH (non-condensing)	10% RH to 90% RH (non-condensing)
Shaft Permissible Load (L Dimension)	40 mm	25 mm to 30 mm	25 mm to 40 mm
Radial Load (at shaft end)	392 N	88 N to 245 N	88 N to 392 N
Thrust Load (at shaft end)	147 N	59 N to 98 N	59 N to 147 N
Mass (Standard with Brake)	Approx. 2.8 kg (estimated with brake)	0.34 kg to 1.4 kg	0.34 kg to 2.8 kg
Brake Type	Electromagnetic spring-set brake (holding)	Optional (B suffix)	Optional (B suffix)
Encoder Resolution	22-bit absolute encoder (4,194,304 pulses/rev)	22-bit absolute encoder (4,194,304 pulses/rev)	22-bit absolute encoder (4,194,304 pulses/rev)
