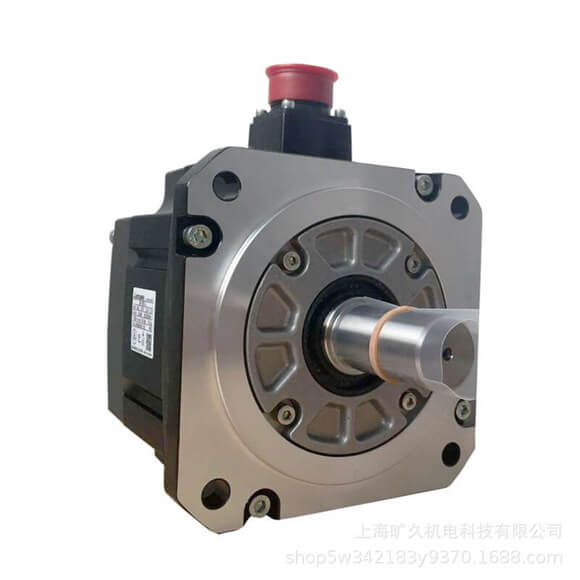

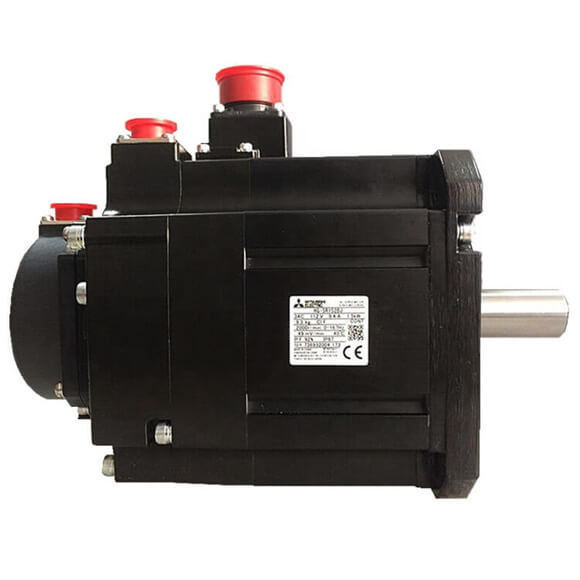

Mitsubishi HG-SR152J Servomotor 1.5kW

Series#: Mitsubishi

Product Details

High-performance Mitsubishi MELSERVO-J4 servo motor, model HG-SR152J, delivering 1.5 kW rated output for precision motion control applications.
Ultra-low inertia design (HG-SR series) for exceptional acceleration and deceleration, ideal for high-speed positioning systems.
Rated torque of 7.16 Nm and maximum torque of 21.5 Nm, providing robust performance for demanding industrial tasks.
Supports rated speed of 2000 r/min and maximum speed of 3000 r/min, with a high-resolution 22-bit encoder for precise feedback.
Built with advanced vibration suppression and adaptive tuning features, ensuring smooth operation even under variable loads.
Compact and rugged construction, compatible with MR-J4 series servo amplifiers for seamless integration into existing automation systems.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi MELSERVO-J4 servo motor model HG-SR152J represents a pinnacle of engineering in the 1.5 kW class, designed for applications requiring ultra-low inertia and high dynamic response. This servo motor is part of the HG-SR series, which is renowned for its compact footprint and exceptional torque density. With a rated speed of 2000 r/min and a maximum speed of 3000 r/min, the HG-SR152J excels in high-speed pick-and-place, packaging, and machine tool applications. Its 22-bit absolute encoder ensures unparalleled positioning accuracy, while the built-in vibration suppression and adaptive filter technology minimize mechanical resonance. The motor is fully compatible with Mitsubishi MR-J4 series servo amplifiers, offering plug-and-play connectivity and advanced tuning capabilities. Whether for new installations or retrofits, this motor delivers reliable, maintenance-free performance in challenging industrial environments.

Parameter	Specification (HG-SR152J)
Rated Output	1.5 kW
Rated Torque	7.16 N·m
Maximum Torque	21.5 N·m
Rated Speed	2000 r/min
Maximum Speed	3000 r/min
Encoder Resolution	22-bit absolute (4194304 pulses/rev)
Rated Current	7.9 A (RMS)
Maximum Current	23.7 A (RMS)
Power Rate at Rated Torque	18.4 kW/s
Shaft Permissible Load (Radial)	392 N
Shaft Permissible Load (Thrust)	147 N
Ambient Temperature (Operation)	0 °C to 40 °C (non-freezing)
Ambient Temperature (Storage)	-15 °C to 70 °C (non-freezing)
Ambient Humidity (Operation)	10 %RH to 80 %RH (non-condensing)
Ambient Humidity (Storage)	10 %RH to 90 %RH (non-condensing)
Mass (Standard)	7.0 kg
Compatible Amplifier Series	MELSERVO-J4 (MR-J4-20A, MR-J4-40A, etc.)
Protection Class	IP65 (shaft end and connector area)
