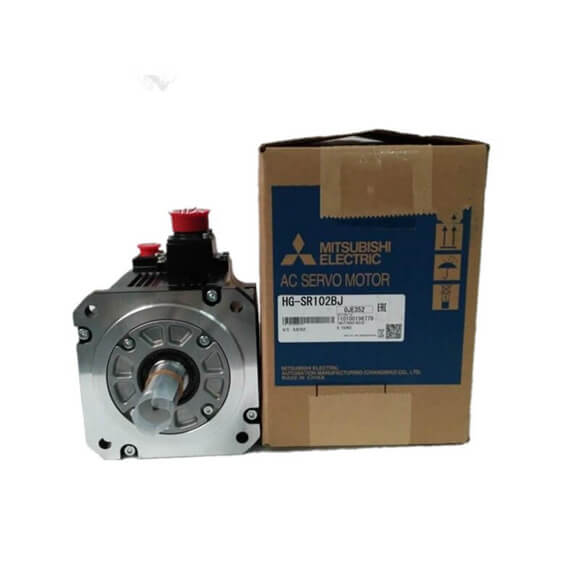

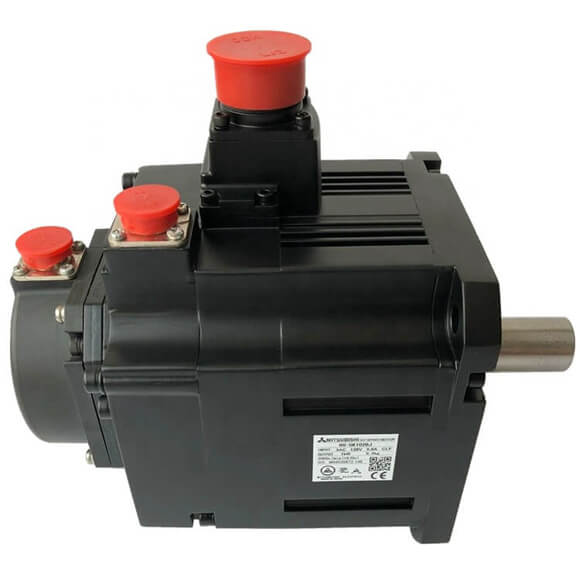

Mitsubishi HG-SR102BJ Servomotor With Brake 1kW

Series#: Mitsubishi

Product Details

Model: MITSUBISHI MELSERVO-J4 SERVOMOTOR WITH BREAK 1KW HG-SR102BJ – high-performance AC servo motor for precision motion control.
Rated output of 1.0 kW with a rated torque of 4.77 Nm, ideal for demanding industrial automation tasks.
Equipped with a built-in electromagnetic brake for safe and reliable holding in vertical or stop applications.
Ultra-low inertia design (HG-SR series) delivers exceptional acceleration and deceleration for high-speed positioning.
Compatible with MR-J4 servo amplifiers, supporting advanced tuning and network communication (SSCNET III/H).
Rugged construction with IP65 protection rating, ensuring durability in harsh factory environments.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The MITSUBISHI MELSERVO-J4 SERVOMOTOR WITH BREAK 1KW HG-SR102BJ is a state-of-the-art servo motor engineered for high-precision motion control in modern industrial automation systems. Part of the renowned MELSERVO-J4 series, this 1 kW motor features an ultra-low inertia rotor, enabling rapid acceleration and deceleration for applications requiring fast cycle times, such as pick-and-place, packaging, and machine tool feed axes. The integrated electromagnetic brake ensures secure holding torque when power is removed, making it ideal for vertical load applications. With a rated speed of 3000 r/min and a maximum speed of 6000 r/min, it delivers outstanding dynamic performance. This motor is 100% original and new, backed by Mitsubishi Electric's rigorous quality standards, and is available for immediate shipment from our global inventory. Below are the detailed technical specifications:

Parameter	Value (HG-SR102BJ)
Rated Output	1.0 kW
Rated Torque	4.77 N·m
Maximum Torque	14.3 N·m
Rated Speed	3000 r/min
Maximum Speed	6000 r/min
Instantaneous Permissible Speed	6900 r/min
Power Rate at Continuous Rated Torque	Standard: 45.2 kW/s
Rated Current	4.8 A
Maximum Current	17 A
Ambient Temperature (Operation)	0 °C to 40 °C (non-freezing)
Ambient Temperature (Storage)	-15 °C to 70 °C (non-freezing)
Ambient Humidity (Operation)	10 %RH to 80 %RH (non-condensing)
Ambient Humidity (Storage)	10 %RH to 90 %RH (non-condensing)
Permissible Load for Shaft (L)	40 mm
Radial Load	392 N
Thrust Load	147 N
Mass (Standard with Brake)	2.8 kg
Brake Type	Electromagnetic (Spring-set, power-off engaged)
Protection Class	IP65 (Shaft end: IP67)
Encoder Type	22-bit absolute/ incremental (4,194,304 ppr)
Compatible Amplifier	MR-J4-100A or MR-J4-100B
Communication Protocol	SSCNET III/H (standard)
