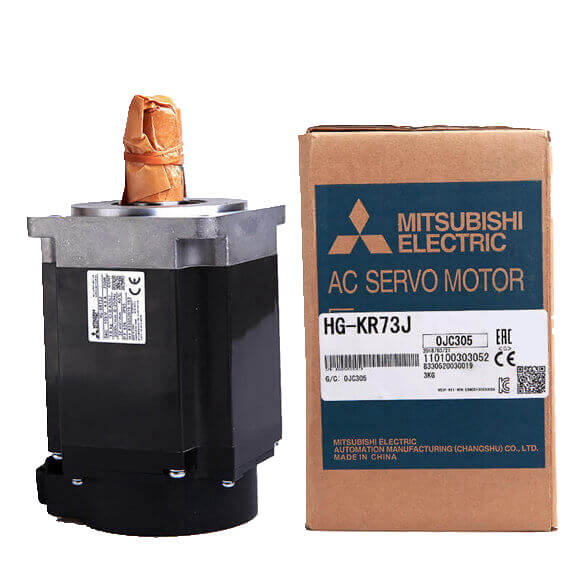

Mitsubishi HG-KR73J Servomotor 750W

Series#: Mitsubishi

Product Details

High-performance MITSUBISHI MELSERVO-J4 SERVOMOTOR 750W HG-KR73J delivers precise motion control for demanding industrial automation applications.
Integrated 22-bit high-resolution absolute encoder for exceptional positioning accuracy and smooth low-speed operation.
Rated at 750W output power with a compact, lightweight design for space-constrained machinery.
Advanced vibration suppression and adaptive tuning features reduce settling time and improve overall system throughput.
IP65-rated enclosure protects against dust and water jets, ensuring durability in harsh industrial environments.
Direct compatibility with MITSUBISHI MELSERVO-J4 series servo amplifiers for seamless integration and optimal performance.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The MITSUBISHI MELSERVO-J4 SERVOMOTOR 750W HG-KR73J is a cutting-edge AC servo motor engineered for high-speed, high-precision motion control in factory automation systems. Built on the advanced MELSERVO-J4 platform, this model features a 22-bit absolute encoder that delivers over 4 million pulses per revolution, enabling sub-micron positioning accuracy in applications such as CNC machining, robotics, packaging, and assembly lines. Its 750W power rating provides ample torque for medium-load axes, while the motor’s compact frame (flange size 60mm) allows for easy integration into tight machine layouts. The HG-KR73J also incorporates MITSUBISHI’s proprietary vibration suppression algorithms, which minimize mechanical resonance and reduce cycle times by up to 30% compared to previous generations. With an IP65 protection rating, it withstands coolant splashes, dust, and washdown environments, making it ideal for both dry and wet machining processes. Below is the detailed technical specification table for the HG-KR73J.

Parameter	Specification (HG-KR73J)
Rated Output Power	750 W
Rated Torque	2.39 N·m
Maximum Torque	7.16 N·m (300% overload capacity)
Rated Speed	3000 rpm
Maximum Speed	6000 rpm
Encoder Type	22-bit absolute encoder (4,194,304 pulses/rev)
Power Supply Voltage	AC 200V to 240V (3-phase or single-phase)
Motor Inertia	0.515 × 10⁻⁴ kg·m²
Permissible Load Inertia Ratio	Up to 30 times motor inertia
Protection Rating	IP65 (except shaft and connector)
Ambient Temperature	0°C to +40°C (operation)
Ambient Humidity	20% to 80% RH (non-condensing)
Vibration Grade	V15 (15 μm or less)
Shaft End	Straight shaft with keyway (standard), optional with oil seal
Brake Option	Optional 24V DC electromagnetic brake (adds 0.08 kg·m² inertia)
Weight (without brake)	1.4 kg
Weight (with brake)	1.7 kg
Connector Type	Standard round connector (power and encoder)
Applicable Amplifier	MITSUBISHI MELSERVO-J4 series (e.g., MR-J4-70A, MR-J4-70B)
Compliance	CE, UL, cUL, RoHS
Standard Accessories	Key, oil seal, installation manual (downloadable)
