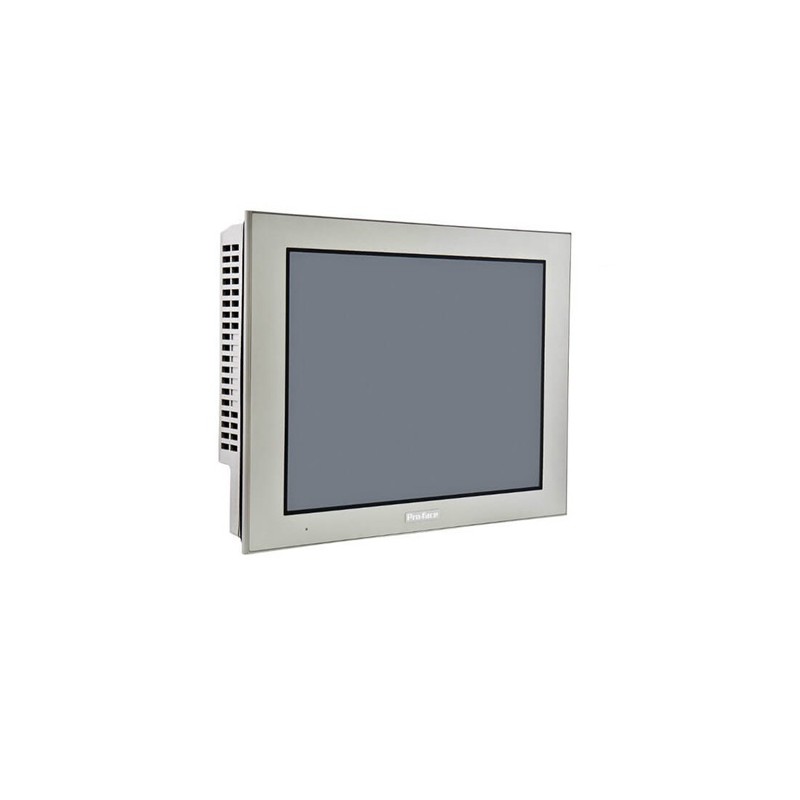

The PRO-FACE AGP3750-T1-AF is a cutting-edge 15-inch operator interface from the renowned 3700 Series, engineered for advanced industrial automation control. This HMI combines a high-brightness TFT LCD display with a durable, fanless design, ensuring reliable operation in temperatures ranging from 0 to 50°C. It features a resistive touchscreen for gloved-hand operation and supports extensive connectivity options, including Ethernet for remote monitoring and legacy serial ports for PLC integration. With a wide input voltage range (24 VDC) and compliance with global standards (CE, UL, cUL), the AGP3750-T1-AF is ideal for applications in manufacturing, packaging, and process control. Below are the detailed technical specifications:
| Specification |
Details |
| Model Number |
AGP3750-T1-AF |
| Series |
PRO-FACE 3700 Series |
| Display Type |
15-inch TFT Color LCD |
| Resolution |
1024 x 768 pixels (XGA) |
| Brightness |
350 cd/m² (typical) |
| Backlight Life |
50,000 hours (LED backlight) |
| Touchscreen |
Analog resistive, 1-point touch |
| Processor |
ARM Cortex-A9, 800 MHz |
| Memory (RAM) |
256 MB DDR3 |
| Storage (Flash) |
512 MB NAND Flash |
| Ethernet Ports |
1 x 10/100 Base-T (RJ45) |
| Serial Ports |
1 x RS-232, 1 x RS-422/485 (isolated) |
| USB Ports |
1 x USB 2.0 (Type A), 1 x USB 2.0 (Mini-B) |
| Input Voltage |
24 VDC (19.2 to 28.8 VDC) |
| Power Consumption |
20 W (max) |
| Operating Temperature |
0 to 50°C (32 to 122°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Humidity |
10 to 90% RH (non-condensing) |
| Protection Rating |
IP65 (front panel), IP20 (rear) |
| Dimensions (W x H x D) |
400 mm x 300 mm x 55 mm |
| Weight |
Approx. 3.5 kg (7.7 lbs) |
| Certifications |
CE, UL, cUL, RoHS |
| Software Compatibility |
GP-Pro EX, Pro-Server EX |
