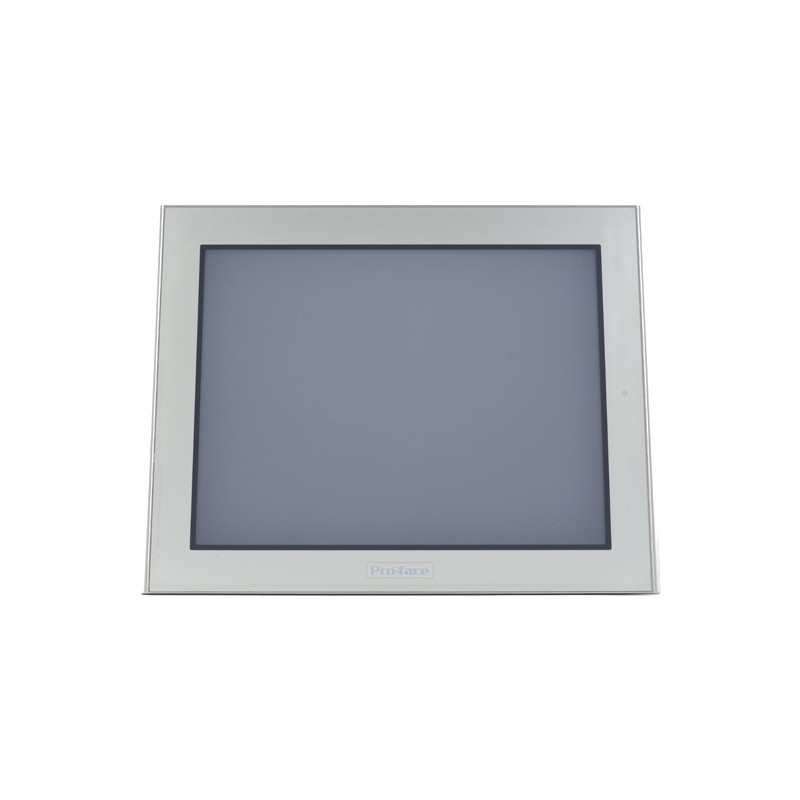

The AGP3600-T1-D24 is a high-performance 12.1-inch TFT color LCD HMI from Pro-Face, engineered for demanding industrial applications. This model combines a vivid 800x600 SVGA display with robust communication capabilities, including two serial ports, two USB interfaces, and a standard Ethernet port. Powered by a 24VDC supply, it offers reliable operation in factory automation, packaging, and material handling systems. The AGP3600-T1-D24 supports Pro-Face’s GP-Pro EX software for intuitive screen design and seamless integration with major PLC brands. Its IP65-rated front panel ensures resistance to dust and water, making it suitable for washdown environments. Below are the detailed technical specifications derived from industry-standard data.
| Parameter |
Specification |
| Model |
AGP3600-T1-D24 |
| Display Type |
12.1″ TFT Color LCD |
| Resolution |
800 x 600 (SVGA) |
| Display Colors |
65,536 colors (16-bit) |
| Backlight |
LED, rated for 50,000 hours (typical) |
| Brightness |
500 cd/m² (typical) |
| Contrast Ratio |
500:1 (typical) |
| Touch Screen |
Analog resistive, 4-wire |
| CPU |
32-bit RISC processor (ARM-based) |
| Memory |
32 MB SDRAM + 16 MB Flash (user-available approx. 8 MB) |
| Serial Ports |
2 x RS-232/422/485 (D-sub 9-pin, software selectable) |
| USB Ports |
1 x USB Type-A (Host) + 1 x USB Mini-B (Device) |
| Ethernet |
1 x 10/100 BASE-T (RJ45) |
| Power Supply |
24 VDC (range: 19.2 to 28.8 VDC) |
| Power Consumption |
20 W (maximum) |
| Operating Temperature |
0 to 50 °C (32 to 122 °F) |
| Storage Temperature |
-20 to 60 °C (-4 to 140 °F) |
| Humidity |
10 to 90% RH (non-condensing) |
| Protection Rating |
IP65 (front panel), IP20 (rear enclosure) |
| Dimensions (W x H x D) |
316 x 242 x 52 mm (12.4 x 9.5 x 2.0 in) |
| Panel Cutout |
302 x 228 mm (11.9 x 9.0 in) |
| Weight |
Approx. 2.5 kg (5.5 lbs) |
| Software Compatibility |
GP-Pro EX (version 4.0 or later) |
| Certifications |
CE, UL, cUL, RoHS compliant |
