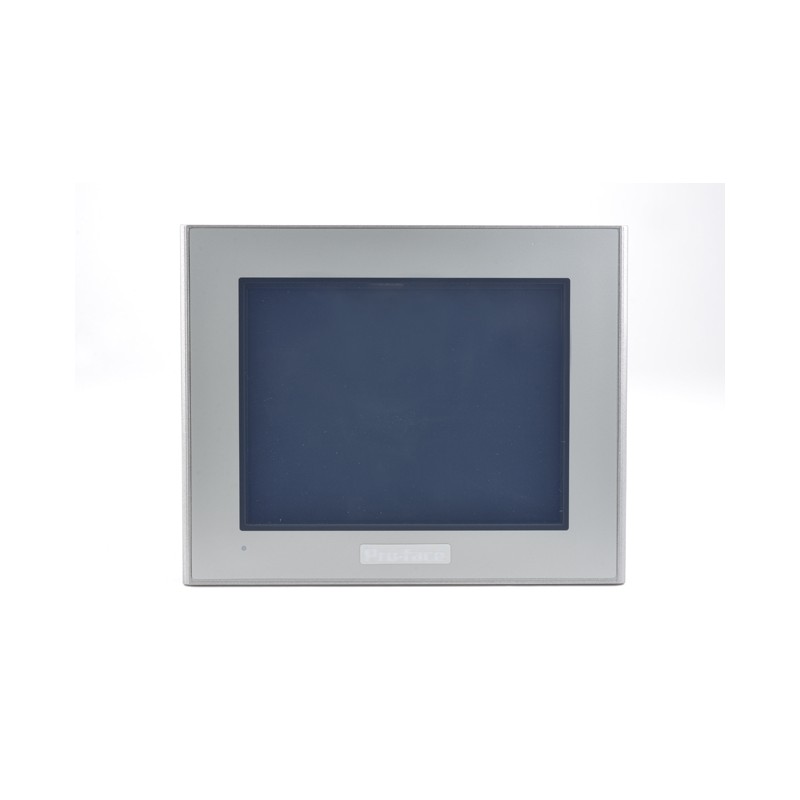

Pro-face AGP3300-T1-D24 5.7 inch Touch Screen HMI

Series#: Proface

Product Details

Model: AGP3300-T1-D24 (PFXGP3300TAD) – A high-performance PRO-FACE HMI for industrial automation.
5.7-inch TFT color LCD display with 320x240 resolution for clear visual monitoring.
Built-in 2 serial ports (RS-232C/RS-422), 1 USB-A, and 1 Ethernet port for flexible connectivity.
Operates on 24 VDC power supply, ideal for factory floor environments.
Robust industrial design with IP65 front panel protection against dust and moisture.
Supports advanced HMI software for seamless integration with PLCs and controllers.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The AGP3300-T1-D24, also known as the PFXGP3300TAD, is a compact yet powerful PRO-FACE HMI engineered for demanding industrial applications. With a 5.7-inch TFT color LCD, this unit delivers crisp graphics and reliable touch interaction. It features dual serial interfaces for legacy equipment, a USB-A port for data transfer, and Ethernet for network connectivity, all powered by a standard 24 VDC supply. This HMI is ideal for machine control, process monitoring, and data logging in manufacturing environments.

Parameter	Specification
Model Number	AGP3300-T1-D24 / PFXGP3300TAD
Display Type	5.7-inch TFT Color LCD
Resolution	320 x 240 pixels (QVGA)
Display Colors	65,536 colors
Backlight	LED, replaceable
Touch Panel	Analog resistive film
Processor	32-bit RISC CPU
Memory	8 MB application memory
Serial Ports	1 x RS-232C, 1 x RS-422 (COM1 & COM2)
USB Port	1 x USB-A (host, type A)
Ethernet	1 x 10/100 Base-T (RJ-45)
Power Supply	24 VDC (20.4 to 28.8 VDC)
Power Consumption	12 W max
Front Panel Rating	IP65 (NEMA 4 equivalent)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Humidity	10 to 90% RH (non-condensing)
Dimensions (W x H x D)	170 x 130 x 50 mm
Cutout Size	156 x 116 mm
Weight	Approx. 0.8 kg
Software Compatibility	GP-Pro EX (Windows-based)
Certifications	CE, UL, cUL, RoHS
