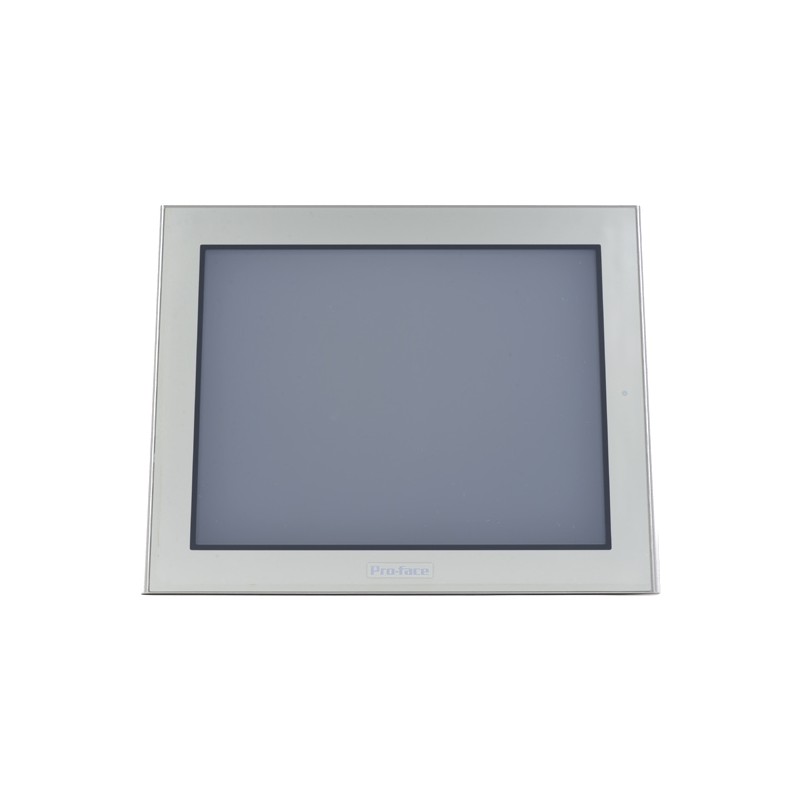

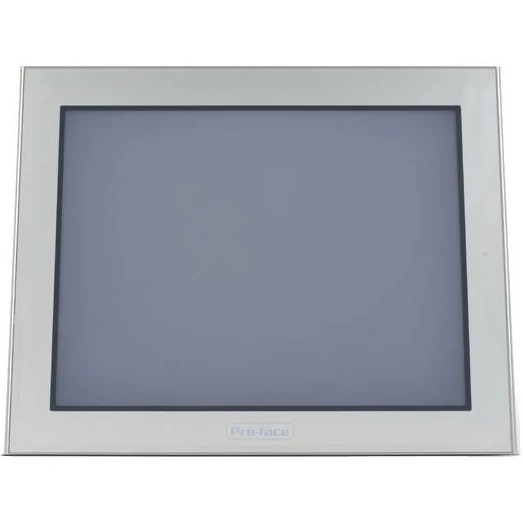

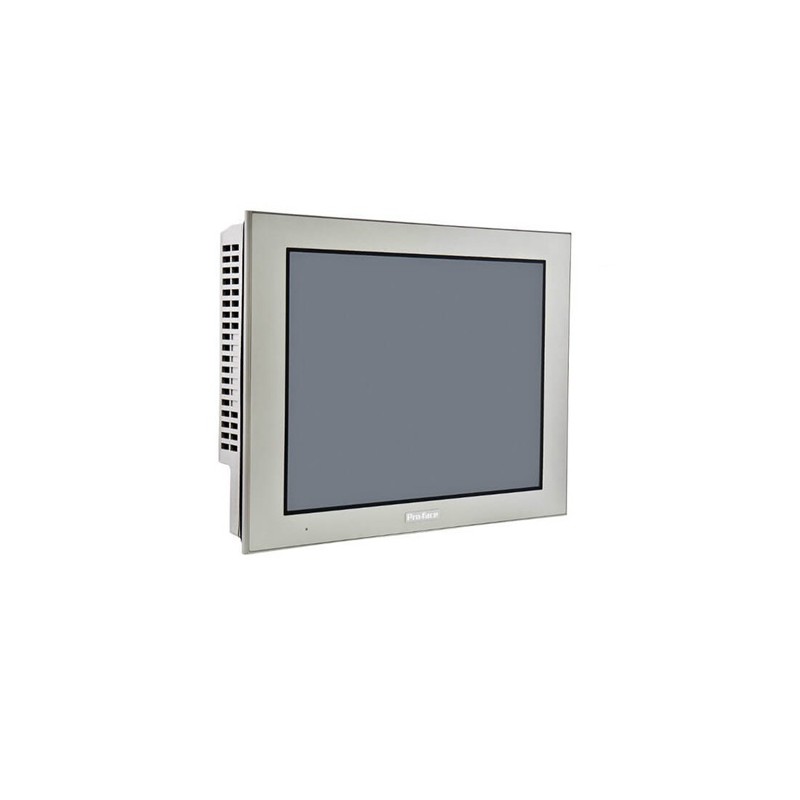

The Pro-face AGP3500-T1-D24 is a high-performance 10.4-inch operator interface engineered for advanced industrial automation and HMI applications. This TFT color LCD touch screen panel provides crisp 640x480 VGA resolution with 256 colors, making it ideal for monitoring and controlling complex processes in manufacturing, packaging, and material handling systems. The AGP3500-T1-D24 operates on a 24 VDC power supply and features a robust design with IP65 front panel protection, ensuring durability in dusty or wet environments. Its extensive connectivity options—including Ethernet, RS-232C, and RS-422/485—allow direct integration with major PLC brands such as Mitsubishi, Siemens, and Allen-Bradley. With a wide operating temperature range from -10°C to +50°C and vibration resistance up to 0.5 G, this unit is built for continuous operation in harsh industrial settings. The AGP3500-T1-D24 also supports Pro-face’s GP-Pro EX software for intuitive screen design and data logging, making it a versatile choice for both new installations and retrofit projects.
| Specification |
Details |
| Model |
AGP3500-T1-D24 |
| Display Type |
TFT Color LCD with Touch Screen |
| Display Size |
10.4 inches (diagonal) |
| Resolution |
640 x 480 pixels (VGA) |
| Color Support |
256 colors |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp), replaceable |
| Backlight Life |
50,000 hours (typical at 25°C) |
| Touch Screen Type |
Analog resistive, single-touch |
| Processor |
RISC-based 32-bit CPU (e.g., SH-4 series) |
| Memory |
4 MB application memory (flash), 128 KB SRAM for data |
| Power Supply |
24 VDC (range: 19.2 to 28.8 VDC) |
| Power Consumption |
20 W maximum |
| Communication Ports |
1 x Ethernet (10Base-T/100Base-TX), 1 x RS-232C, 1 x RS-422/485, 1 x USB (Type A for data transfer) |
| Ethernet Protocol |
TCP/IP, UDP, Modbus TCP, and proprietary Pro-face protocols |
| Serial Protocols |
Modbus RTU, Mitsubishi, Siemens, Omron, Allen-Bradley DF1, and more |
| Front Panel Protection |
IP65 (NEMA 4 equivalent) |
| Operating Temperature |
-10°C to +50°C (14°F to 122°F) |
| Storage Temperature |
-20°C to +60°C (-4°F to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
0.5 G (10 to 55 Hz, 2 hours per axis) |
| Shock Resistance |
10 G (11 ms, half-sine pulse) |
| Dimensions (W x H x D) |
316 mm x 246 mm x 52 mm (12.44 in x 9.69 in x 2.05 in) |
| Panel Cutout Dimensions |
302 mm x 230 mm (11.89 in x 9.06 in) |
| Weight |
Approximately 2.0 kg (4.4 lbs) |
| Mounting Type |
Panel mount (screw clamp) |
| Cooling Method |
Natural convection (no fan) |
| Software Compatibility |
GP-Pro EX (version 2.0 or later) |
| Certifications |
CE, UL, cUL, FCC Class A |
| Warranty |
1 year (standard) |
