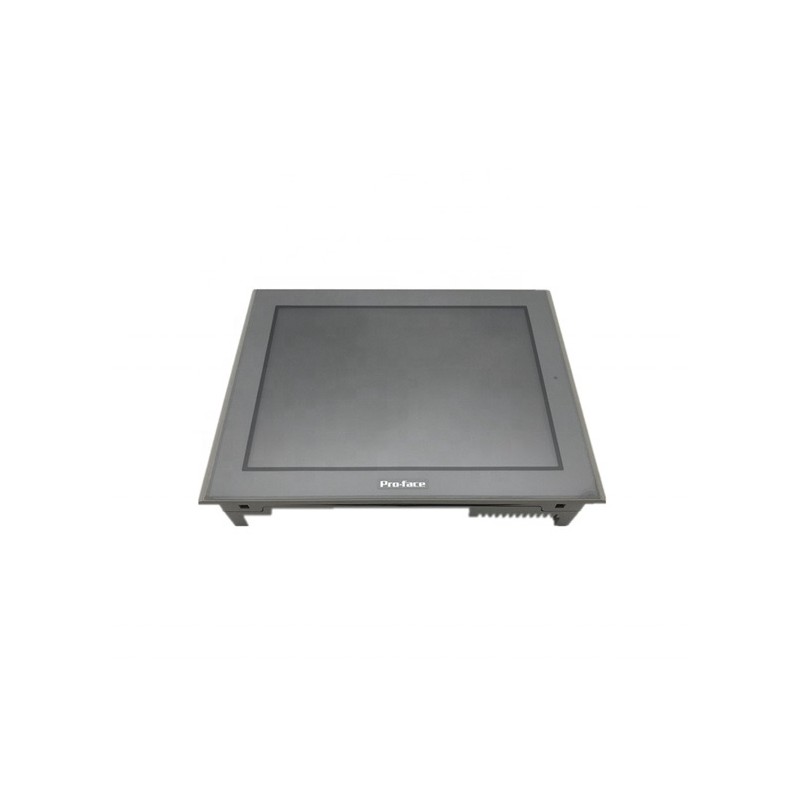

The PRO-FACE AGP3600-T1-AF is a flagship 12.1-inch touch panel from the GP3000 Series, engineered for seamless human-machine interface in complex control systems. This unit combines a bright, high-resolution XGA display with a rugged resistive touch layer, ensuring reliable operation even in wet, dusty, or vibration-prone environments. With native support for multiple communication protocols (including Ethernet/IP, Modbus TCP, and CC-Link), the AGP3600-T1-AF serves as a central visualization hub for PLCs, drives, and sensors. Its modular design allows easy integration into existing architectures, while the built-in data logging and alarm management features enhance process transparency. For engineers requiring a compact yet powerful HMI, this model delivers unmatched performance and longevity.
| Parameter |
Specification (AGP3600-T1-AF) |
| Display Type |
12.1-inch TFT Color LCD (XGA) |
| Resolution |
1024 x 768 pixels |
| Backlight |
White LED, service life > 50,000 hours (at 25°C) |
| Brightness |
500 cd/m² (typical) |
| Touch Panel |
Analog resistive, 1-point touch, gloved-hand compatible |
| Processor |
ARM Cortex-A9, 800 MHz |
| Memory |
256 MB RAM, 512 MB Flash (user available: ~200 MB) |
| Ethernet Ports |
1 x 10/100 Base-TX (RJ45) |
| Serial Ports |
1 x RS-232 (D-sub 9-pin), 1 x RS-422/485 (terminal block) |
| USB Ports |
1 x USB 2.0 Type-A (host), 1 x USB 2.0 Mini-B (device) |
| Expansion Slot |
1 x CFast card slot (for data logging) |
| Communication Protocols |
Ethernet/IP, Modbus TCP, CC-Link, PROFINET, OPC UA (via software) |
| Power Supply |
24 VDC (nominal), range 19.2–28.8 VDC, 1.5 A max |
| Power Consumption |
≤ 36 W (typical) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-30°C to +70°C |
| Humidity |
10% to 90% RH (non-condensing) |
| Front Panel Protection |
IP65 (NEMA 4 equivalent) |
| Enclosure Material |
Metal (front bezel) + plastic (rear housing) |
| Weight |
Approx. 2.8 kg (6.2 lbs) |
| Dimensions (W x H x D) |
316 mm x 242 mm x 55 mm (12.44" x 9.53" x 2.17") |
| Mounting |
Panel mount (cutout: 302 mm x 228 mm) |
| Certifications |
CE, UL, cUL, RoHS |
| Software Compatibility |
GP-Pro EX (version 4.0 or later) |
| Warranty |
2 years (standard industrial) |
