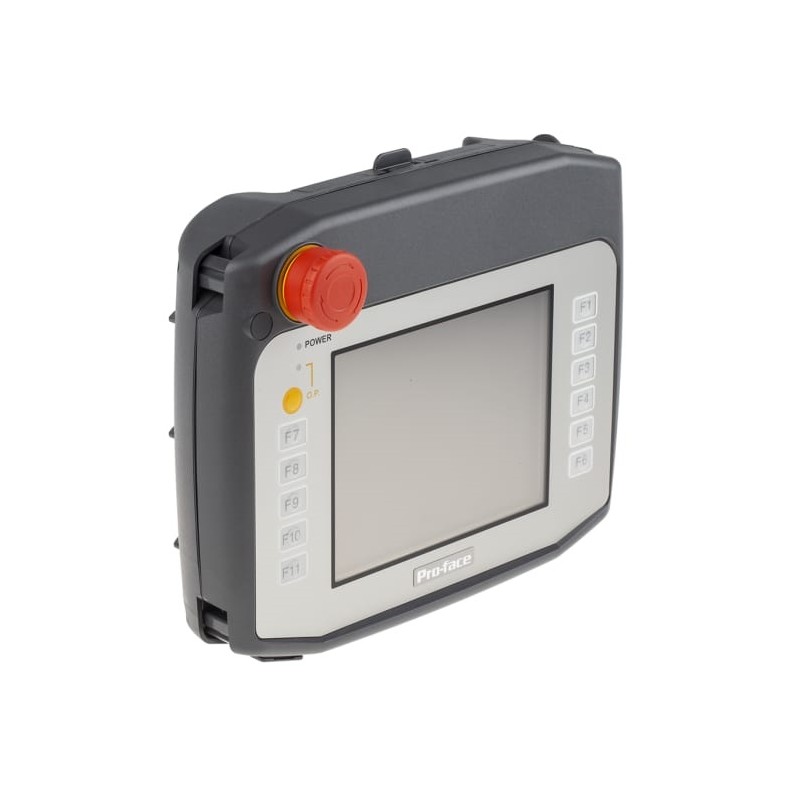

The PRO-FACE AGP3310H-T1-D24-RED is a robust Hand Held Human Machine Interface (HMI) designed for demanding industrial automation tasks where mobility and safety are paramount. Featuring a 5.7-inch TFT color display and powered by 24 VDC, this unit integrates a red emergency stop button directly into the handheld enclosure, allowing operators to instantly halt machinery during critical situations. The AGP3310H-T1-D24-RED supports multiple fieldbus protocols and is engineered for reliable performance in harsh factory floor conditions, making it ideal for machine commissioning, maintenance, and remote monitoring.
| Parameter |
Specification |
| Model |
AGP3310H-T1-D24-RED |
| Manufacturer |
PRO-FACE (Schneider Electric Brand) |
| Type |
Hand Held HMI with Emergency Stop |
| Display Size |
5.7 inches (diagonal) |
| Display Type |
TFT Color LCD |
| Resolution |
320 x 240 pixels (QVGA) |
| Backlight |
LED, replaceable |
| Touchscreen |
Resistive analog touch panel |
| Power Supply |
24 VDC (20.4 to 28.8 VDC range) |
| Power Consumption |
Approx. 12 W (max) |
| Emergency Stop |
Red mushroom head, twist-to-release, 2 NC contacts |
| Communication Ports |
1 x RS-232C, 1 x RS-422/485, 1 x USB Type-A, 1 x USB Mini-B, 1 x Ethernet (10/100 Base-T) |
| Supported Protocols |
Modbus RTU, Modbus TCP, Uni-Telway, Omron Host Link, Mitsubishi FX, Siemens S7, Allen-Bradley DF1, and more |
| Memory |
Flash: 32 MB, RAM: 64 MB |
| Enclosure Rating |
IP65 (front panel when mounted), IP20 (rear) |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +60°C |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
IEC 60068-2-6 (5 to 9 Hz, 3.5 mm; 9 to 150 Hz, 1g) |
| Dimensions (W x H x D) |
Approx. 210 mm x 150 mm x 60 mm (handheld unit) |
| Weight |
Approx. 1.2 kg (without cable) |
| Certifications |
CE, UL, cUL, RoHS, EAC |
| Application |
Machine control, remote monitoring, portable diagnostics, safety override |
