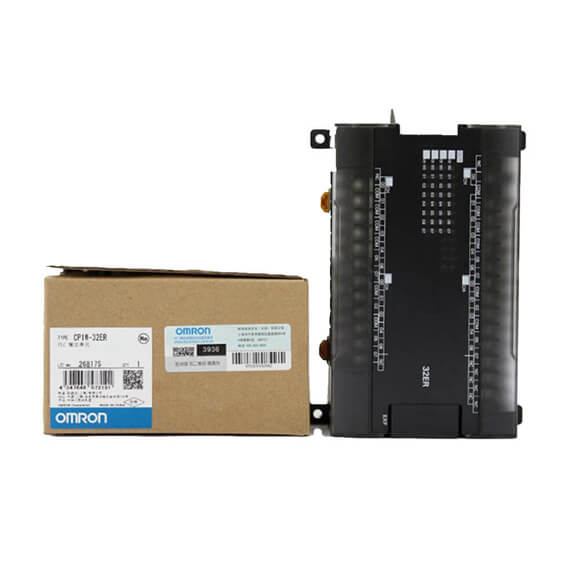

Omron CP1W Series Output Unit Module CP1W-32ER

Series#: Omron

Product Details

High-density 32-point Output Unit Modules: CP1W-32ER (Relay), CP1W-32ET (Transistor Sinking), and CP1W-32ET1 (Transistor Sourcing) for Omron CP-series PLCs.
Relay output version (CP1W-32ER) handles up to 2 A per point, ideal for inductive loads like contactors and solenoids.
Transistor output versions (CP1W-32ET / CP1W-32ET1) offer high-speed switching up to 1 kHz, perfect for precise motion control and high-cycle applications.
Compact form factor saves valuable panel space while providing 32 independent output channels.
Easy snap-on installation to CP-series CPU racks or expansion units without additional wiring complexity.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Omron CP-series CP1W-32ER, CP1W-32ET, and CP1W-32ET1 are advanced 32-point output unit modules engineered for reliable industrial automation. These modules expand the output capability of CP1H, CP1L, and CP1E CPU units, offering relay or transistor switching to match diverse load requirements. Whether you need robust relay contacts for heavy-duty machinery or high-speed transistor outputs for servo drives and fast actuators, these modules deliver consistent performance in compact packaging. Each unit is 100% original and new, ensuring seamless integration and long service life in your control system.

Model	Output Type	Number of Outputs	Rated Voltage	Max. Switching Capacity	Response Time
CP1W-32ER	Relay	32	24 VDC / 250 VAC	2 A per point, 8 A per common	10 ms (ON/OFF)
CP1W-32ET	Transistor (Sinking)	32	24 VDC (PNP)	0.5 A per point	1 ms max (resistive load)
CP1W-32ET1	Transistor (Sourcing)	32	24 VDC (NPN)	0.5 A per point	1 ms max (resistive load)

Relay Output (CP1W-32ER): 32 independent relay contacts with mechanical isolation, rated for 2 A at 24 VDC or 250 VAC. Ideal for switching motors, valves, and other inductive loads. Common terminals are grouped for easy wiring.
Transistor Sinking Output (CP1W-32ET): PNP (sinking) configuration with 0.5 A per output, designed for high-speed switching of DC loads such as indicator lights and small solenoids. Short-circuit protection included.
Transistor Sourcing Output (CP1W-32ET1): NPN (sourcing) configuration, also 0.5 A per output, providing negative logic switching for compatibility with certain sensor and actuator interfaces.
Common Wiring: Each model features 4 common terminals (8 outputs per common) to simplify power distribution and reduce wiring errors.
LED Indicators: Dedicated green LEDs for each output channel provide immediate visual status for troubleshooting and commissioning.
Environmental Ratings: Operating temperature range 0 to 55°C, storage -20 to 75°C, with 10% to 90% non-condensing humidity tolerance.
Dimensions: Compact 90 mm (W) x 80 mm (H) x 70 mm (D) for easy mounting on DIN rails within CP-series expansion racks.
Certifications: CE, UL, and cUL listed for global compliance and safety in industrial environments.
