ABB CI592-CS31 S500 Interface Module

Series#: ABB

Product Details

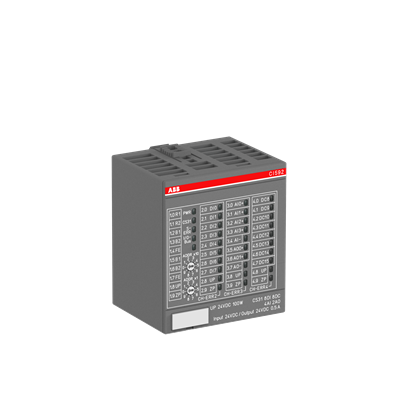

ABB S500 CI592-CS31 CS31 slave and mixed-I/O interface module.
Eight fixed 24 V DC digital inputs.
Eight further 24 V DC digital channels configurable as inputs or outputs.
Four analog inputs for voltage, current or resistance-temperature sensing as configured.
Two analog outputs for voltage or current signals.
Analog resolution is 12 bits plus sign for inputs and 12 bits plus sign for outputs.
Rotary switches set the CS31 address; on-module LEDs show channel and status information.

WhatsApp Inquiry

Specification

Installation Manual

Overview

The ABB CI592-CS31 is a CS31-bus slave with mixed digital and analog I/O. Its configurable eight-channel digital group can be assigned as inputs or outputs to fit the installation.

Technical specifications

Specification	Value
Product family	ABB S500 / CS31
Model	CI592-CS31
Network role	CS31 bus slave
Fixed digital inputs	8 × 24 V DC
Configurable digital I/O	8 × 24 V DC, assigned as DI or DO
Configurable digital output rating	0.5 A per output
Analog inputs	4 × voltage/current/RTD, configuration dependent
Analog input resolution	12 bits plus sign
Analog outputs	2 × voltage/current
Analog output resolution	12 bits plus sign
Maximum physical signal channels	22, counting the 8 configurable channels once
CS31 address setting	Two rotary switches
Status indication	System and per-channel LEDs

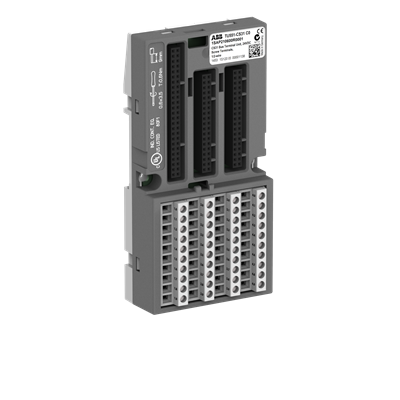

Mechanical installation	Compatible terminal unit and DIN rail
Isolation	Bus interface galvanically isolated from module circuitry

Integration and replacement notes

Set the CS31 address and the eight configurable digital channels to match the existing project. Select each analog input range and sensor wiring deliberately; an RTD connection is not equivalent to a voltage or current input. Confirm terminal-unit wiring and process voltage before commissioning.
