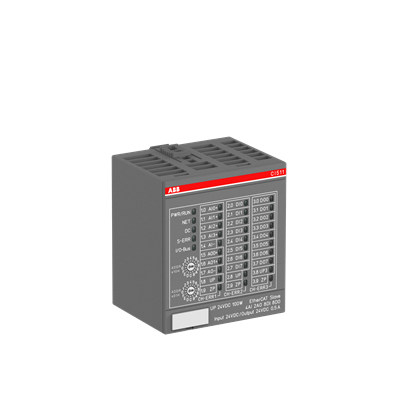

ABB CI511-ETHCAT S500 Interface Module

Series#: ABB

Product Details

ABB CI511-ETHCAT – High-performance S500 Interface Module for distributed automation.
Integrated EtherCAT slave with 4 AI (U, I, RTD), 2 AO (U, I), 8 DI (24 VDC), and 8 DO (24 VDC, 0.5 A).
Built-in cam switch functionality for precise motion and sequence control.
Compact IP20 design with 2 Industrial Ethernet ports for seamless network integration.
Lightweight (0.138 kg) and space-saving (67.5 x 76 x 62 mm) for efficient cabinet mounting.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The ABB CI511-ETHCAT is a versatile S500 interface module designed for distributed I/O applications in modern industrial automation. As an EtherCAT slave, it provides a powerful combination of analog and digital I/O, including 4 analog inputs (voltage, current, RTD), 2 analog outputs, 8 digital inputs at 24 VDC, and 8 digital outputs rated at 0.5 A. The integrated cam switch functionality enables precise position-based control, making the CI511-ETHCAT ideal for packaging, material handling, and assembly line environments. With two Industrial Ethernet interfaces and a rugged IP20 housing, this module ensures reliable real-time communication and easy integration into existing EtherCAT networks.

Specification	Detail
Product Type	CI511-ETHCAT Interface Module
System	ABB S500 Distributed Automation I/Os
Communication Protocol	EtherCAT Slave
Analog Inputs	4 (Voltage, Current, RTD)
Analog Outputs	2 (Voltage, Current)
Digital Inputs	8 (24 VDC, type 3)
Digital Outputs	8 (Transistor, 24 VDC, 0.5 A per channel)
Digital Configurable I/Os	0
Hardware Interfaces	2 x Industrial Ethernet (RJ45)
Additional Interfaces	None (RS-232/422/485, USB, Wireless: 0)
Function	EtherCAT slave with cam switch functionality
Input Voltage Type	DC
Supply Voltage	20.4 … 28.8 V DC
Input Current (typical)	5 mA
Output Voltage Type	DC
Output Voltage (max)	20.4 … 28.8 V
Delay Time (τ)	0.1 … 32 ms (configurable)
Degree of Protection	IP20
Product Net Weight	0.138 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight (packaged)	0.162 kg
Package Level 1 Dimensions (L x W x H)	84 x 71 x 72 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit	Piece
Made To Order	No
eClass	27-24-26-07
ETIM 8	EC001604 - Fieldbus, decentr. periphery - communication module
UNSPSC	32151705
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Business
