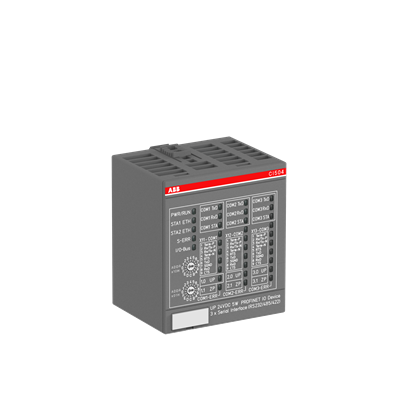

ABB CI504-PNIO S500 Interface Module

Series#: ABB

Product Details

ABB CI504-PNIO – High-performance PROFINET IO RT interface module for the S500 distributed automation system.
Equipped with 3 serial interfaces: RS232, RS422, and RS485 for versatile gateway functionality.
Compact design with IP20 protection, ideal for control cabinet integration in industrial environments.
Low power consumption: 24 V DC input with only 5 mA current draw, ensuring energy efficiency.
Robust transistor output with 0.5 A capacity and adjustable delay time from 0.1 to 32 ms.
Lightweight at just 0.139 kg net weight, simplifying installation and logistics.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The ABB CI504-PNIO is a dedicated PROFINET IO RT device and gateway module designed for the ABB S500 distributed automation platform. It bridges PROFINET networks to legacy serial devices via three independent interfaces: RS232, RS422, and RS485. With two industrial Ethernet ports for daisy-chain topology support and no on-board I/O channels, it functions purely as a communication gateway. Its 24 V DC supply, low current consumption (5 mA), and compact footprint (67.5 x 76 x 62 mm) make it an energy-efficient and space-saving choice for modern industrial control systems. The module is built for reliability in harsh factory floor conditions, with IP20 protection and a wide operating temperature range typical of ABB S500 components.

Parameter	Specification
Product Type	CI504-PNIO – S500 Interface Module
Function	PROFINET IO RT device, gateway with 3 serial interfaces (RS232, RS422, RS485)
Hardware Interfaces	2 x Industrial Ethernet; 3 x Serial (RS232/422/485); 0 x Parallel, USB, Wireless
Analog Inputs	0
Analog Outputs	0
Digital Inputs	0
Digital Outputs	0
Configurable I/Os	0
Input Voltage Type	DC
Input Voltage (Uin)	24 V DC
Input Current	5 mA
Supply Voltage Range	20.4 … 28.8 V DC
Output Type	Transistor
Output Voltage Type	DC
Output Current	0.5 A
Output Voltage Maximum	20.4 … 28.8 V
Delay Time (τ)	0.1 … 32 ms
Degree of Protection	IP20
Product Net Weight	0.139 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight	0.167 kg
Package Level 1 Dimensions (L x H x W)	84 x 72 x 71 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Product Main Type	CI504
Product Name	Distributed Automation I/Os
CN8 Code	85389091
eClass	27-24-26-07
ETIM 8	EC001604 – Fieldbus, decentr. periphery – communication module
UNSPSC	32151705
SCIP	3469f7c4-f1cc-42ae-882d-677bb778a41f Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
