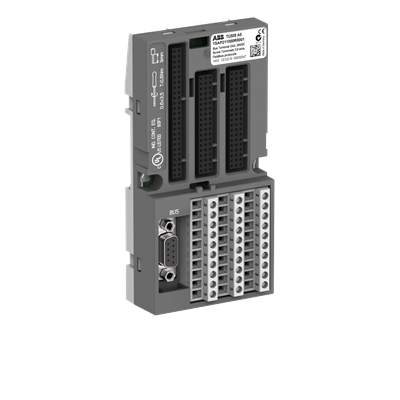

ABB TU509 S500 Interface Terminal Unit

Series#: ABB

Product Details

ABB TU509 – S500 Interface Terminal Unit for reliable serial communication in industrial automation systems.
Equipped with screw terminals and a D-Sub 9 connector for robust and flexible wiring of serial protocols.
Compact design with IP20 protection, ideal for control cabinet installation in demanding environments.
Lightweight and space-saving: net weight of 0.216 kg and dimensions of 67.5 x 135 x 28 mm.
Compatible with ABB S500 I/O system, ensuring seamless integration and high performance.
Suitable for both B2B and OEM applications, with a minimum order quantity of 1 piece.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The ABB TU509 is a high-performance interface terminal unit specifically designed for the S500 automation platform. It serves as a critical link for serial protocol communication, featuring both screw terminals and a D-Sub 9 connector to simplify field wiring. Built for industrial environments, this unit offers a robust IP20-rated enclosure and is engineered for long-term reliability. Whether used in new installations or as a replacement part, the ABB TU509 ensures seamless data transfer and system integrity.

Attribute	Specification
Product Type	Interface Terminal Unit
Model Number	TU509
Function	For serial protocols; Screw terminals; D-Sub 9 connector
Degree of Protection	IP20
Product Net Weight	0.216 kg
Product Net Depth / Length	28 mm
Product Net Height	135 mm
Product Net Width	67.5 mm
Gross Weight	0.249 kg
Package Level 1 Depth / Length	147 mm
Package Level 1 Height	40 mm
Package Level 1 Width	78 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Selling Unit of Measure	piece
Made To Order	No
Product Main Type	TU509
Product Name	TU509:S500,Bus-Klemm.block,Sch
CN8	85389091
eClass	27-24-22-92
ETIM 8	EC000810 - PLC mounting rack
UNSPSC	32151703
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
