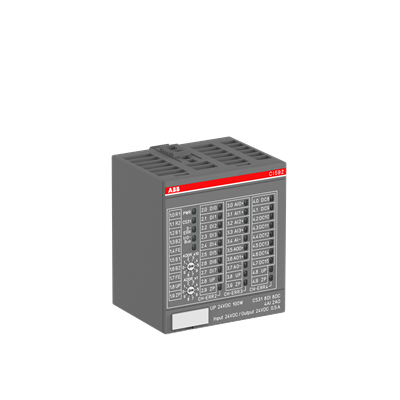

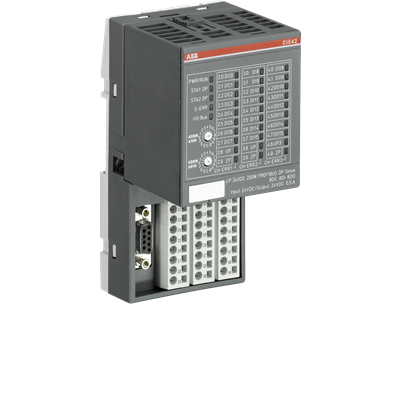

The ABB CI542-DP is a high-performance S500 interface module designed for seamless integration into PROFIBUS DP networks. As a distributed automation I/O solution, this module combines 8 digital inputs, 8 digital outputs, and 8 configurable I/O channels in a single, space-saving unit. The CI542-DP is engineered for demanding industrial environments, offering precise control with transistor outputs rated at 0.5 A per channel and an input current of just 5 mA. Its RS-485 interface ensures robust communication, while the adjustable input delay (0.1…32 ms) allows for fine-tuning in time-critical applications. With a net weight of only 0.13 kg and compact dimensions (67.5 mm width, 76 mm height, 62 mm depth), this module is ideal for decentralized automation architectures. The CI542-DP operates on a 24 VDC supply (20.4…28.8 VDC range) and is protected to IP20, making it suitable for installation in standard control panels.
| Parameter |
Specification |
| Product Type |
CI542-DP S500 Interface Module |
| Function |
PROFIBUS DP slave with integrated digital I/O |
| Communication Interface |
1 x RS-485 (PROFIBUS DP) |
| Digital Inputs |
8 (24 VDC, 5 mA each) |
| Digital Outputs |
8 (Transistor, 24 VDC, 0.5 A each) |
| Configurable Digital I/O |
8 (24 VDC, 0.5 A each) |
| Analog Inputs/Outputs |
0 / 0 |
| Input Voltage Type |
DC |
| Input Voltage (Uin) |
24 VDC |
| Input Current |
5 mA per channel |
| Supply Voltage |
20.4…28.8 VDC |
| Output Voltage Maximum |
20.4…28.8 VDC |
| Output Current per Channel |
0.5 A |
| Delay Time (τ) |
0.1…32 ms (adjustable) |
| Degree of Protection |
IP20 |
| Product Net Weight |
0.13 kg |
| Product Net Dimensions (W x H x D) |
67.5 mm x 76 mm x 62 mm |
| Package Level 1 Dimensions (L x W x H) |
84 mm x 71 mm x 72 mm |
| Package Level 1 Gross Weight |
0.154 kg |
| Packaging Unit |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Made To Order |
No |
| HS Code (CN8) |
85389091 |
| eClass (V12.0) |
27-24-26-07 |
| ETIM 8.0 |
EC001604 - Fieldbus, decentr. periphery - communication module |
| UNSPSC |
32151705 |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C/B2B |
Business To Business |
| SCIP Number |
233d78fe-0930-4291-82c6-6b1e1cc69d44 (Germany) |
