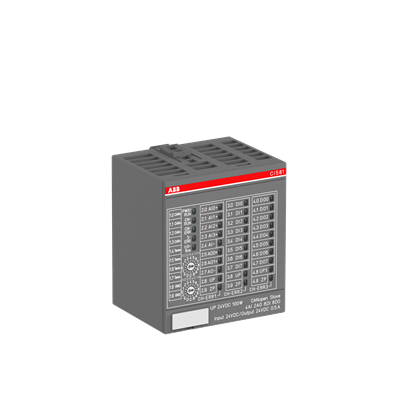

ABB CI581-CN: S500 Interface Module – A compact CANopen slave for distributed automation I/O.
Integrated I/O: 4 analog inputs (U, I, RTD), 2 analog outputs (U, I), 8 digital inputs (24 VDC), and 8 digital outputs (24 VDC, 0.5 A).
Robust 24 VDC operation with IP20 protection, ideal for industrial control cabinets.
Ultra-compact form factor: 67.5 mm x 76 mm x 62 mm, net weight only 0.137 kg.
Flexible digital input delay: 0.1 to 32 ms, configurable for noise filtering or fast response.
Compliant with eClass 27-24-26-07 and ETIM 8 (EC001604) standards.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The ABB CI581-CN is a highly integrated S500 interface module designed to serve as a CANopen slave in distributed automation networks. This module combines 4 analog inputs (supporting voltage, current, and RTD signals), 2 analog outputs (voltage or current), 8 digital inputs at 24 VDC, and 8 digital outputs rated at 24 VDC and 0.5 A per channel. Its compact footprint and IP20 enclosure make it an excellent choice for space-constrained control panels in manufacturing, process, and building automation applications. With a supply voltage range of 20.4 to 28.8 VDC and a typical input current of just 5 mA, the CI581-CN delivers reliable performance while minimizing power consumption. This module is engineered for seamless integration into ABB’s S500 I/O system, offering a cost-effective solution for mixed-signal fieldbus connectivity.

Parameter	Value
Product Type	CI581-CN (S500 Interface Module)
Function	CANopen slave; 4 AI: U, I, RTD; 2 AO: U, I; 8 DI: 24 VDC; 8 DO: 24 VDC, 0.5 A
Number of Hardware Interfaces	Industrial Ethernet: 0; Other: 1 (CANopen); Parallel: 0; RS-232: 0; RS-422: 0; RS-485: 0; Serial TTY: 0; USB: 0; Wireless: 0
Analog Inputs	4 (configurable for voltage, current, or RTD)
Analog Outputs	2 (voltage or current)
Digital Inputs	8 (24 VDC)
Digital Outputs	8 (transistor, 24 VDC, 0.5 A each)
Digital Configurable I/Os	0
Input Voltage Type	DC
Input Voltage (Uin)	24 VDC
Input Current	5 mA
Delay Time (τ)	0.1 … 32 ms
Output Type	Transistor
Output Voltage Type	DC
Output Current	0.5 A per channel
Output Voltage Maximum	20.4 … 28.8 VDC
Supply Voltage	20.4 … 28.8 VDC
Degree of Protection	IP20
Product Net Weight	0.137 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight	0.161 kg
Package Level 1 Depth / Length	84 mm
Package Level 1 Height	72 mm
Package Level 1 Width	71 mm
Package Level 1 Units	1 carton
CN8 Code	85389091
Invoice Description	Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A (CI581-CN)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Product Main Type	CI581
Product Name	Distributed Automation I/Os
eClass	27-24-26-07
ETIM 8	EC001604 - Fieldbus, decentr. periphery - communication module
UNSPSC	32151705
SCIP	9378345f-4dc7-415d-b557-0b3da711438f Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
