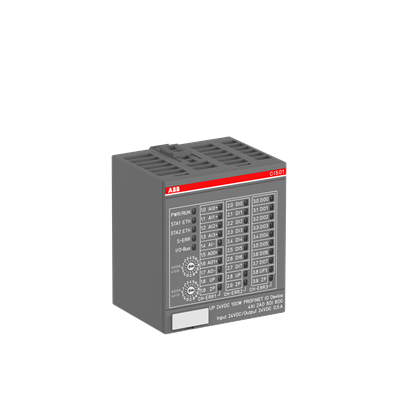

ABB CI501-PNIO S500 Interface Module

Series#: ABB

Product Details

ABB CI501-PNIO – High-performance PROFINET IO RT interface module for distributed automation.
Integrated I/O: 4 analog inputs (U, I, RTD), 2 analog outputs (U, I), 8 digital inputs (24 VDC), 8 digital outputs (24 VDC, 0.5 A).
Compact S500 form factor with IP20 protection, ideal for space-constrained control cabinets.
Real-time Ethernet connectivity via 2 Industrial Ethernet ports for seamless network integration.
Robust 24 VDC operation with input current of 5 mA and configurable delay time from 0.1 to 32 ms.
Lightweight (0.136 kg) and easy to install – dimensions: 67.5 mm (W) x 76 mm (H) x 62 mm (D).
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The ABB CI501-PNIO is a versatile S500 interface module engineered for PROFINET IO RT device applications, combining analog and digital I/O in a single, compact unit. Designed for distributed automation systems, this module delivers 4 analog inputs supporting voltage, current, and RTD measurements, alongside 2 analog outputs for voltage or current signals. With 8 digital inputs and 8 digital outputs rated at 24 VDC and 0.5 A, it provides a balanced solution for mixed signal processing. The module features two Industrial Ethernet interfaces for real-time communication, operates on a 24 VDC supply (20.4–28.8 V range), and offers configurable input delay settings from 0.1 to 32 ms. Housed in an IP20-rated enclosure, the CI501-PNIO is built for reliable performance in industrial environments, with a net weight of just 0.136 kg and compact dimensions of 67.5 x 76 x 62 mm.

Attribute	Specification
Product Type	CI501-PNIO Interface Module (S500 Series)
Function	PROFINET IO RT device with integrated I/O
Analog Inputs	4 (Voltage, Current, RTD)
Analog Outputs	2 (Voltage, Current)
Digital Inputs	8 (24 VDC, Type 3)
Digital Outputs	8 (24 VDC, 0.5 A, Transistor)
Number of Hardware Interfaces	2 Industrial Ethernet (PROFINET)
Input Voltage (Uin)	24 VDC (20.4–28.8 V)
Input Current	5 mA
Delay Time (τ)	0.1–32 ms (configurable)
Output Voltage Type	DC
Output Current	0.5 A per channel
Output Voltage Maximum	20.4–28.8 V
Degree of Protection	IP20
Supply Voltage	20.4–28.8 V DC
Product Net Weight	0.136 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight	0.16 kg
Package Level 1 Dimensions	84 x 72 x 71 mm
Package Level 1 Units	1 carton
Selling Unit of Measure	Piece
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Made To Order	No
CN8 (Customs Tariff)	85389091
eClass	27-24-26-07
ETIM 8	EC001604 - Fieldbus, decentr. periphery - communication module
UNSPSC	32151705
SCIP	a307b9ae-b352-4d4d-8ebf-99c63e467033 Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
